How NOT to fry your Arduino - Common Arduino mistakes #1

TL;DR

Learn how to prevent frying your Arduino with essential tips and power management techniques.

Transcript

welcome everyone in this video I'm going to show you the most common mistakes that people make before they fry their Arduino so there are multiple fundamental issues that beginners Overlook uh which causes them to dist their microcontrollers and actually most of these issues could be simply solved by reading the data sheet and the specifications wh... Read More

Key Insights

• 🫠 Beginners often overlook component specifications, leading to improper usage and damage; reading datasheets can prevent this.
• 🧡 The Arduino is commonly powered through USB or a DC jack, with recommended voltage ranges to avoid overheating.
• ✋ 500mA is the maximum current draw from USB, while external supplies can provide higher currents, emphasizing the need for careful planning.

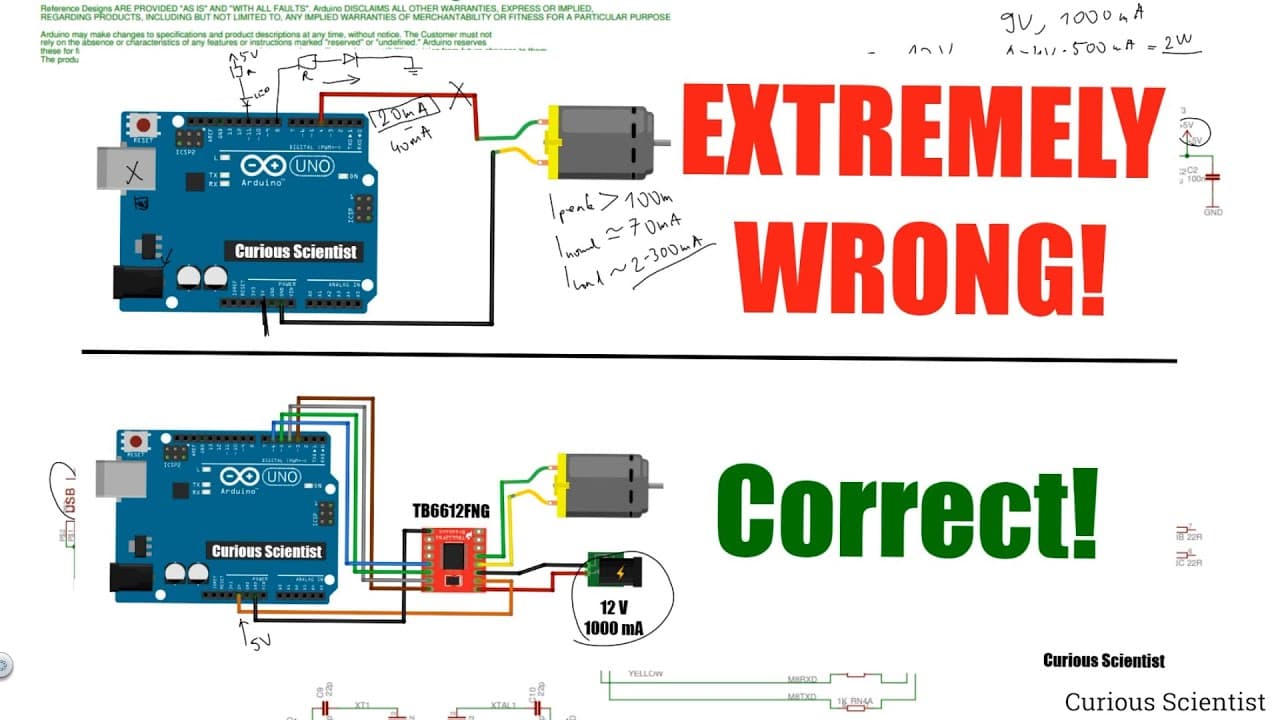

• ✊ It is critical to avoid powering high-current devices like servos directly from the Arduino; instead, use external power.
• 👻 Using dedicated motor drivers protects the Arduino from excessive current while allowing for speed and direction control.
• ⚡ Understanding voltage regulator functions can help prevent thermal overload from improper input voltage levels.
• 💐 Always ensure proper grounding between components to create effective electrical pathways for signals and current flow.

Questions & Answers

Q: What are some common reasons people fry their Arduino?

Common reasons for frying an Arduino include providing too much current through the device, neglecting the specifications listed in datasheets, and improper component connections. For example, exceeding the current limit of the power supply or connecting high-load components improperly can lead to overheating or damaging the microcontroller.

Q: Why is it important to read the datasheet of components used with Arduino?

Reading the datasheet is crucial because it provides essential information regarding voltage, current ratings, and operational limits for components. This knowledge helps in preventing mistakes that could lead to overheating the Arduino or damaging peripheral components. Understanding these specifications informs how to set up circuits safely.

Q: How should one power servos correctly when using Arduino?

Servos should be powered from an external power supply rated for their voltage needs, rather than directly from the Arduino's 5V pin. This is because servos can draw significant current, which might exceed the Arduino's limits. Proper connection requires ensuring that ground lines are shared between the Arduino and the servo power to provide a complete circuit.

Q: What happens when the wrong voltage is provided to an Arduino?

Providing too high a voltage can overheat the voltage regulator on the Arduino, potentially leading to failure or permanent damage. The recommended input voltage is typically between 7-12 volts; going beyond this can cause the regulator to dissipate excess energy as heat, leading to breakdowns.

Q: How can I create a power budget for my Arduino project?

To create a power budget, sum up the current consumption of all components to be used. Ensure the total does not exceed 450mA for USB power or 750mA for external adapter power. This helps to prevent exceeding current limits, thus safeguarding the Arduino and ensuring efficient operation.

Q: What are the dangers of connecting motors directly to GPIO pins?

Connecting motors directly to GPIO pins can draw excessive current, potentially exceeding the rated limits of 20-40mA, risking damage to the microcontroller. Motors can briefly draw much higher currents during startup, which can lead to the Arduino’s GPIO pin burning out if not properly managed.

Q: Why is it critical to maintain proper ground connections in circuits?

Proper ground connections are essential for closing the electrical circuit, allowing the return path for current to complete the flow. Without shared grounds between the Arduino and peripheral components, signals may not function correctly, leading to erratic behavior or failure to operate.

Q: What are some preventive measures to avoid frying the Arduino?

Preventive measures include accurately assessing the current ratings of all components, using appropriate external power supplies for high-load devices, ensuring correct voltage polarity, and double-checking connections to avoid shorts that could damage the circuit.

Summary & Key Takeaways

• This video addresses common mistakes made by beginners that can lead to frying their Arduino microcontrollers, advising viewers to read datasheets carefully.

• The speaker explains the importance of power management, detailing the correct and incorrect methods to power the Arduino to avoid overheating components and damaging the board.

• Emphasizing the use of dedicated power supplies and proper grounding practices, the video outlines how to operate servos and motors safely without exceeding power limits.
