[Eng Sub] Passive Components

TL;DR

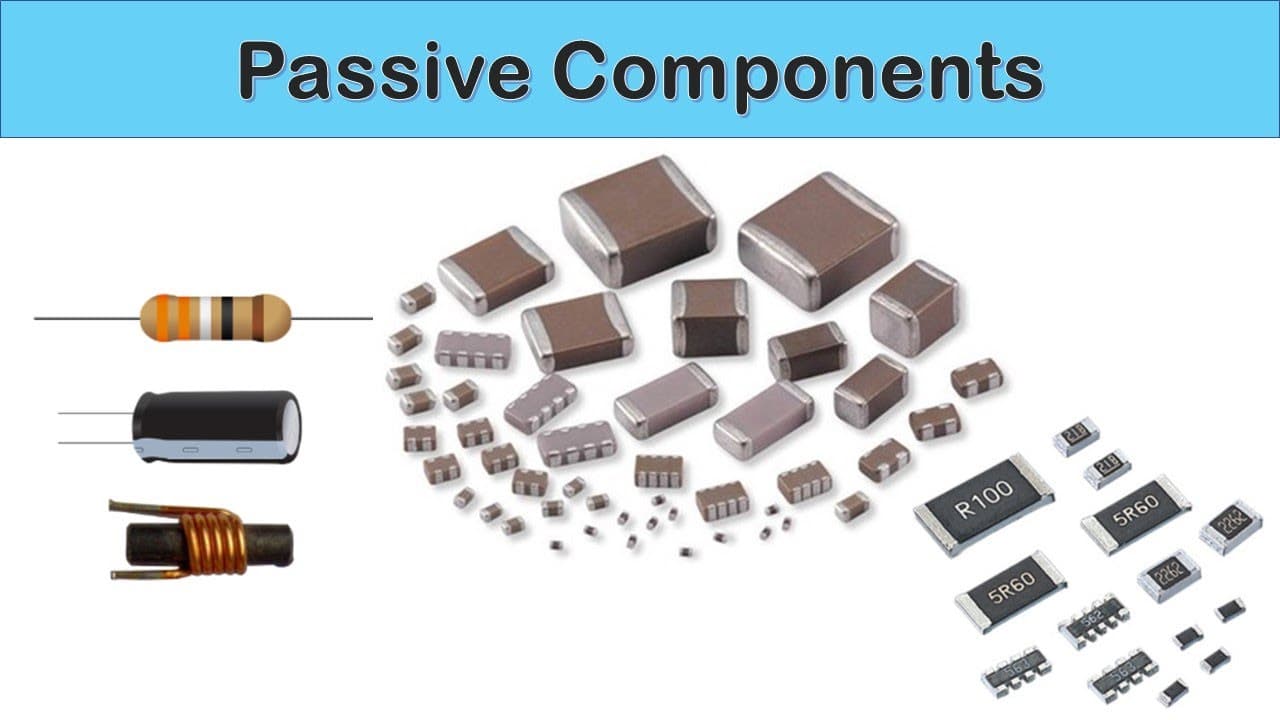

Overview of passive components like resistors, capacitors, and inductors.

Transcript

Hello everyone, welcome to Semicon Talk! Today’s topic is passive components and those are also called just as passives. Let’s talk about it! In electronic components there are 2 major categories, active components and passive components. Active components include transistor, diode, IC, and others. Passive components include resistor, inductor, cap... Read More

Key Insights

• Passive components, unlike active ones, do not require electrical energy to operate and include resistors, capacitors, and inductors.
• In smartphone applications, SMD (Surface-Mount Device) types of passive components are preferred due to their compact size.
• Chip capacitors and inductors have similar appearances but different internal structures, involving stacked dielectric and conductive layers.
• Chip resistors are distinguished by their resistor and conductor elements, widely used in various electronic applications.
• The semiconductor industry often uses inch code over metric code for sizing passive components, which can lead to confusion.
• Passive components are essential in devices like smartphones and electric cars, visible on boards of products like iPhones and Tesla cars.
• The structure of a chip capacitor includes dielectric layers and electrodes, similar to a parallel plate capacitor but in a stacked form.
• Major manufacturers of SMD passive components include Murata, SEMCO, Taiyo Yuden, Yageo, Walsin, and TDK.

Questions & Answers

Q: What defines a passive component in electronics?

A passive component is an electronic component that does not require electrical energy to operate. These components include resistors, capacitors, and inductors, which are essential for various electronic applications. They differ from active components, like transistors and diodes, which need external energy sources to function.

Q: Why are SMD types of passive components popular in smartphones?

SMD (Surface-Mount Device) types of passive components are popular in smartphones due to their compact size, which is essential for fitting into the limited space of modern electronic devices. Their small form factor allows for more efficient use of space on circuit boards, making them ideal for applications where size is a constraint.

Q: How do chip capacitors and inductors differ in structure?

Chip capacitors and inductors, while similar in appearance, differ in structure. Chip capacitors have stacked dielectric and conductive layers, forming a parallel plate structure. Chip inductors, however, feature a spiral conductive pattern with electrodes connected vertically by vias, mimicking a coil inductor's structure.

Q: What is the significance of inch and metric codes in passive components?

Inch and metric codes are used to size passive components, with the inch code being more popular in the semiconductor industry. These codes help standardize component sizes but can lead to confusion as the same 4-digit number can represent different sizes in inch and metric systems, requiring careful attention.

Q: Where can passive components be found in electronic devices?

Passive components like chip capacitors, inductors, and resistors can be found on electronic boards of devices such as smartphones and electric cars. For example, they are visible on the boards of Apple iPhones and Tesla vehicles, playing crucial roles in the devices' electronic systems and functionality.

Q: What are the key elements of a chip capacitor's structure?

A chip capacitor's structure includes dielectric layers and electrodes as key elements. It is similar to a parallel plate capacitor but involves stacked layers for increased capacitance. Additional elements include terminals and protective coatings, ensuring the component's functionality and durability in electronic circuits.

Q: Who are the major manufacturers of SMD passive components?

Major manufacturers of SMD passive components include Murata, SEMCO, Taiyo Yuden, Yageo, Walsin, and TDK. These companies play a significant role in the electronics industry, providing essential components for a wide range of applications, from consumer electronics to automotive systems.

Q: What role do passive components play in electronic systems?

Passive components are crucial in electronic systems, providing functions such as resistance, capacitance, and inductance without needing a power source. They help manage current flow, store energy, and filter signals, making them indispensable in designing and operating electronic circuits and devices.

Summary & Key Takeaways

• Passive components such as resistors, capacitors, and inductors are crucial in electronics, operating without electrical energy. They are commonly used in smartphones and electric cars, with SMD types preferred for their small size.

• Chip capacitors and inductors, despite looking similar, have unique structures involving stacked layers. Resistors, capacitors, and inductors are identifiable on electronic boards, such as those in iPhones and Tesla vehicles.

• Sizing of passive components can be confusing due to the use of inch and metric codes. Major producers of these components include companies like Murata and TDK, highlighting their importance in the electronics industry.
