ROBOFORMING: The Future of Metalworking? (I Had NO IDEA This Was Possible) - Smarter Every Day 290

TL;DR

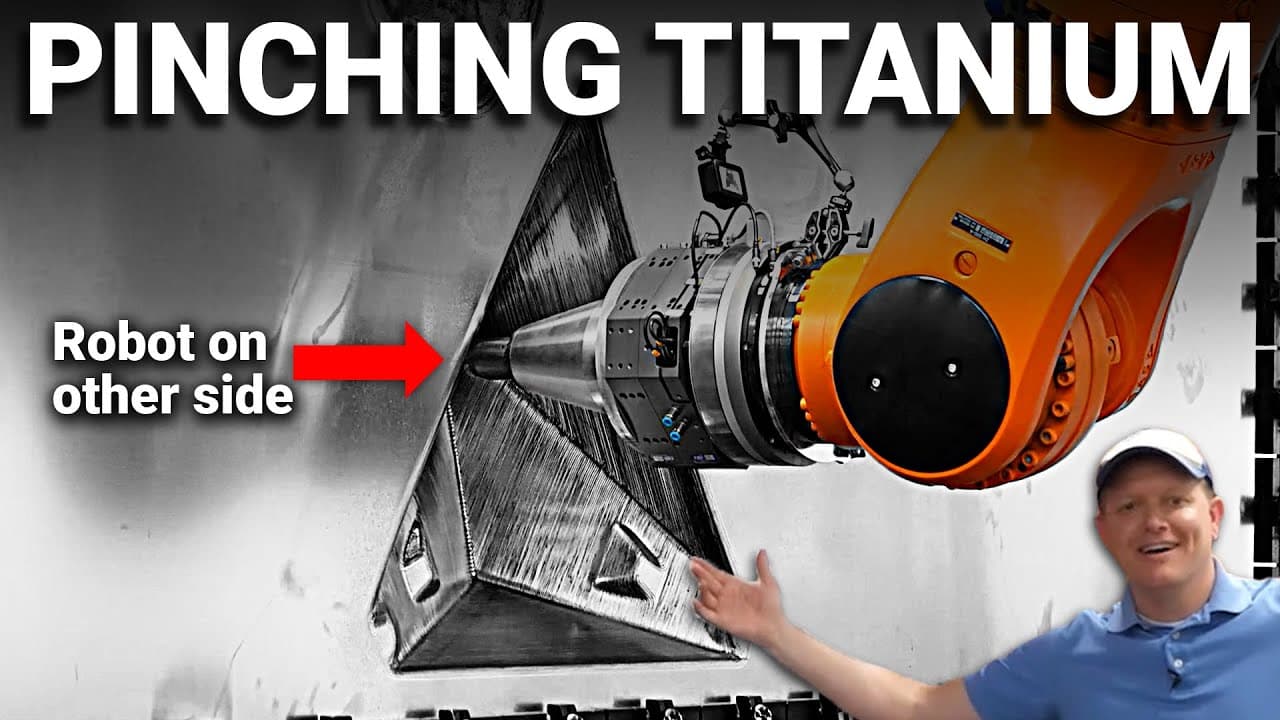

Incremental sheet forming, or Roboforming, is an innovative manufacturing process that allows for quick iteration and creation of complex metal parts using robots and specialized end effectors.

Transcript

My brain's on fire. Hey, it's me, Destin. Welcome back to Smarter Every Day. We are right in the middle of a manufacturing deep dive series. And you may recall in a previous video, we went to a progressive metal stamping factory, and this place was incredible. They took coils of metal and they rolled them through these big presses with dyes and the... Read More

Key Insights

• 🤘 Roboforming offers a flexible and efficient alternative to traditional metal stamping processes.
• 🥳 The process allows for quick iteration and production of parts without the need for costly molds.
• 💁 Accurate control of forces, along with specialized end effectors and tool coatings, enables the formation of complex and difficult-to-form materials.
• 🎭 Boundary condition effects and material deflection during forming must be carefully accounted for in the software to achieve precise part geometries.
• 💁 Roboforming has potential applications in industries such as aerospace, where complex geometries and difficult-to-form materials are common.
• 😒 The use of robots and advanced control systems ensures accuracy and precision in forming metal sheets.

Questions & Answers

Q: How does incremental sheet forming work?

Incremental sheet forming uses specialized end effectors to touch and deform metal sheets, creating complex shapes. The position and force applied by the end effectors determine the deformation of the metal.

Q: What are the advantages of Roboforming over traditional metal stamping?

Roboforming allows for quick iteration and production of parts without the need for expensive molds. It is particularly useful for development and low rate initial production. Additionally, Roboforming enables the formation of complex and customized geometries.

Q: How do the robots used in Roboforming maintain accuracy under dynamic loads?

The robots used in Roboforming are calibrated and adjusted to compensate for deflection caused by the application of high forces. Control systems continuously monitor and adjust the robot's trajectory to maintain accuracy and precision.

Q: Can Roboforming be used with difficult-to-form materials like titanium?

While forming difficult materials like titanium is challenging, Roboforming has the potential to enable the formation of such materials. The ability to accurately control forces and implement specialized tool coatings can help overcome the challenges associated with forming high-temperature alloys.

Summary & Key Takeaways

• Incremental sheet forming, also known as Roboforming, is a process that deforms metal sheets using special end effectors to create complex shapes.

• The process allows for fast iteration and production of parts without the need for expensive molds.

• By using robots and advanced software, Roboforming can accurately deform metal sheets and create parts with high precision.
