The Big Misconception About Electricity

TL;DR

Electrical energy is transmitted through oscillating electric and magnetic fields, not by the flow of electrons.

Transcript

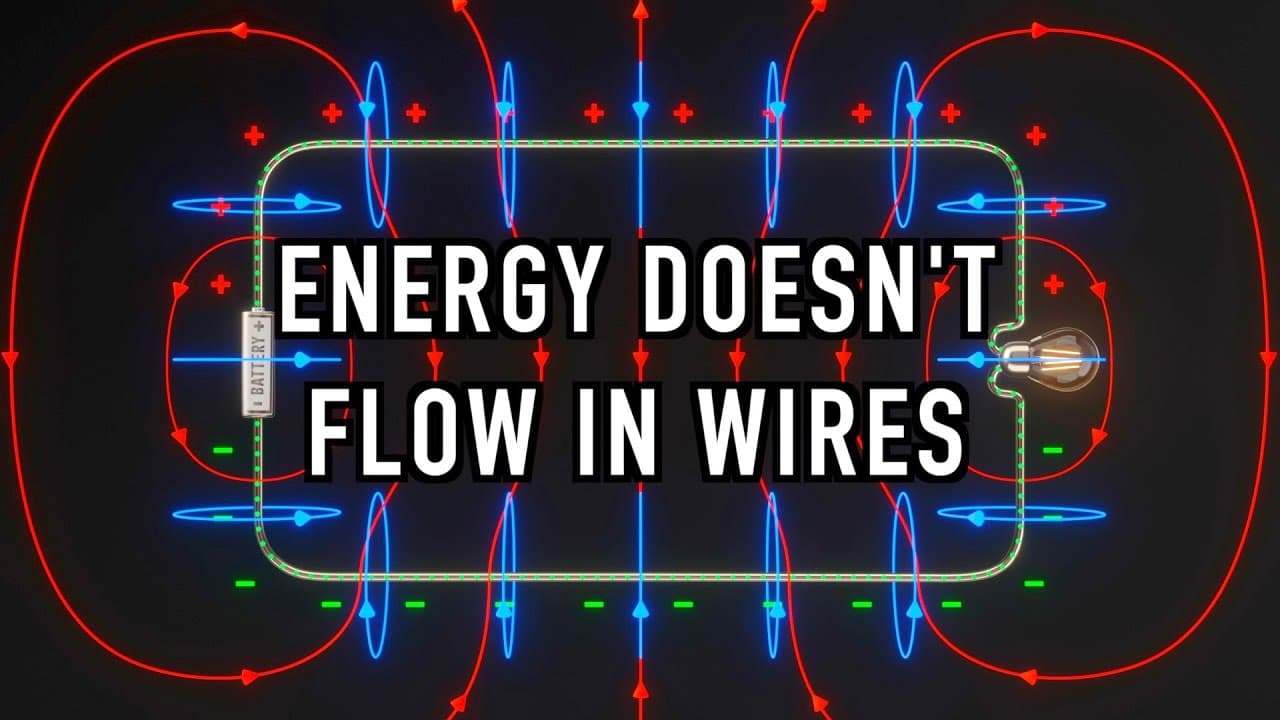

This video was sponsored by Caséta by Lutron. Imagine you have a giant circuit consisting of a battery, a switch, a light bulb, and two wires which are each 300,000 kilometers long. That is the distance light travels in one second. So, they would reach out half way to the moon and then come back to be connected to the light bulb, which is one meter... Read More

Key Insights

• 💐 Electrical energy is transmitted through oscillating electric and magnetic fields, not by the flow of electrons.
• 💐 The Poynting vector, calculated using Maxwell's equations, describes the flow of energy in electromagnetic fields.
• 🥺 The misconception that energy is transmitted by the flow of electrons has led to misunderstandings in the field of electricity.
• 🧑‍🔬 Undersea telegraph cables initially failed because scientists did not realize that energy was carried by the fields surrounding the wires.
• 🫥 Power lines are suspended high up to prevent interference from conductive materials and to ensure efficient energy transmission.
• 💐 Energy flows in one direction from the power source to the device, regardless of the direction of electron flow.
• 👻 Electric and magnetic fields carry energy, allowing for the transmission of electrical energy over long distances.

Questions & Answers

Q: How does electrical energy reach our homes from power plants?

Electrical energy is transmitted through power lines via oscillating electric and magnetic fields, not by the flow of electrons. The energy flows through space surrounding the conductors.

Q: Why do undersea telegraph cables initially fail?

The initial failure of undersea telegraph cables was due to the misunderstanding of how energy is transmitted. Scientists believed it was carried through the conductors, but in reality, it is carried by the fields surrounding the wires.

Q: How fast does electrical energy travel in a circuit?

Electrical energy travels at the speed of light through the oscillating electric and magnetic fields surrounding the wires in a circuit. This means that the energy can reach its destination almost instantaneously.

Q: What is the Poynting vector and how is it calculated?

The Poynting vector is used to describe the energy flux in electric and magnetic fields. It is calculated using the cross product of the electric and magnetic fields, multiplied by a constant factor. It represents the direction and magnitude of the energy flow.

Summary & Key Takeaways

• Electrical energy is not carried by the flow of electrons, but by the oscillating electric and magnetic fields surrounding the wires in a circuit.

• The Poynting vector, calculated using Maxwell's equations, describes the energy flow in electromagnetic fields.

• Undersea telegraph cables failed initially because scientists believed energy was transmitted through the conductor, but it was actually carried by the fields surrounding the wires.
