TL;DR

A tractor pull works by having each tractor pull a class-specific sled as far as possible before resistance bogs it down in the dirt. As the sled moves, a wheel-driven transmission advances a weight box; when the box reaches a limit switch, wedges press into the ground and capture dirt. Read on to understand how gearing, track maintenance, and tractor classes shape the competition.

Transcript

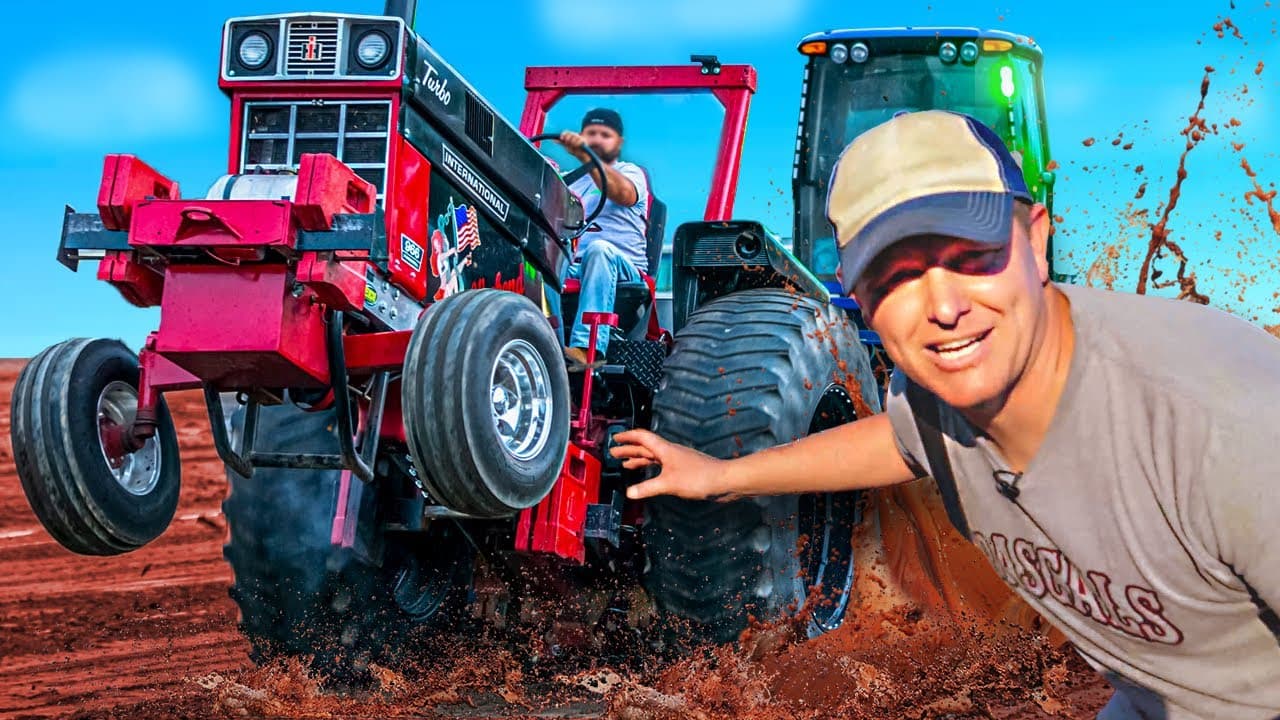

this is an absolutely preposterous tractor and it's pulling something all these people are in these stands to watch what's called a tractor pull because it's awesome the winner is whoever pulls this sled the farthest before getting bogged down in the dirt let's learn about this incredibly complex physics problem from people you wouldn't expect let'... Read More

Key Insights

• 🏋️ Tractor pulls involve intricate physics, including torque, weight distribution, and traction control.
• 🖐️ The weight box on the sled plays a crucial role in increasing resistance and testing the power of the tractors.
• 🏋️ Balancing a tractor's weight and torque is essential for achieving optimal traction and preventing accidents.
• 👣 The condition of the dirt track affects traction and the ability of tractors to shear the dirt.
• 🚜 Tractor pulls are not only a sport but also a hobby for enthusiasts who invest significant time and resources in building high-performance tractors.
• 🚜 Tractor pulls require precise measurements and calculations to determine the winner.
• 🦺 Safety measures, such as a kill switch and safety hitches, are in place to protect the drivers during tractor pulls.

Questions & Answers

Q: How does a tractor pull work?

Different classes of tractors, built to different specifications, pull a sled configured for their class. The tractor that pulls the sled the farthest before getting bogged down in the dirt wins.

Q: How does a tractor-pull sled stop the tractor?

As the sled travels, its weight box moves toward the front. When the box reaches a limit switch, cylinders apply pressure so wedges enter the ground and capture dirt, increasing resistance against the tractor.

Q: What controls how fast the sled's weight box moves forward?

A transmission and clutch control the weight box through a shaft, rear end, and chains. Because the drive shaft is coupled to the sled's turning wheels, the box's movement directly corresponds to how far the sled travels.

Q: How can the sled operator make a tractor pull harder?

The operator can select a higher gear so the weight box moves forward faster. For a substantially heavier pulling vehicle, additional weights can also be placed at the back of the box near the pan.

Q: What happens when the weight box reaches the front of the sled?

The box contacts a limit switch at the front. That action engages cylinders and forces wedges into the ground, where they act like a plow and capture dirt.

Q: Why are tractor pulls divided into classes?

The tractors are built to different specifications, so they compete in separate classes. The sled is then set to the specifications of the class that is running.

Q: Why is the dirt track repaired between tractor pulls?

Each pull plows up the dirt track. An on-site crew puts the track back together between pulls so it is ready for the next tractor.

Q: How much can a tractor-pull competitor spend on a tractor?

The transcript describes enthusiasts building a $100,000 tractor and sending it down the track. It presents tractor pulling as their hobby, comparable to spending time on bass fishing, deer hunting, or owning a deer camp.

Summary & Key Takeaways

• Tractor pulls are competitions where tractors pull a sled that is set to specific specifications based on different classes of tractors.

• The sled exerts friction on the dirt, and the farthest distance pulled determines the winner.

• Tractor pulls involve intricate physics, including the balancing of torque, weight distribution, and traction.
