How to Measure Voltage and Current of a Microwave Magnetron

TL;DR

To measure the voltage and current of a microwave magnetron, first ensure the filament is heated to around 4 volts AC, then apply a voltage of approximately 4 kilovolts. Expect high current draw once the voltage exceeds 4 kilovolts, allowing you to characterize the magnetron's performance and power output during its operation cycle.

Transcript

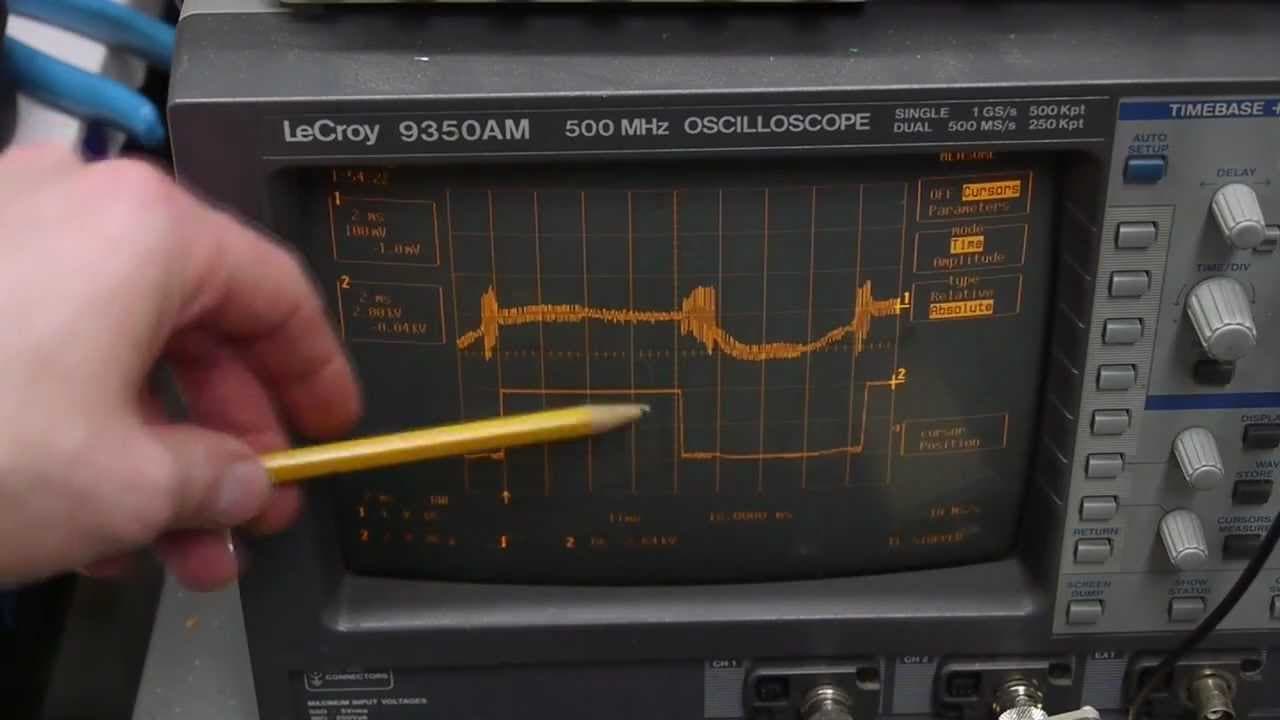

hey everyone I'm out in the shop and I wanted to play with magnetrons so I took my microwave apart and here's the magnetron here this is the device that actually creates the microwaves that cook food and what I want to do is characterize the voltage and current requirements of the magnetron so I've got some projects in mind that will come up later ... Read More

Key Insights

• ❓ Magnetrons contain a filament for electron emission and cavities for RF energy generation.
• 🏑 The magnetic field in the magnetron causes electron swirls, determining microwave frequency.
• ✊ Microwave ovens operate at 2.45 gigahertz, with power cycles to charge the capacitor and transmit microwaves.
• ⚡ Magnetrons can handle high currents and voltages, making them suitable for high-power applications.

Questions & Answers

Q: How does a magnetron create microwaves in a microwave oven?

The magnetron emits microwaves by swirling electrons in a spiral motion past cavities, using the generated heat from a filament to create RF energy.

Q: What determines the frequency of microwaves generated by a magnetron?

The frequency is determined by the number of cavities and the magnetic field strength in the magnetron.

Q: Can a magnetron handle high voltages and currents?

Yes, magnetrons are designed to handle high voltage requirements, with a voltage drop limit of around 4 kilovolts. They can also handle high currents.

Q: How does a microwave oven utilize a magnetron for cooking?

A microwave oven charges a capacitor bank, which is then rapidly discharged through the magnetron, creating a high pulse of power for cooking food.

Summary & Key Takeaways

• The magnetron is a vacuum tube that emits microwaves by swirling electrons in a magnetic field created by two magnets.

• The frequency of the generated microwaves is determined by the number of cavities and the magnetic field strength.

• The magnetron operates with a filament that emits electrons attracted towards the outer ring of cavities, where RF energy is drawn off.
