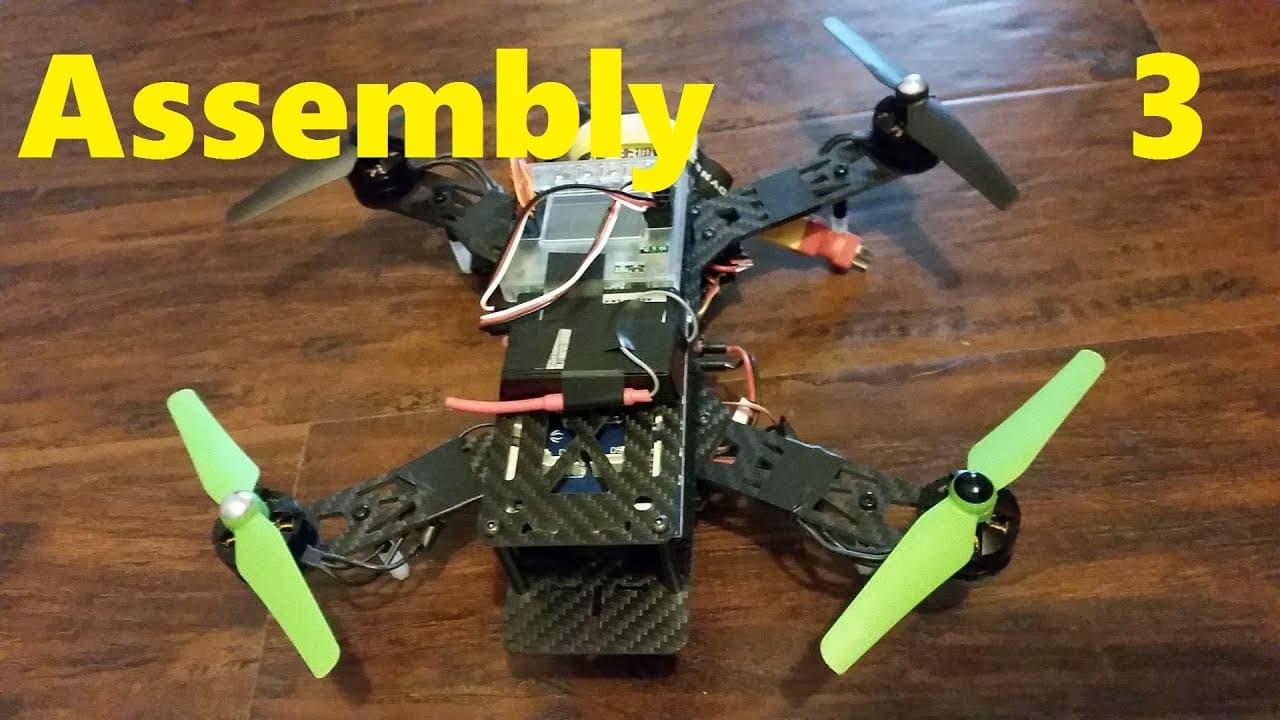

Building a Quadcopter p.3 - Assembly

TL;DR

Learn how to assemble a quadcopter by understanding the major components and their connections, as well as important tips for successful assembly.

Transcript

all right so real briefly I'm gonna cover some of the things that might not be so obvious in the video so when you're putting together your quad depending on the frame that you have I mean some things are gonna be different but at the end of the day everything pretty much boils down to these major components and I'm going to show you how these majo... Read More

Key Insights

• 🔋 The major components of a quadcopter are the lipo battery, flight controller, power distribution board, receiver, ESCs, and motors.
• ❓ Proper connections between the components are crucial for a functional quadcopter.
• 🍰 Carbon fiber frames should be insulated to prevent short circuits.
• 🥺 Double-checking the positive and negative leads is important before plugging in the battery to avoid damaging the components.
• 🧑‍🦼 Motor orientation and rotation directions should be considered during assembly.
• 🥵 Soldering techniques may vary, but ensuring proper heat and adhesion is essential for secure connections.
• 👀 Watching tutorials and seeking guidance from experienced individuals can be helpful during assembly.

Questions & Answers

Q: What powers the quadcopter and how is it connected?

The lipo battery powers the quadcopter, and it is connected to the power distribution board using a positive and negative lead. The battery can be directly connected or through 12-gauge wire if the distribution board does not have a battery plug.

Q: How are the ESCs and motors connected?

The ESCs are connected to the motor plugs on the power distribution board. The motor cables, which consist of three black wires, are then connected to the motor control board. The connection of the wires can be random, but if the motor spins in the incorrect direction, any two wires can be flipped to reverse the motor direction.

Q: How are the bullet adapters used and soldered?

The male end of the bullet adapter is soldered to the motor plugs, while the female end is soldered to the ESC. The wires are inserted through the holes in the bullet adapter, and solder and heat from the soldering iron are used to establish a connection.

Q: How do you solder wires to a circuit board?

To solder wires to a circuit board, the wire is inserted through the holes in the board, and the soldering iron is used to heat the wire. Solder is then applied to the wire, creating a good connection. It is important to heat the wire and not the solder with the iron for a proper connection.

Summary & Key Takeaways

• The major components of a quadcopter include the lipo battery, flight controller, power distribution board, receiver, ESCs, and motors.

• The lipo battery powers the quadcopter, and it connects to the power distribution board, which distributes power to the ESCs.

• The ESCs are connected to the motors, and the flight controller receives signals from the receiver to control the motor outputs.
