How to Use the 3-4-5 Triangle for Perfect Right Angles?

TL;DR

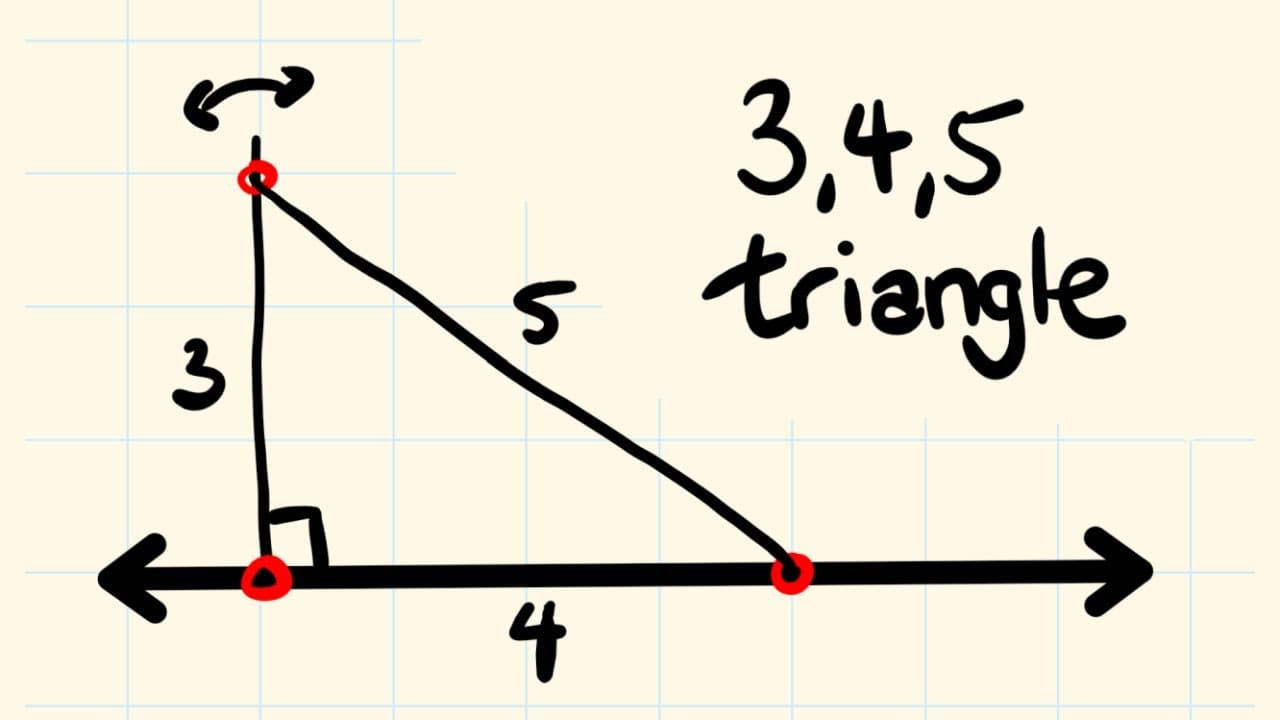

To use the 3-4-5 triangle for creating perfect right angles, measure 4 units along one side and 3 units on the other. If the distance between these two points is exactly 5 units, a perfect 90-degree angle is achieved. This method is scalable, making it useful even in tight spaces.

Transcript

good day welcome to techmath I'm Josh today we're going to have a look at the 3 4 five triangle which is something which is not only handy in math class but also in Practical applications like construction where we want to build a wall that's coming out perfectly at 90 de so this is the way it works we have a currently existing wall here and we wan... Read More

Key Insights

• 🔺 The 3-4-5 triangle is a practical tool in construction for achieving perfect 90-degree angles.
• 🇦🇪 By measuring back 4 units and extending a tape measure for 3 units, a right triangle can be formed.
• 💋 The distances between the marks on the tape measure should adhere to the proportions of the 3-4-5 triangle (3, 4, 5).
• 😒 The use of Pythagoras's Theorem confirms the accuracy of the 3-4-5 triangle.
• 👻 The 3-4-5 triangle is scalable, allowing for adjustments based on available space.
• 💦 Working alone, a string can be used to create a 3-4-5 triangle for accurate measurement.
• 🔨 The 3-4-5 triangle can be a valuable tool even for those not comfortable with complex math concepts.

Questions & Answers

Q: How can the 3-4-5 triangle be used in construction?

The 3-4-5 triangle is used to ensure walls are built with perfect 90-degree angles. By measuring back 4 units and extending a tape measure at a rough 90-degree angle for 3 units, the resulting distance between the 3-unit mark and the 4-unit mark should be exactly 5 units.

Q: Can the 3-4-5 triangle be scaled down for smaller measurements?

Yes, the 3-4-5 triangle is perfectly scalable. If the available space only allows for 2 units instead of 4, the other measurements can be halved accordingly. For example, a 1.5-2-2.5 triangle can be used.

Q: What is the significance of Pythagoras's Theorem in relation to the 3-4-5 triangle?

Pythagoras's Theorem, which states that a^2 + b^2 = c^2, is the basis for the 3-4-5 triangle. The shorter sides (A and B) when squared and added together should equal the square of the longest side (C). In the case of the 3-4-5 triangle, 3^2 + 4^2 = 5^2, confirming the theorem.

Q: How can the 3-4-5 triangle be used when working alone?

When working alone, attach 8 meters of string to two points on the wall. When pulling the string tight, it should form a right triangle with 3 units on one side, 5 units on another side, and an angle of 90 degrees.

Summary & Key Takeaways

• The 3-4-5 triangle is a useful tool in construction for creating walls with perfect 90-degree angles.

• To use the 3-4-5 triangle, start by marking a point on an existing wall. Then measure back 4 units and extend a tape measure at a rough 90-degree angle for 3 units.

• The distance between the 3-unit mark and the 4-unit mark should be exactly 5 units. This confirms a perfect 90-degree angle.
