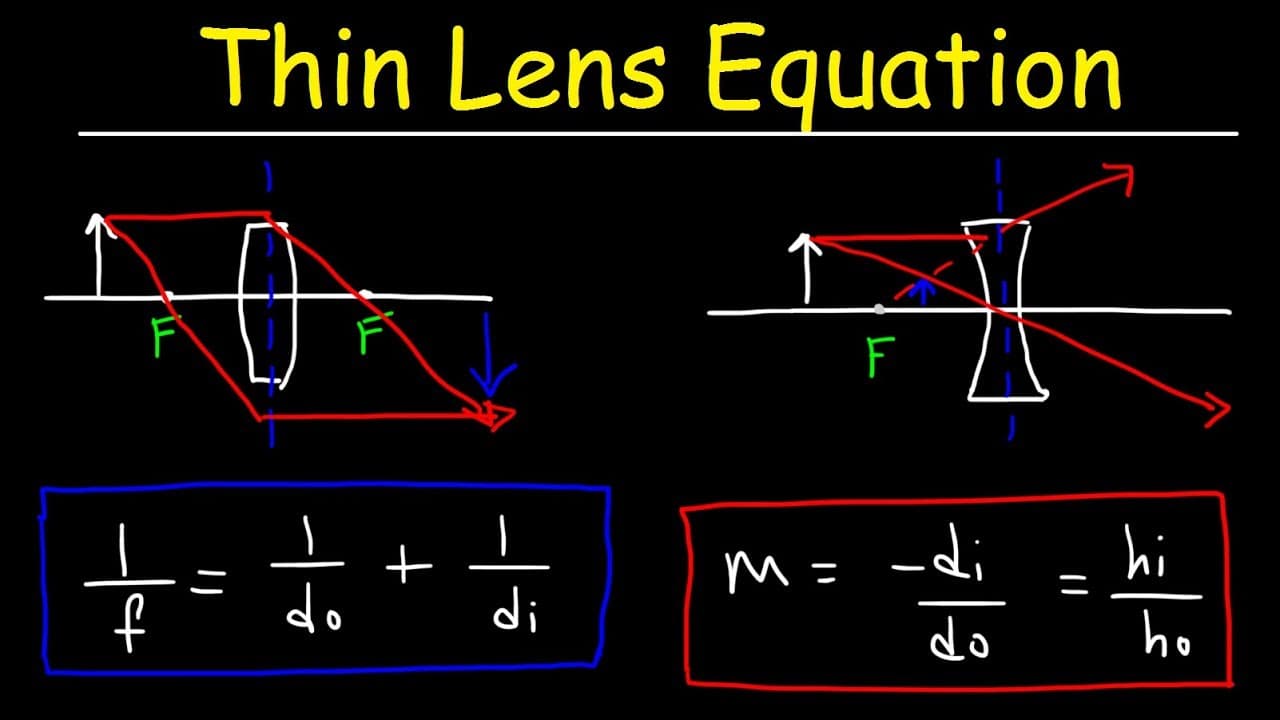

What Is the Thin Lens Equation and How Does It Work?

TL;DR

The thin lens equation is used to determine the position and magnification of images formed by lenses. For converging lenses, a real image is produced when the object is placed beyond the focal point, while diverging lenses always create virtual, upright, and reduced images. The power of a lens can be calculated as the reciprocal of its focal length in meters.

Transcript

a seven centimeter tall object is placed 12 centimeters in front of a convergent lens with a focal length of six centimeters where is the image located so feel free to pause the video if you want to try this problem now hopefully you saw my other video on spherical mirrors which i go over how to use the mirror equation and also the ray diagrams for... Read More

Key Insights

• 😥 Convergent lenses create real, inverted images when the object is placed beyond the focal point.
• 🥳 The magnification of an image in a convergent lens is determined by the ratio of the distances.
• 🧘 Divergent lenses produce virtual, upright, and reduced images regardless of the object's position.
• ✊ The power of a lens is calculated by taking the reciprocal of the focal length and converting it to diopters.

Questions & Answers

Q: How is the location of the image determined in a convergent lens?

In a convergent lens, the location of the image can be determined using the thin lens equation: 1/f = 1/do + 1/di, where do is the distance of the object from the lens, and di is the distance of the image from the lens.

Q: What is the difference between a real and virtual image?

A real image is formed when the image is projected onto a screen or surface and can be captured, while a virtual image is formed when the light rays diverge and do not actually meet. Virtual images cannot be captured on a screen.

Q: How is the magnification of an image calculated?

The magnification of an image can be calculated using the formula m = hi/ho = -di/do, where hi is the height of the image and ho is the height of the object.

Q: Can a divergent lens produce a real image?

No, a divergent lens can only produce a virtual image. The light rays diverge after passing through the lens, resulting in an image that cannot be projected onto a screen.

Summary & Key Takeaways

• In a convergent lens, a 7 cm tall object is placed 12 cm in front of it, and the image is located 12 cm from the lens, with a magnification of -1. The image is inverted but remains the same size as the object.

• In a divergent lens, a 5 cm tall object is placed 8 cm in front of it, and the virtual image is located 3.077 cm from the lens, with a magnification of 0.3846. The image is upright and reduced in size.
