Full and Short pitch winding | Synchronous Machines | Lec-05

TL;DR

Explanation of slot pitch, short pitch winding, and their impact on machines.

Transcript

hello everyone the next topic is slot pitch or slot angle just keep in your mind always pitch means angle which means angle so pole pitch means here the pole consisting of angle how much of angle it consists is called pole angle slot pitch means simply slot angle so every machine have more number of slots that's why it is called the slot angle righ... Read More

Key Insights

• 🎰 The slot pitch is integral in defining how slots relate to pole configurations, impacting machine design.
• 🍰 Short pitch winding reduces electromagnetic interference and harmonics, improving machine performance.
• 🎰 A well-designed slot configuration not only enhances efficiency but also stabilizes operating conditions in electric machines.
• 🎰 Calculating slot angles is crucial for engineers to optimize machine performance and harmonic management.
• 🎰 Understanding the relationship between coils, slots, and poles is essential for predicting machine behavior and electrical output.
• 💨 The choice between short pitch and full pitch affects both the mechanical and electrical properties of winding in machines.
• ✋ Higher numbers of slots correlate positively with reduced magnetic distortion and smoother operation in electric motors and generators.

Questions & Answers

Q: What is the significance of slot pitch in electric machines?

Slot pitch, or slot angle, is essential in determining the harmonic content of an electric machine. A higher number of slots generally means reduced harmonic distortion, improving overall efficiency and performance. It directly influences the machine's magnetic field distribution and operational stability.

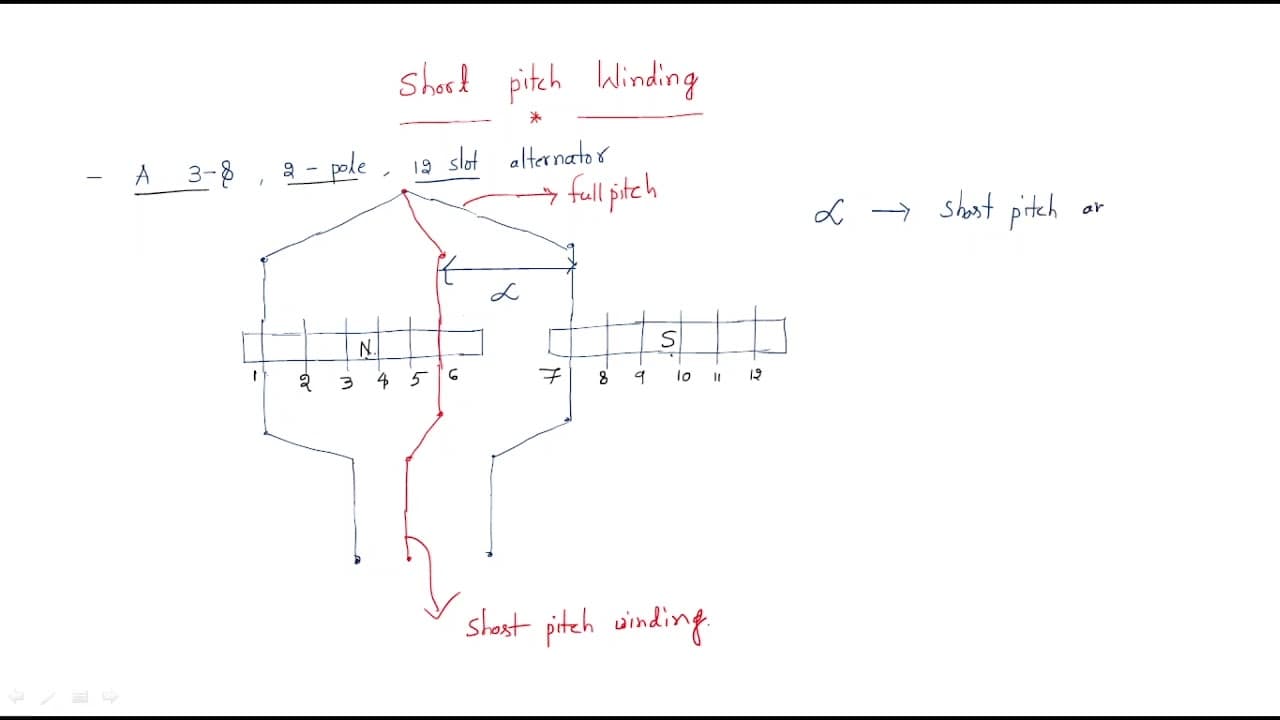

Q: How does short pitch winding differ from full pitch winding?

Short pitch winding connects coils through fewer slots, thereby altering the span of the coil. This results in a shorter angle between the coil ends compared to full pitch winding. The difference can affect the induced EMF, typically leading to adjustments in voltage levels and phase performance.

Q: How can one calculate the slot angle in an electric machine?

The slot angle can be calculated using the formula gamma = 180 / (number of slots per pole). For example, if there are 12 slots and 2 poles, the calculation would yield 30 degrees per slot. This angle is critical in understanding the machine's winding configuration.

Q: What happens to EMF generation when using short pitch windings?

The resultant EMF from short pitch windings is derived from two separate induced voltages across connected slots. While full pitch may produce a higher voltage, short pitch can lead to different voltage values, influencing the machine's performance. The arithmetic sum of both voltages provides the total output.

Q: Why is it better to have more slots in a winding configuration?

Having more slots in a machine helps to reduce harmonic content, enhancing the machine's performance and stability. This design choice minimizes losses and improves efficiency, making it essential for high-performance electrical systems.

Q: How do the concepts of coil span and short pitch angle correlate?

The coil span represents the physical distance between the two ends of a coil, while the short pitch angle quantifies how much angle is reduced from the full pitch due to a shortening of the winding. Both parameters heavily influence the EMF generation and operational characteristics of machines.

Summary & Key Takeaways

• Slot pitch refers to the angle of each slot in a machine, which affects harmonic content and overall performance; a higher number of slots reduces harmonic issues.

• Short pitch winding differs from full pitch, impacting the EMF generated; the coil can connect through fewer slots, leading to shorter arcs in the winding.

• The relationship between the number of poles and slots is crucial in defining slot angles, coil spans, and resultant EMF in electric machines.
