Stator mmf | Rotor mmf | DC Machines | Lec-06

TL;DR

The commutator is crucial for DC motors and generators functioning, converting power types and facilitating torque production.

Transcript

hello everyone in the last session we discussed about the the working of dc generator as well as dc motor in the dc generator and dc motor to work as a dc motor or dc generator the competitor is a very very important part it is very very important and due to the commutator only we can analyze the dc machine working it may be the dc generator or it ... Read More

Key Insights

• 👻 The commutator effectively converts electrical and mechanical power, allowing DC generators and motors to operate efficiently in their respective roles.
• 🐎 The synchronization of armature and field MMF speeds is essential for generating unidirectional torque, a critical aspect of DC machine performance.
• 🦾 Understanding the electrical and mechanical angles in relation to the number of poles in a DC machine helps to optimize its functioning.
• 🦻 The distinction between direct and quadrature axes aids in comprehending the overall magnetic field dynamics within DC machines.
• 💦 The working principle of DC machines heavily relies on electromagnetic forces generated through rotating conductors influencing torque production.
• 🎰 The armature conductors in DC machines exhibit AC characteristics, highlighting the conversion capabilities facilitated by the commutator.
• ✊ The mechanical power generated in DC generators relies on effectively harnessing the electrical power from the machine, necessitating the proper configuration of the commutator.

Questions & Answers

Q: What role does the commutator play in DC motors and generators?

The commutator functions as both a mechanical rectifier and inverter in DC machines. It converts mechanical power into electrical power when operating as a generator and electrical power back into mechanical power when functioning as a motor. This dual functionality is vital for the efficient operation of DC machines, enabling the conversion of energy types essential for motor and generator roles.

Q: How does the armature magnetomotive force (MMF) relate to torque production?

The armature MMF, which represents the magnetic force produced by the armature windings, plays a critical role in generating unidirectional torque. When the armature MMF combines effectively with the stationary field MMF, both must rotate at the same speed for torque to be produced. If the armature and field MMFs are not synchronized in this manner, torque production will cease.

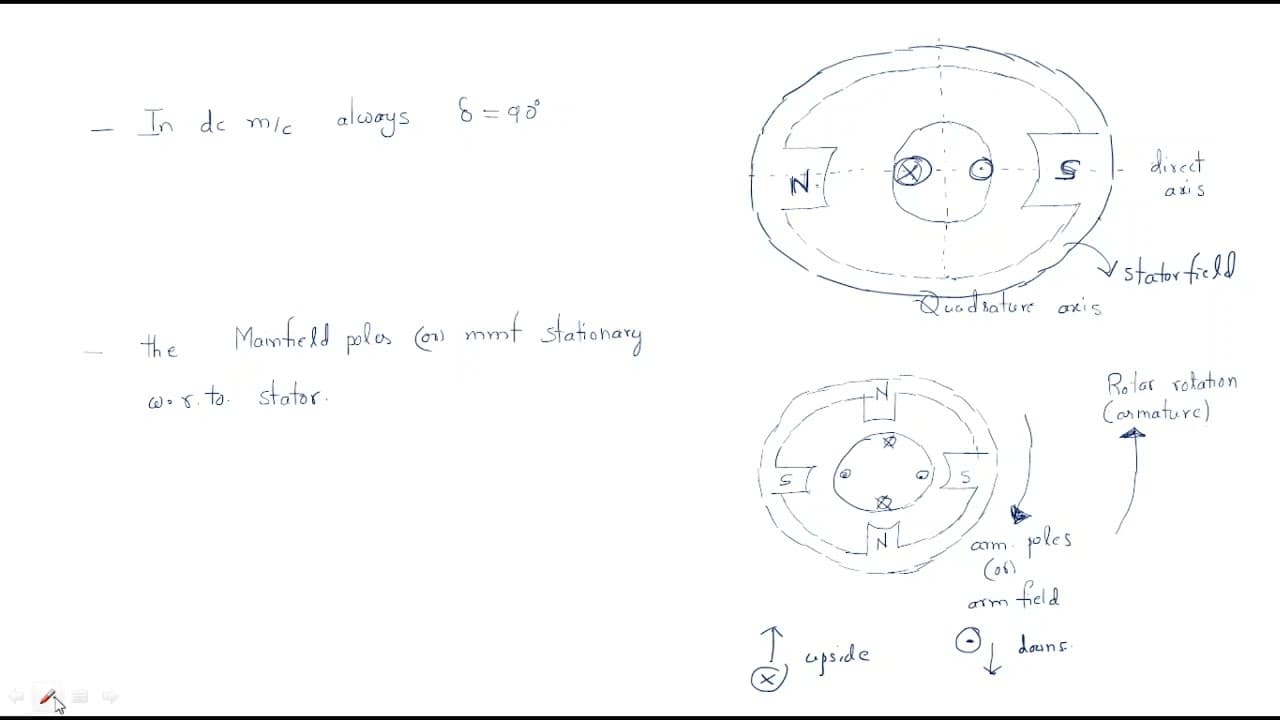

Q: What is the significance of the load angle in DC machines?

The load angle in DC machines is crucial as it represents the angle between the stator MMF and the rotor MMF. This angle typically measures 90 degrees, which is significant for torque generation and the overall efficiency of the DC machine. Understanding and managing the load angle ensures optimal performance during operation, avoiding issues like torque drop or machine stalling.

Q: Can you explain the difference between direct and quadrature axes in DC machines?

In DC machines, the direct axis refers to the axis aligned with the magnetic poles, while the quadrature axis is orthogonal to it. The direct axis has an important role in torque production due to the alignment of magnetic flux, while the quadrature axis does not align with the poles. The 90-degree separation between these two axes is vital for efficient operation and load angle configuration.

Summary & Key Takeaways

• This content explores the crucial role of the commutator in both DC motors and DC generators, outlining how it functions as a mechanical rectifier and inverter.

• It emphasizes the importance of maintaining the rotation speed for producing unidirectional torque through the armature and field magnetic forces.

• The content also distinguishes between direct and quadrature axes, explaining their implications in the operation and load angle of DC machines.
