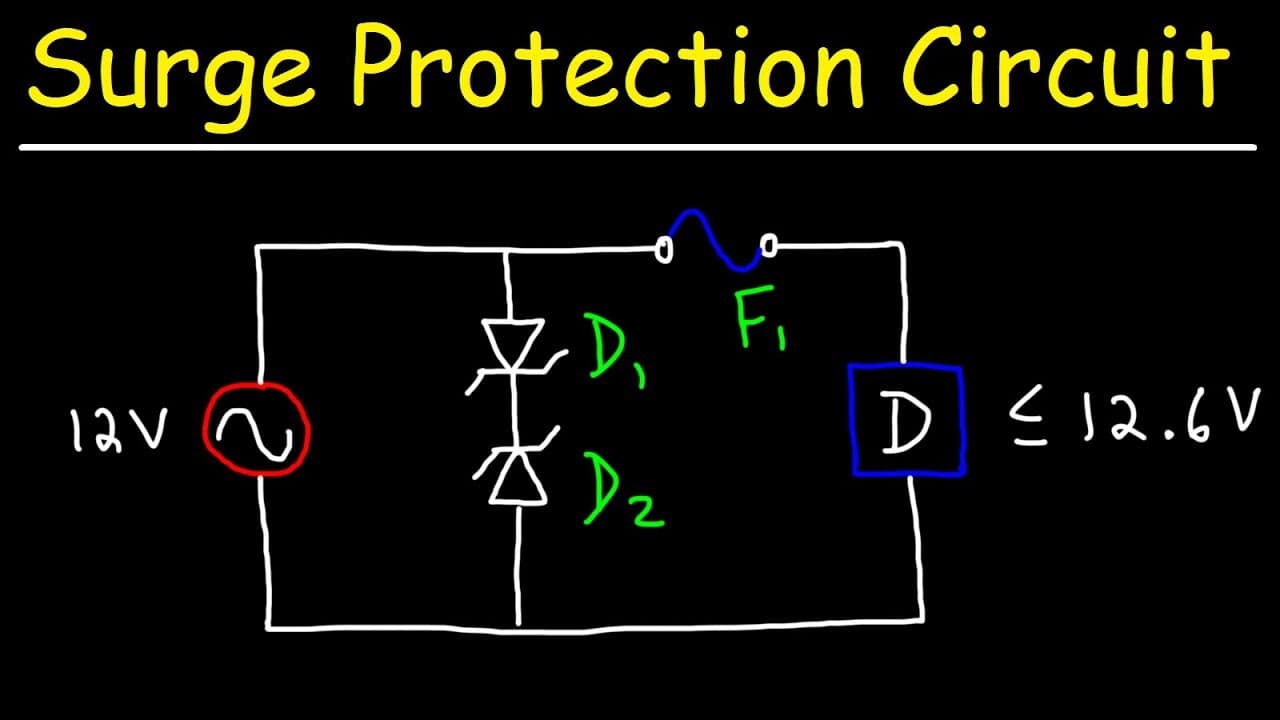

High Voltage Surge Protection Transient Suppressor Circuit Using Zener Diodes & Fuses

TL;DR

Learn how to protect electronic circuits from voltage spikes using zener diodes and fuses.

Transcript

in this video we're going to talk about how to create a voltage surge protection transient suppressor circuit now these circuits are important because the voltage of your power source is not always constant it can vary and sometimes it can spike it can spike to a point where it can cause damage to your circuit so let's say that your circuit device ... Read More

Key Insights

• ✊ Voltage surges can occur in electronic circuits due to fluctuations in the power source and the collapse of magnetic fields in inductors.
• ⚡ Zener diodes can be used to clamp the voltage at a safe level, protecting the circuit from damage.
• ⚡ The zener voltage of a diode can be selected based on the desired maximum voltage the circuit can handle.
• ✋ The surge capabilities of a zener diode, such as its ability to handle high surge currents, should be considered when selecting the diode for a specific application.
• 😕 Fuses provide an additional layer of protection by breaking the circuit if the current exceeds the maximum capacity of the diodes.
• ⚡ The surge protection circuit ensures that the voltage across the device does not exceed the maximum threshold, even during voltage spikes.
• 🛝 Zener diodes redirect voltage spikes to ground, protecting the circuit from damage.

Questions & Answers

Q: Why is it important to protect electronic circuits from voltage spikes?

Voltage spikes can exceed the maximum voltage that a circuit can handle, causing damage or failure of the components.

Q: How do inductors contribute to voltage spikes?

When the current through an inductor decreases rapidly, the stored energy in the magnetic field can be released as high voltages, potentially damaging the circuit.

Q: How does a zener diode protect against voltage spikes?

A zener diode allows current to flow in the reverse bias mode, and when the voltage exceeds its zener voltage, it begins conducting, clamping the voltage to a safe level.

Q: What is the purpose of using a fuse in the surge protection circuit?

A fuse is used to protect the circuit from high current surges. If the current exceeds the maximum capacity of the diodes, the fuse will blow, breaking the circuit and preventing further damage.

Summary & Key Takeaways

• Voltage surges can damage electronic circuits, and it is important to protect them from high voltages.

• Inductors can generate high voltages when the current decreases, which can be harmful to circuits.

• Zener diodes can be used in conjunction with fuses to create a circuit that protects against voltage spikes.
