A Simple Oscillator Circuit

TL;DR

Learn how to build a basic oscillator circuit using a battery, electric motor, and capacitor, and how different components impact stability and output values.

Transcript

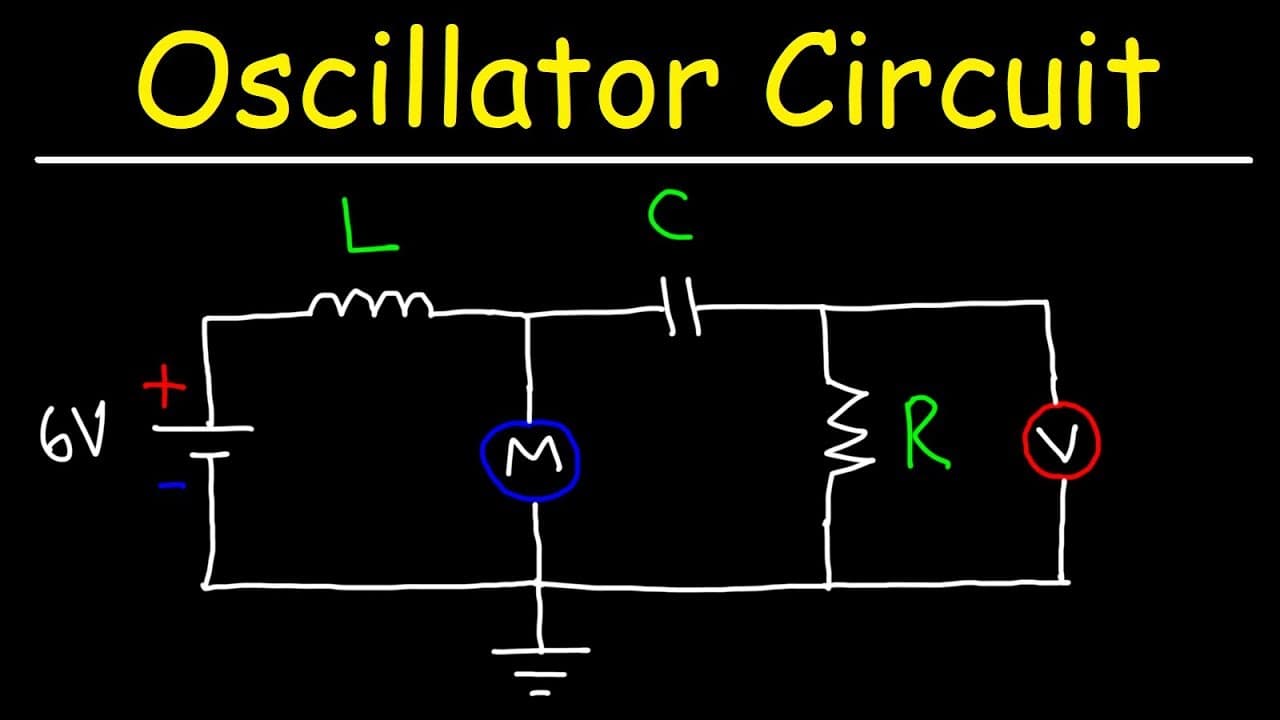

in this video we're going to talk about how to make a very simple oscillator circuit so what you need is a battery i'm using a six volt battery an electric motor and a capacitor and i'm using a digital multimeter to measure the voltage the current and the frequency now there's a lot of other oscillator circuits that you can build but this one it's ... Read More

Key Insights

• 🧑‍🦼 A basic oscillator circuit can be built using a battery, motor, and capacitor.
• 🧑‍🦼 The circuit generates an AC signal by converting the motor's back electromotive force.
• 🧑‍🦼 The motor type and battery voltage greatly affect the stability and output values of the circuit.
• ⚡ Increasing the battery voltage can result in higher output voltage, current, and frequency.
• ⚡ Adding a resistor across the output can increase stability, but may impact output voltage.
• 🧑‍🦼 Using an inductor instead of a motor can further increase output voltage and frequency.
• ⚡ Increasing the inductor's inductance can boost the output voltage, but there is a trade-off with internal resistance.

Questions & Answers

Q: How does the oscillator circuit work?

The battery delivers current to the circuit, causing the motor to spin and generate a varying AC signal. The AC signal passes through the capacitor, which blocks DC signals.

Q: Can the circuit be stable with different motor types?

The stability of the circuit depends on the motor type used. In the video, the first motor showed wide frequency variations, while the second motor provided better stability.

Q: How does increasing the battery voltage affect the circuit?

Increasing the battery voltage results in more current flowing through the motor, causing it to spin faster. This leads to higher output voltage, current, and frequency.

Q: How can stability be increased in the circuit?

One way to increase stability is by adding a resistor across the output. A lower resistance value can provide better stability, but it may sacrifice some output voltage.

Summary & Key Takeaways

• The video explains how to make a simple oscillator circuit using a battery, motor, and capacitor.

• The circuit generates an AC signal that depends on the motor type and battery voltage.

• The video demonstrates how changing the motor type, battery voltage, and adding resistors or inductors can affect the stability and output values of the circuit.
