Construction of DC Machines | Field | Pole core & Pole sheo | Lec-08

TL;DR

This content explains the functions and importance of magnetic frames and pole shoes in DC machines.

Transcript

hello everyone in the last session we discussed about the construction of dc machines in that we have we already gone with some details of the magnetic frame or yoke so here in this magnetic frame our yoke the main intention of the magnetic frame is to provide path for the flux and return path for the flux fluxes comes from the north pole and it wi... Read More

Key Insights

• 🦮 The magnetic frame in DC machines is essential for supporting field poles and guiding magnetic flux.
• 🦾 Mechanical strength is augmented with a well-designed magnetic yoke, preventing structural failures.

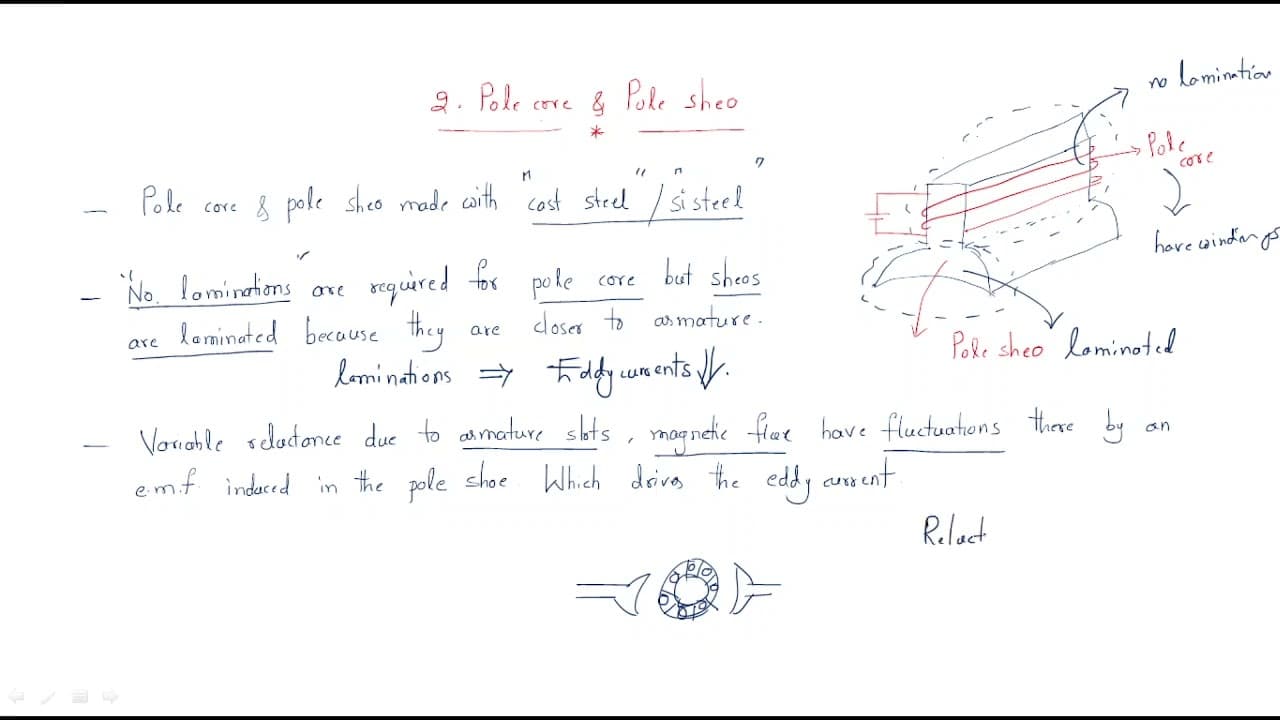

• 💯 Pole cores provide a secure location for windings, ensuring effective magnetism in operation without requiring laminations.
• 💈 Pole shoes must be laminated to minimize eddy currents, enhancing electrical efficiency and performance.
• 🎰 The interaction between reluctance and magnetic flux is crucial for the induced EMF, impacting machine efficiency.
• 👠 The area of the pole shoe contributes to decreasing magnetic reluctance, allowing increased magnetic flux and generating higher EMF.
• 💯 Understanding magnetic paths within the frame and cores is vital for optimizing DC machine design.

Questions & Answers

Q: What is the primary function of the magnetic frame in DC machines?

The magnetic frame, or yoke, serves multiple purposes in DC machines. Its primary function is to provide a path for magnetic flux, creating a return route between north and south poles. Additionally, it provides mechanical support for the field poles and acts as a protective cover against environmental factors like moisture and temperature extremes, ensuring the longevity and reliability of the machine.

Q: Why are no laminations required for the pole core in DC machines?

Unlike other components in electrical machinery that utilize laminations to mitigate eddy currents, the pole core in DC machines does not require laminations because it operates under different magnetic flux conditions. The pole core does not experience significant eddy current generation, primarily due to its design and the materials used (cast or silicon steel), which helps maintain efficiency without the need for additional laminating layers.

Q: How does the pole shoe contribute to the performance of DC machines?

The pole shoe plays a crucial role in enhancing the performance of DC machines. It provides mechanical support to the field winding, which, when energized, generates magnetic poles. Furthermore, the laminated structure of the pole shoe helps reduce eddy currents, resulting in lower magnetic reluctance and increased magnetic flux. This ultimately contributes to higher efficiency in electromagnetic induction, leading to reliable operation and better performance.

Q: What effect do variations in reluctance have on the magnetic flux in DC machines?

Variations in reluctance caused by armature slots significantly influence the magnetic flux in DC machines. Since reluctance is inversely proportional to flux, changes in armature design can lead to fluctuations in magnetic field strength. Consequently, these variations result in induced EMF and affect the overall performance of the machine. Monitoring and optimizing these factors are crucial for maintaining efficient operation.

Summary & Key Takeaways

• The magnetic yoke in DC machines provides mechanical support to the field poles while creating a return path for magnetic flux, enhancing the machine’s overall strength and functionality.

• The pole core, made from cast or silicon steel, is essential for housing windings and generating magnetic poles, while the pole shoe is laminated to reduce eddy currents and improve efficiency.

• Variations in reluctance from armature slots affect magnetic flux, leading to induced EMF, highlighting the interconnection between mechanical design and electrical performance in DC machine operations.
