AC Power Supply System

TL;DR

The lecture discusses the need for transmitting AC power over long distances, the role of transmission lines, the importance of stepping up and stepping down voltage, and the concept of three-phase systems.

Transcript

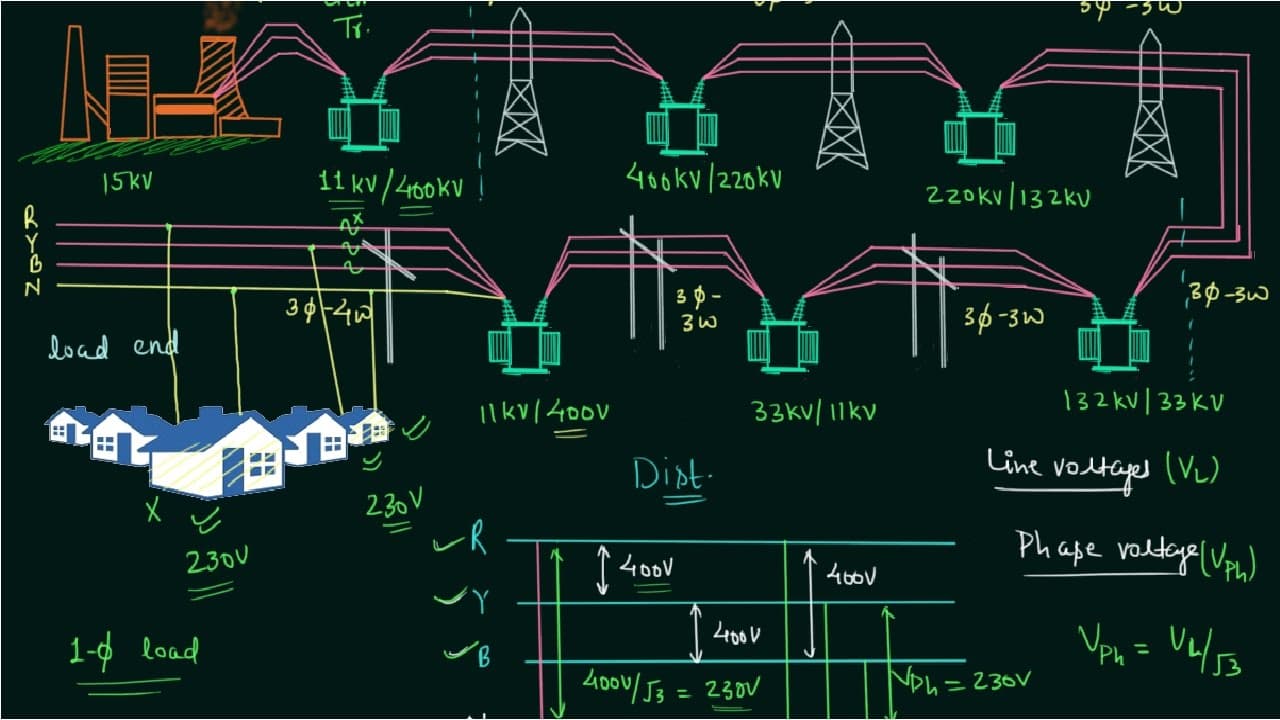

in the previous lecture we completed introduction to power system and now in this presentation we will try to understand working of AC power supply system I will explain how a C power is transmitted or supplied from the generating end to the load end this end here is the generating and you can see a thermal power plant at this end and power generat... Read More

Key Insights

• ✊ Power stations used to be constructed near loads, but the need to transmit power to regions without raw materials led to the development of long-distance transmission.
• 💨 Nuclear power plants must be constructed away from human populations due to safety concerns associated with radioactive materials used in the generation process.
• 🫥 Stepping up the voltage before transmission helps reduce losses in transmission lines.
• ⏯️ Substations play a key role in stepping down the voltage to levels suitable for consumer use.
• ✊ Power systems consist of generation, transmission, and distribution components.
• 😐 Different houses in a three-phase system are connected between different phases and the neutral wire.

Questions & Answers

Q: Why do we need to transmit AC power over long distances instead of constructing power stations near the load?

Power stations are often located near raw material sources, and not all loads are situated near these sources. To meet the demand in regions without raw materials, power must be transmitted over long distances.

Q: Can nuclear power plants be constructed near the load?

No, nuclear power plants require the use of radioactive materials and must be constructed away from human populations for safety reasons, hence necessitating long-distance power transmission.

Q: Why do we step up the voltage from the generator before transmission?

Stepping up the voltage helps reduce I-squared-R losses. By increasing the voltage, the current decreases while maintaining the same power, minimizing losses in transmission lines.

Q: Why do we step down the voltage at substations before supplying it to consumers?

Substations step down the voltage to levels suitable for consumer use. Lower voltages are required for safety reasons and to meet the needs of different types of loads.

Key Insights:

• Power stations used to be constructed near loads, but the need to transmit power to regions without raw materials led to the development of long-distance transmission.
• Nuclear power plants must be constructed away from human populations due to safety concerns associated with radioactive materials used in the generation process.
• Stepping up the voltage before transmission helps reduce losses in transmission lines.
• Substations play a key role in stepping down the voltage to levels suitable for consumer use.
• Power systems consist of generation, transmission, and distribution components.
• Different houses in a three-phase system are connected between different phases and the neutral wire.
• Fuses are used to protect individual houses in a three-phase system and can cause power outages in specific households.

Summary & Key Takeaways

• AC power is transmitted from the generating end to the load end through a path that involves a thermal power plant as the source and a society or locality as the load.

• In the past, power stations were constructed near the load, but with the need to transmit power to regions without raw materials, long-distance transmission became necessary.

• Nuclear power plants and hydro power plants cannot be constructed near the load due to safety and geographic constraints, requiring power transmission over long distances.
