Dimensional Analysis

TL;DR

"Learn how dimensional analysis was used by NASA to design a parachute for the Mars Rover, allowing engineers to predict its behavior on Mars using Earth experiments."

Transcript

On the evening of August 5, 2012 Pacific Daylight Time, NASA's Mars Rover, named Curiosity, entered Mars' atmosphere at 20,000km/h. Drag slowed it down to around 1600km/hr, at which point a parachute opened. This parachute slowed the Rover more, to about 320km/hr, or 90 m/s. Finally, after rockets decelerated it completely, the rover was lowered to... Read More

Key Insights

• 🏑 Dimensional analysis is a powerful problem-solving method used by NASA and engineers in various fields.
• 😑 By identifying independent and dependent variables and expressing fundamental dimensions, the behavior of systems in different environments can be predicted.
• 😑 Dimensional analysis allows for the creation of dimensionless expressions and the derivation of general formulas that can be applied to different scenarios.

Questions & Answers

Q: How did dimensional analysis help NASA engineers design the parachute for the Mars Rover?

Dimensional analysis allowed engineers to identify the independent and dependent variables, express fundamental dimensions, and create dimensionless versions of the variables. This helped find a formula for the terminal velocity of the parachute on Mars, allowing for design optimization.

Q: Why was the surface area of the parachute canopy not included as an independent variable?

The surface area of the canopy was not included because it is not independent of the diameter of the canopy. The area can be determined as a function of the diameter, so including both variables would be redundant.

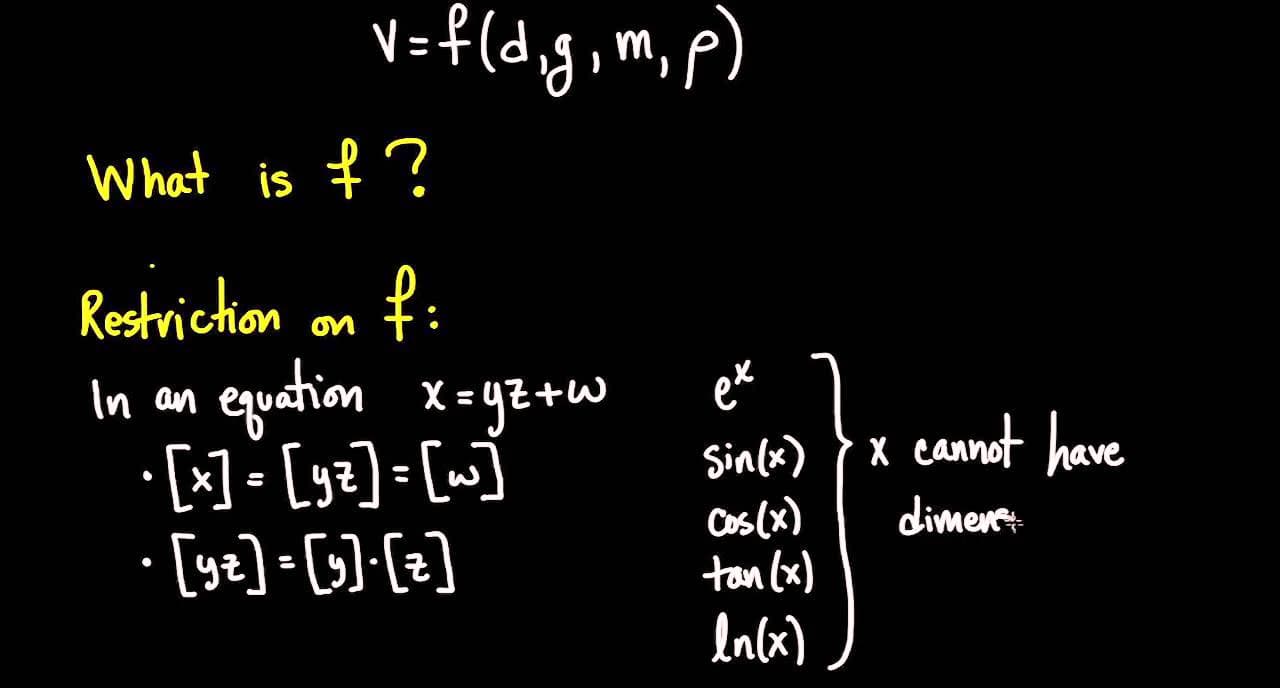

Q: How was the general formula for terminal velocity derived using dimensional analysis?

The general formula for terminal velocity was derived by creating dimensionless expressions for the variables involved. By setting the formula for velocity equal to the square root of g times d, it was observed that any expression with the correct dimension of Length over Time can be written in terms of this formula by redefining the function phi.

Q: How were Earth-bound experiments used to design the parachute for Mars?

Experimental data from Earth, where gravity and atmospheric density are known, were used to fit a best-fit curve representing the function phi. This curve was then used to determine the diameter that corresponds to a desired terminal velocity on Mars, enabling the design of the parachute.

Summary & Key Takeaways

• NASA's Mars Rover, Curiosity, successfully landed on Mars using a carefully choreographed landing sequence involving a parachute.

• Dimensional analysis is a problem-solving method that helped NASA engineers design and predict the behavior of the parachute on Mars.

• By identifying independent and dependent variables, expressing fundamental dimensions, and creating dimensionless versions of these variables, engineers were able to find a formula for the terminal velocity of the parachute.
