Capacitors (6 of 11) in Series, Calculating Voltage Drop

TL;DR

The sum of potential differences across series capacitors equals the battery voltage.

Transcript

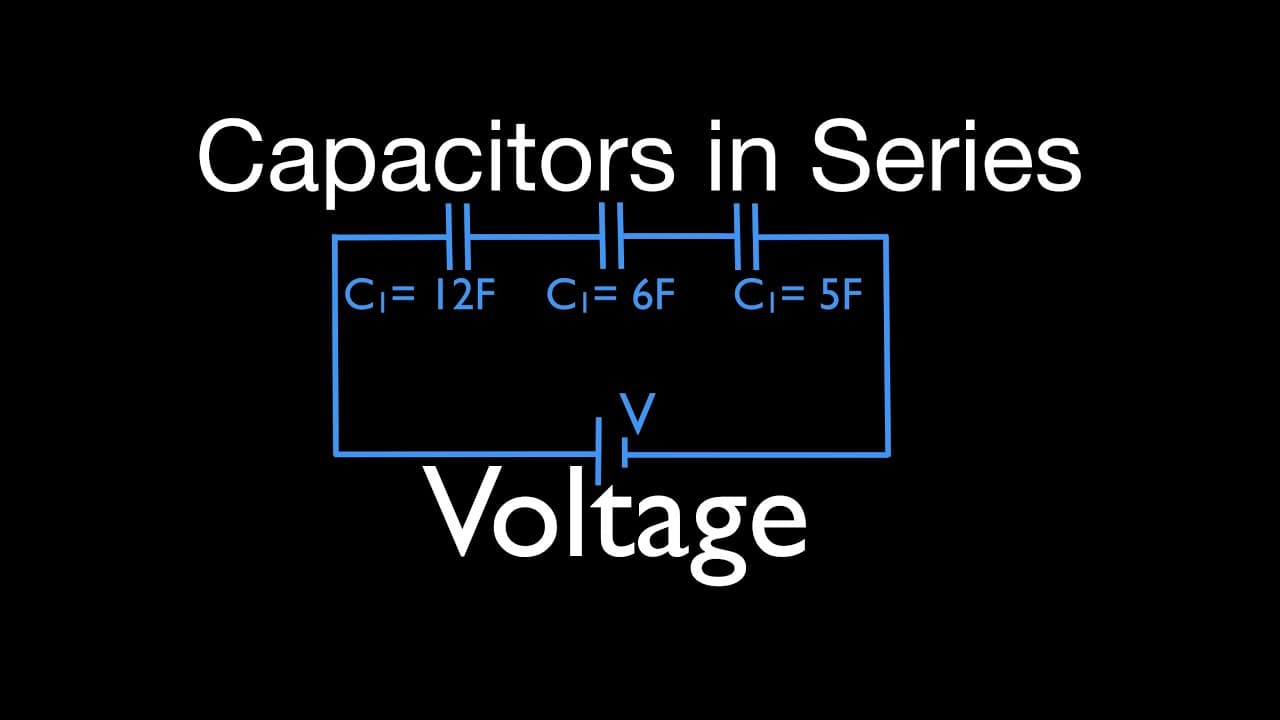

okay in today's video I'm going to go over how to calculate the voltage for series capacitors and this is the circuit we're going to use we have three capacitors one two and three a twelve six and a five farad capacitor twelve volt battery and we want to figure out what is the potential difference across these two plates and what is potential limit... Read More

Key Insights

• 🈂️ Series capacitors share the same charge but have different capacitances.
• 🍹 The sum of potential differences across series capacitors equals the battery voltage.
• ⚡ Calculating voltage for series capacitors involves using the formula V = Q/C.
• 🈂️ Conservation of charge principle applies to series capacitors.
• 🍽️ Potential difference across capacitor plates indicates stored energy.
• ⚡ Capacitors in series contribute to the total voltage in a circuit.
• ⚡ Understanding voltage distribution in series capacitors is essential for circuit analysis.

Questions & Answers

Q: How can you calculate the voltage for series capacitors?

By dividing the charge by the capacitance for each capacitor in the series using the formula V = Q/C, ensuring the sum equals the battery voltage.

Q: Why is the charge the same for series capacitors?

In series capacitors, the charge is the same across all capacitors due to the conservation of charge principle, even though the capacitances are different.

Q: What is the significance of the potential difference across capacitor plates?

The potential difference across capacitor plates indicates the energy stored in the capacitor and helps in understanding circuit behavior.

Q: How do series capacitors contribute to the total voltage in a circuit?

Series capacitors share the total voltage provided by the battery, with each contributing a portion of the voltage drop based on their capacitance.

Summary & Key Takeaways

• Explains how to calculate voltage for series capacitors using the equation Q = CV.

• Demonstrates using a circuit with three capacitors and a 12V battery.

• Shows that the sum of voltage drops across capacitors equals the battery voltage.
