High speed X-ray video: jumping beans, wind-up toys and more!

TL;DR

Capturing dynamic X-ray visuals at 300 frames per second reveals intricate details of various subjects.

Transcript

today on applied science I'd like to show you some x-ray video but not just any x-ray video high speed x-ray video captured with this Photon counting camera that can do about 300 frames a second so let me show you some of the footage that I acquired and then we'll talk about how the camera works finding subjects for this setup is actually pretty tr... Read More

Key Insights

• 🚄 Transparent subjects like water and plastic yield best results in high-speed X-ray imaging.
• 🎥 Specific details like switch mechanisms and insect internal structures are exposed with the Photon counting camera.
• 😨 The expensive and sensitive nature of the equipment demands specialized care and maintenance.
• 🚄 High-speed X-ray footage is prominent in scientific research at particle accelerator installations.
• 🫵 Viewing and processing 32-bit TIFF X-ray images require specific software and careful workflow.
• 📤 X-ray safety protocols, including using barriers and monitoring radiation levels, are crucial during filming.
• 🚄 Mexican jumping beans jump to avoid sunlight exposure, showcasing unique behaviors under high-speed X-ray scrutiny.

Questions & Answers

Q: How does the Photon counting camera capture high-speed X-ray videos?

The camera utilizes Photon counting, where each X-ray photon hitting the sensor is directly converted into a digital pulse, enabling sensitivity up to a million times more than traditional sensors.

Q: What subjects are ideal for high-speed X-ray filming?

Transparent subjects like water, plastic, insects, and fast-moving objects such as jumping beans and crickets are perfect for capturing detailed X-ray imagery.

Q: What challenges arise in viewing and processing high-speed X-ray footage?

The specialized 32-bit TIFF images require specific software like ImageJ, as standard programs struggle to read such high-quality and uncompressed data for accurate analysis and editing.

Q: How is X-ray safety ensured during the filming process?

Precautions include using heavy steel barriers to block primary X-ray beams, monitoring Backscatter radiation, and enclosing the filming area to prevent radiation leakage, similar to dental X-ray safety protocols.

Summary & Key Takeaways

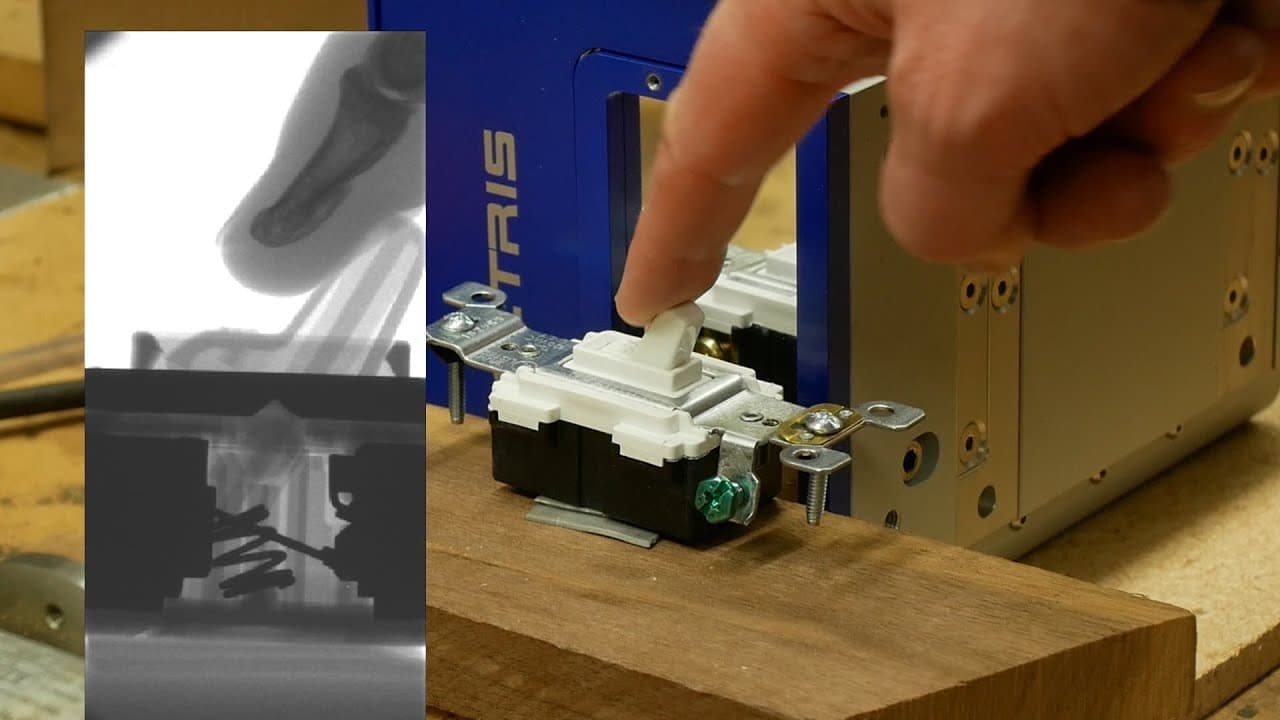

• High-speed X-ray video captures dynamic subjects like jumping beans, switches mechanisms, and insects.

• The Photon counting camera enables detailed imaging of fast-moving and transparent objects.

• Specialized equipment and sensitive handling are crucial for obtaining high-quality X-ray footage.
