Create Geometry of 3d Building Model Using Grid

TL;DR

Learn to create a 3D building model using a grid system in software.

Transcript

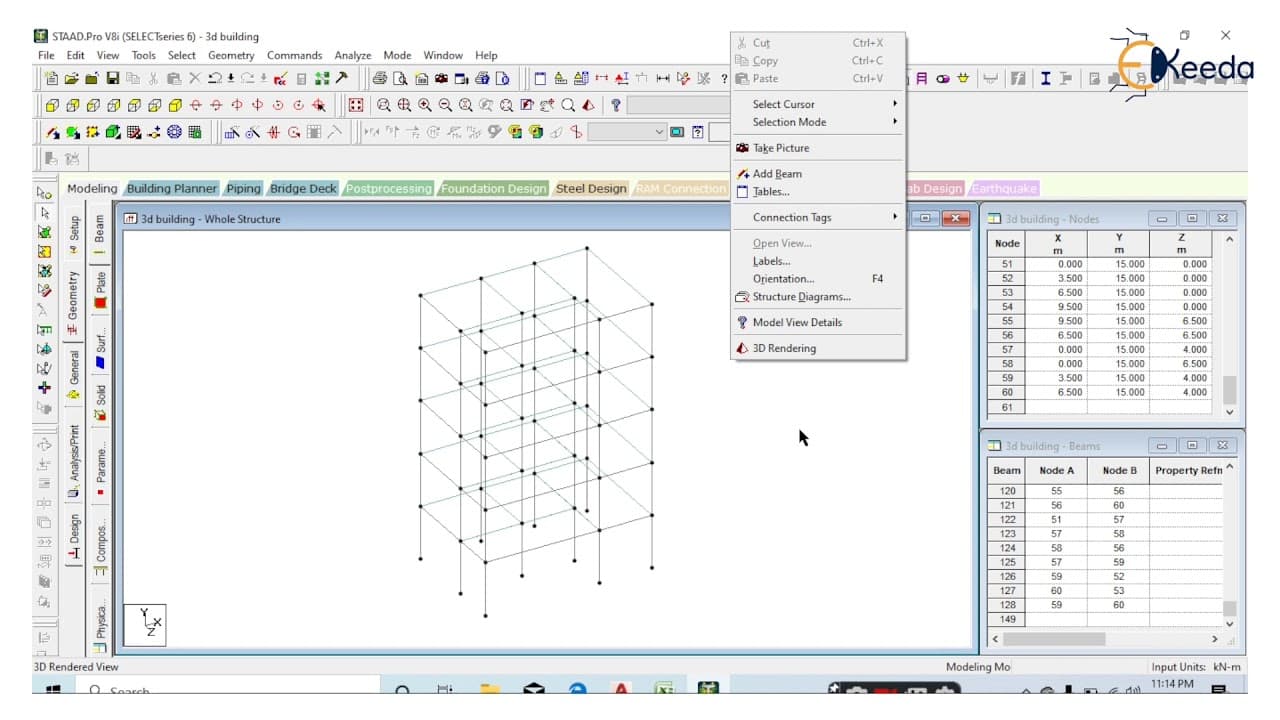

hey guys welcome back in this lecture we will learn how to create a geometry of three-dimensional building using grid system they've go to new project open a space frame right name is three-dimensional building select a location where do you want to save this file lengthen it is meter and force your radius kilonewton go to next and finish it's a pl... Read More

Key Insights

• 🏛️ Understanding the grid system is essential for creating a precise building model.
• ✈️ Setting up the plan on the XZ plane ensures proper alignment in the 3D model.
• 🤣 Customizing floor spacing and segments allows for creating varied building layouts.
• 😁 Beam nodes play a critical role in defining structural elements in the model.
• 🫵 Visualizing the building structure in 3D rendering provides a realistic view of the design.
• 🏛️ Practice with multiple examples helps in mastering building geometry creation.
• 🤣 Open-base structures can be created by adjusting the floor settings accordingly.

Questions & Answers

Q: What is the importance of setting up the plan on the XZ plane?

Setting up the plan on the XZ plane provides a reference point for creating a 3D building model accurately, ensuring consistency in the structure's dimensions and orientation.

Q: How do you create floors with specific spacing and segments?

Floors with specific spacing and segments are created by adjusting the values for spacing and segments in the software program, allowing for customization of the building's layout.

Q: What is the process of setting beam nodes in the building model?

Setting beam nodes involves placing nodes at specific points in the building plan to define the structural elements, such as beams and columns, ensuring proper connectivity and support in the model.

Q: How can you visualize the building structure in 3D rendering?

By selecting the entire building plan and applying 3D rendering, you can generate a visual representation of the building structure, enabling a realistic view of the design.

Summary & Key Takeaways

• The lecture teaches how to create a building geometry using a grid system in a software program.

• It emphasizes setting up the plan on the XZ plane and creating floors with specific spacing and segments.

• The process involves setting beam nodes, creating slabs, and visualizing the building structure in 3D rendering.
