Block Diagram Reduction Technique - Transfer Function - Control Systems

TL;DR

Learn how to simplify complex block diagrams and determine the transfer function using the block diagram reduction technique.

Transcript

hello friends in this video we are going to study how we can determine a transfer function using a block diagram reduction technique a complicated block diagram it may consist of many loops and these loops they are interconnected with each other and also a block diagram it can have many number of feedback loops so a block diagram is having many num... Read More

Key Insights

• 🚫 The block diagram reduction technique helps simplify complex block diagrams and determine the overall transfer function of a system.
• 🚫 Rules such as calculating block outputs, reducing blocks in series and parallel, interchanging summing points, and shifting takeoff points are essential in simplifying block diagrams.
• 📏 Feedback loops can be replaced by a single block with a transfer function obtained using the feedback rule.
• 😥 Shifting summing points and takeoff points helps in rearranging block diagrams for easier reduction.

Questions & Answers

Q: What is the first rule of the block diagram reduction technique?

The first rule is about calculating the output of a block, which is equal to the transfer function of the block multiplied by the input to the block. It helps us determine the output of a block in a block diagram.

Q: How are blocks connected in series reduced?

Blocks connected in series can be replaced by a single block with a transfer function equal to the multiplication of the individual transfer functions. This simplifies the block diagram and helps find the overall transfer function of the system.

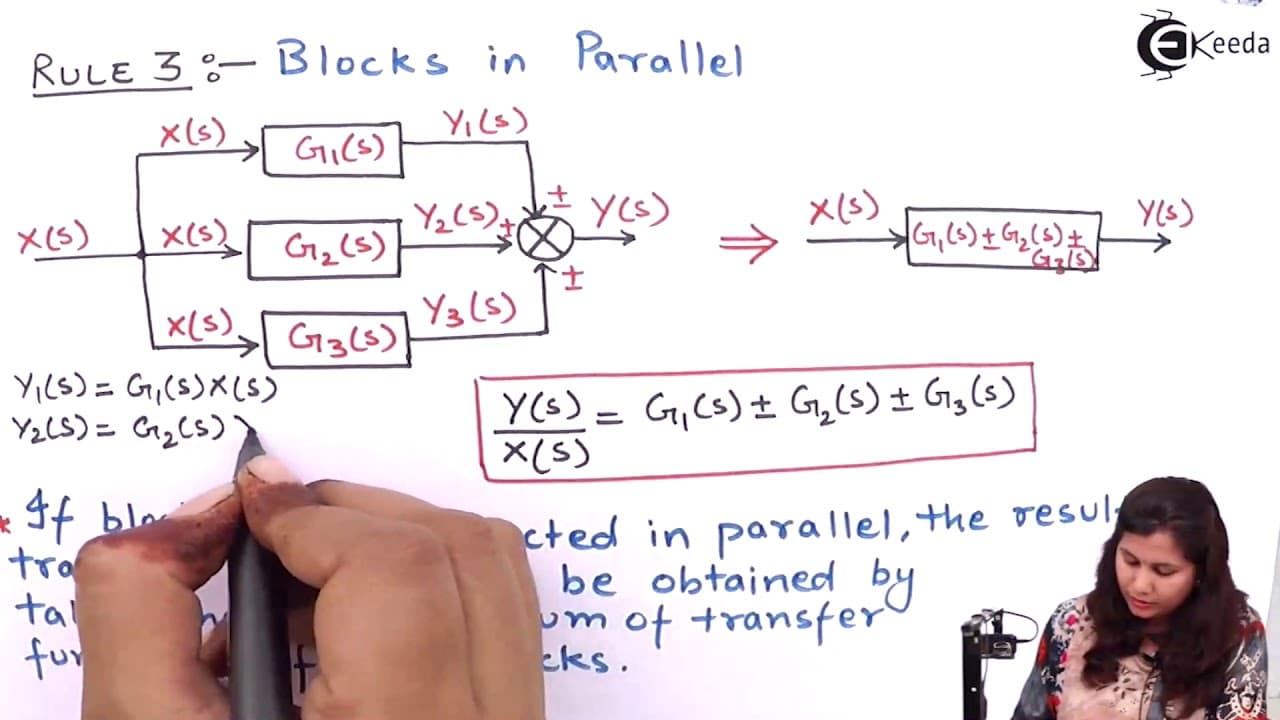

Q: How are blocks connected in parallel reduced?

Blocks connected in parallel can be replaced by a single block with a transfer function equal to the algebraic sum of the individual transfer functions. The signs of the transfer functions determine whether to add or subtract. This simplifies the block diagram.

Q: How are summing points and takeoff points rearranged in a block diagram?

Summing points can be interchanged without affecting the output. Takeoff points can be shifted after a block by dividing the takeoff signal by the transfer function of the block. Takeoff points can also be shifted before a block by multiplying the takeoff signal with the transfer function of the block.

Summary & Key Takeaways

• Block diagrams can be complicated with interconnected loops and feedback loops, making it difficult to determine the overall transfer function of a system.

• The block diagram reduction technique involves rearranging and applying rules to simplify block diagrams and find the transfer function.

• Rules include calculating the output of a block, reducing blocks in series and parallel, interchanging summing points, shifting takeoff points, and more.
