Full Wave Rectifiers

TL;DR

A full wave rectifier converts AC voltage to DC voltage, allowing current to flow in one direction, resulting in a pulsating DC wave.

Transcript

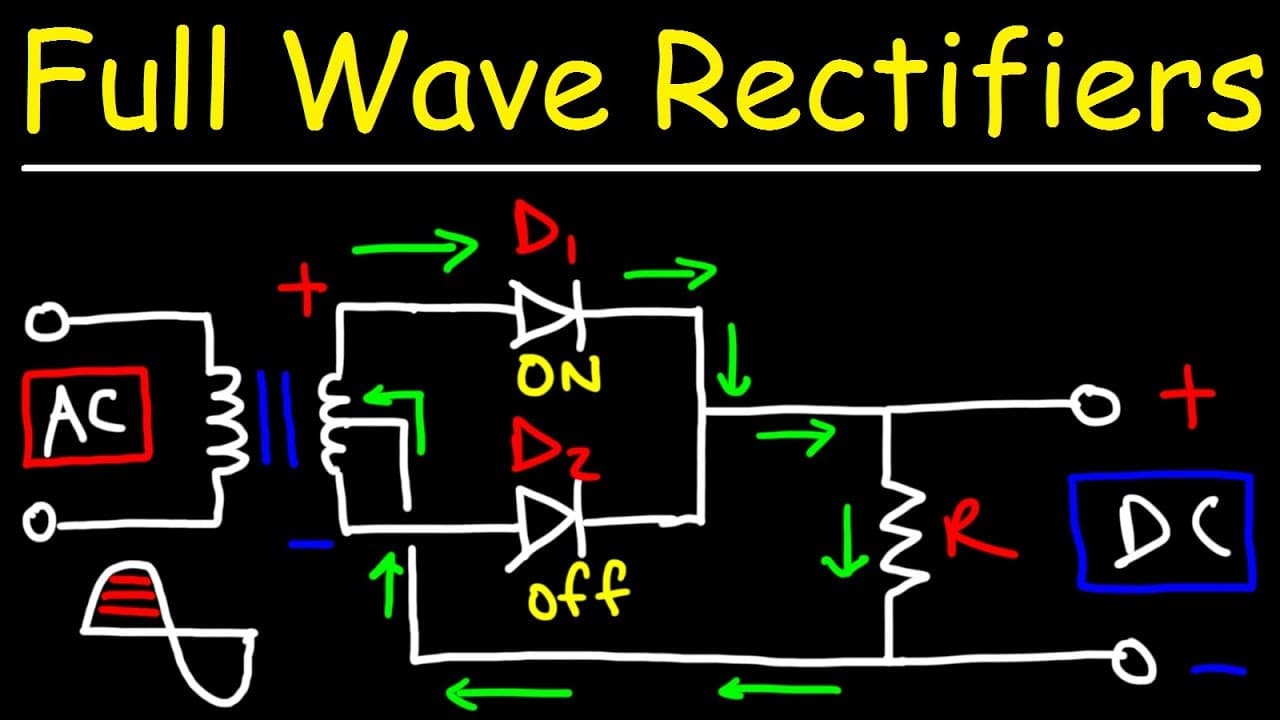

let's begin our discussion with the circuit diagram of a full wave rectifier so here we have a transformer and on the left side of the transformer that is the primary side and that's where we're going to put our ac voltage so this is vp the primary voltage and this is vs the secondary voltage now we're going to use a center tab transformer so we're... Read More

Key Insights

• 👋 A full wave rectifier circuit consists of a center-tap transformer, diodes, and a resistor.
• 💐 During the positive half cycle, current flows through one diode, and during the negative half cycle, it flows through the other.
• 💐 The current always flows from a positive side to a negative side, resulting in a DC output.
• ⚡ The voltage across the resistor can be calculated by considering the transformer turns ratio and diode voltage drops.

Questions & Answers

Q: How does a full wave rectifier convert AC voltage to DC voltage?

A full wave rectifier uses diodes to allow current to flow in one direction during the positive and negative half cycles of the AC wave, resulting in a DC output.

Q: What is the purpose of the resistor in a full wave rectifier circuit?

The resistor limits the current and helps stabilize the output voltage of the rectifier circuit.

Q: What is the difference between a full wave rectifier and a half wave rectifier?

A full wave rectifier allows current to flow through both halves of the AC wave, resulting in a pulsating DC output, while a half wave rectifier only utilizes one half, resulting in a less efficient output.

Q: How can the average DC voltage across the resistor in a full wave rectifier be calculated?

The average DC voltage can be calculated using the formula: Vavg = (2 * Vpeak) / π, where Vpeak is the peak voltage across the resistor.

Summary & Key Takeaways

• Full wave rectifiers use a center-tap transformer, diodes, and a resistor to convert AC voltage to DC voltage.

• During the positive half cycle of the AC wave, current flows through one diode, and during the negative half cycle, it flows through the other diode.

• The current always flows from a positive side to the negative side, resulting in a DC output.
