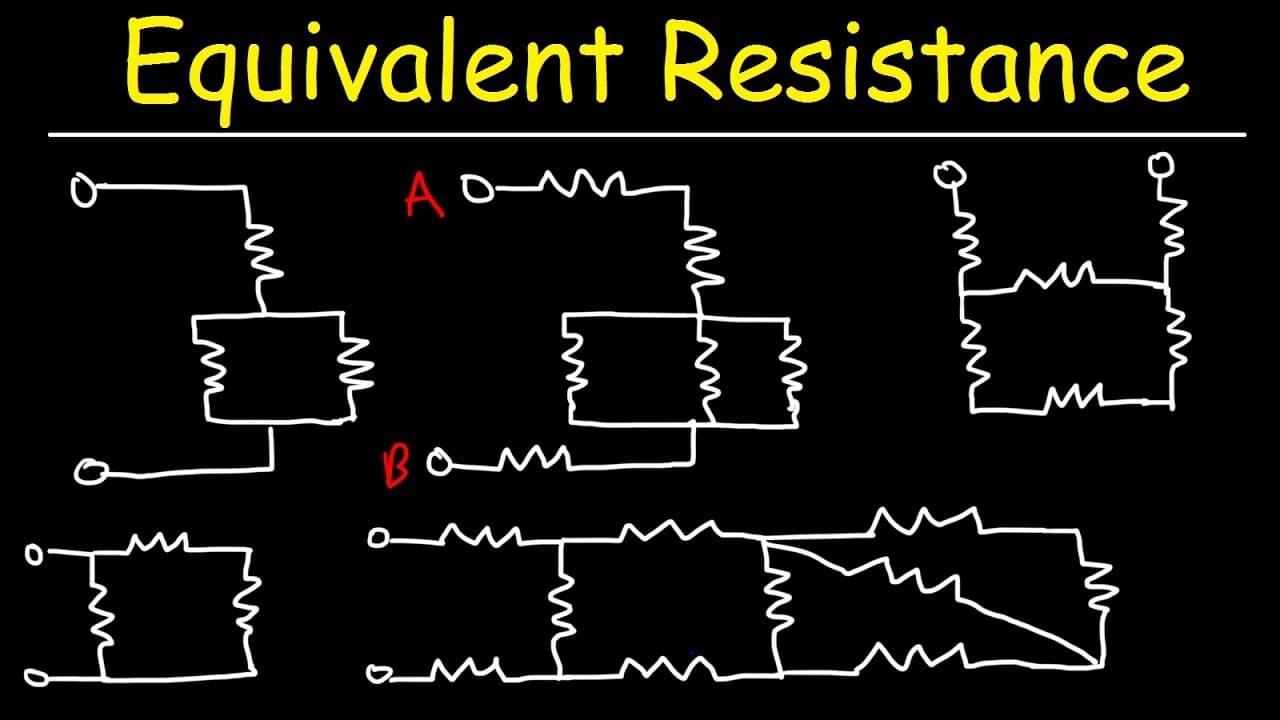

Equivalent Resistance of Complex Circuits - Resistors In Series and Parallel Combinations

TL;DR

Calculate the total resistance in a circuit by adding resistors in series and finding the reciprocal sum in parallel.

Transcript

in this video we're going to focus on calculating the equivalent resistance of a circuit so let's say if you have two resistors in series let's say this is a 10 ohm resistor and this is a 20 ohm resistor what is the equivalent resistance or the total resistance of the circuit in a series circuit the total resistance is simply the sum of all the res... Read More

Key Insights

• 🪜 In a series circuit, resistances add up to find the total resistance.
• 🪜 In a parallel circuit, resistances invert and add reciprocally to find the equivalent resistance.
• ❓ The formula 1/(1/r1 + 1/r2 + 1/r3 + ...) is used to find the equivalent resistance in a parallel circuit with three or more resistors.
• ❓ When reducing parallel resistors, combine resistors with the same value first.
• 🆘 Redrawing the circuit can help visualize and solve complex circuit problems.
• ❓ The concept of series and parallel combinations of resistors can be applied to more complex circuits.
• 💐 The total resistance of a circuit affects the flow of current through it.

Questions & Answers

Q: How do you calculate the total resistance in a series circuit?

In a series circuit, you add up the resistances of all the resistors to find the total resistance.

Q: What is the equivalent resistance in a parallel circuit with two resistors of the same value?

In a parallel circuit with two resistors of the same value, the equivalent resistance is half that value.

Q: How do you find the equivalent resistance in a parallel circuit with three resistors?

To calculate the equivalent resistance in a parallel circuit with three resistors, use the formula: 1/(1/r1 + 1/r2 + 1/r3).

Q: Can you replace multiple resistors in parallel with a single equivalent resistor?

Yes, if multiple resistors are in parallel and have the same value, they can be replaced with a single resistor with that value.

Summary & Key Takeaways

• In a series circuit, the total resistance is the sum of all resistors.

• In a parallel circuit with two resistors of the same value, the equivalent resistance is half that value.

• In a parallel circuit with three or more resistors, the equivalent resistance is found using the formula: 1/(1/r1 + 1/r2 + 1/r3 + ...).
