Rotational Dynamics - Basic Introduction

TL;DR

Calculate the angular acceleration of a spinning disk and the speed of a falling block in a pulley system.

Transcript

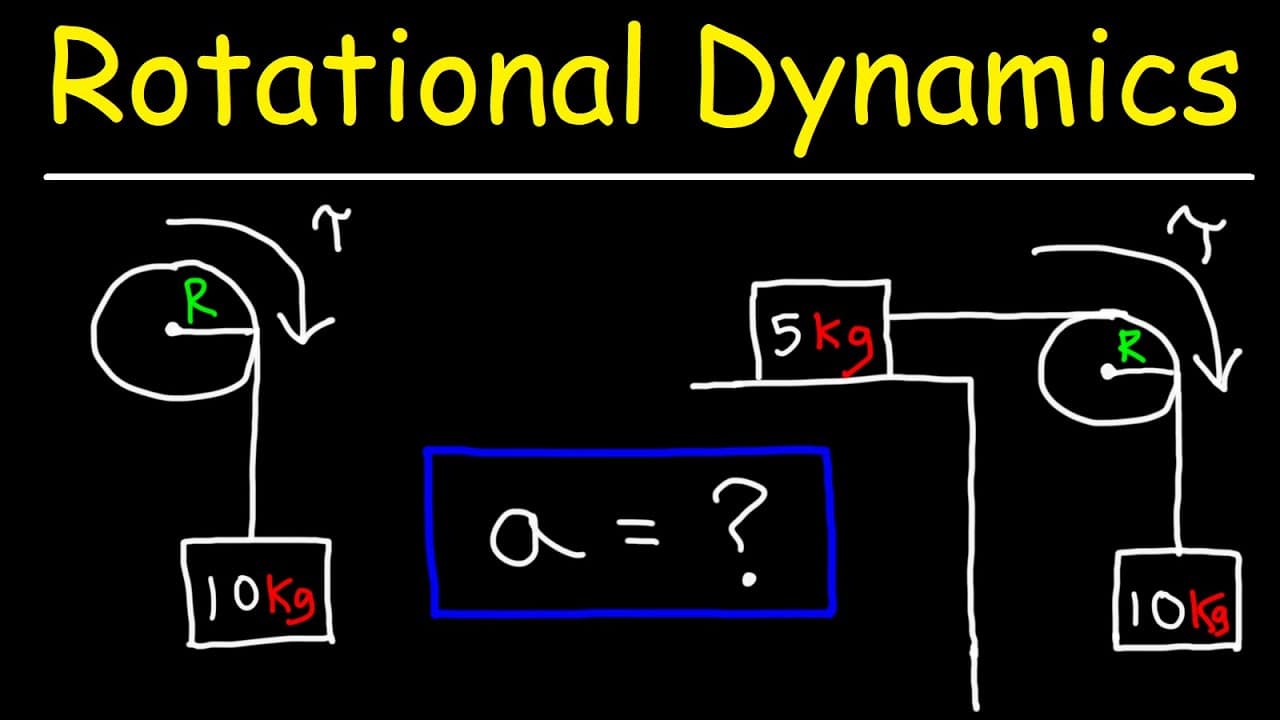

a 10 kilogram block is attached to a 20 kilogram pulley which is a solid disk of radius 2 meters the block is released from rest causing the disc to spin what is the angular acceleration of the disk and how fast is the block falling after eight seconds so how can we calculate the angular acceleration of the disk what do we need to do well let's ide... Read More

Key Insights

• 💽 The angular acceleration of a spinning disk can be calculated using the torque equation.
• 🏋️ The net force on a block in a pulley system can be determined by considering the weight force and tension force.
• 🐎 The final speed and distance fallen by a block in a pulley system can be found using the kinematic equations.

Questions & Answers

Q: How can the angular acceleration of the spinning disk be calculated in a pulley system?

The angular acceleration can be determined using the formula α = (m * g * r) / (I + m * r^2), where m is the mass of the block, g is the acceleration due to gravity, r is the radius of the disk, and I is the moment of inertia of the disk.

Q: What is the net force on the block in the y-direction?

The net force on the block in the y-direction is equal to the tension force (T) minus the weight force (mg), resulting in T = mg - ma, where a is the acceleration in the y-direction.

Q: How can the final speed of the falling block after 8 seconds be determined?

The final speed of the block can be calculated using the formula v = v0 + at, where v0 is the initial speed (which is 0 in this case), a is the acceleration (4.9 m/s^2), and t is the time (8 seconds).

Q: How far does the block fall after 8 seconds?

The distance fallen by the block can be found using the equation d = v0t + (1/2)at^2, where d is the distance, v0 is the initial velocity, a is the acceleration, and t is the time. Plugging in the values, the block falls a distance of 156.8 meters.

Summary & Key Takeaways

• A 10 kilogram block is attached to a 20 kilogram pulley, causing the pulley to spin when the block is released.

• The angular acceleration of the pulley can be calculated using torque, with the formula α = (m * g * r) / (I + m * r^2).

• After 8 seconds, the block falls with a speed of -39.2 m/s and a displacement of 156.8 meters.
