Molecular Geometry & VSEPR Theory - Basic Introduction

TL;DR

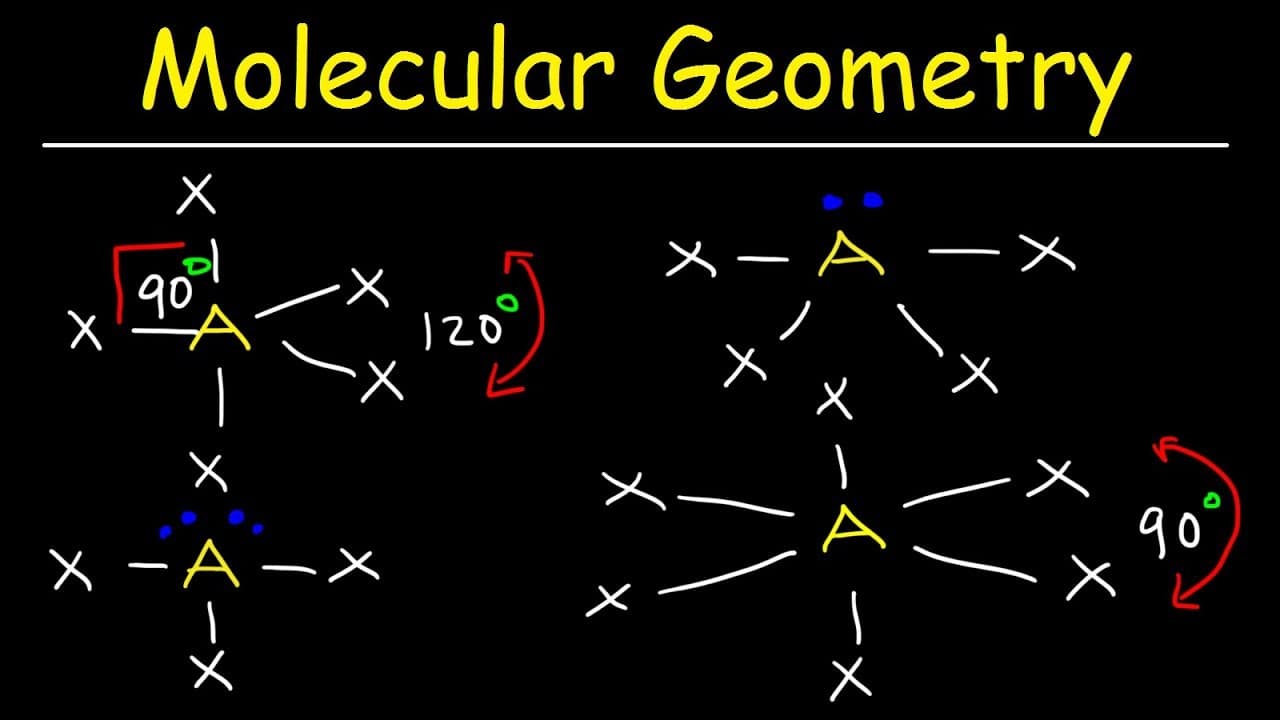

This video explains the molecular geometry of various structures, including trigonal bipyramidal, seesaw, t-shaped, octahedral, square pyramidal, and square planar, providing examples and tips to determine the number of lone pairs.

Transcript

now this video is a continuation of another video i've created on the vesper theory uh basic introduction you could find on youtube so we're going to focus on the molecular geometry of the trigonal bipyramidal structure now this structure has a central atom and it has five other atoms attached to it so you have one on top and one on the bottom now ... Read More

Key Insights

• ❎ The video discusses the molecular geometries of trigonal bipyramidal, seesaw, t-shaped, octahedral, square pyramidal, and square planar structures.
• ❓ It provides examples of molecules for each geometry, such as phosphorus pentachloride for trigonal bipyramidal and sulfur tetrafluoride for seesaw.
• 🫀 Tips are given to determine the number of lone pairs on the center atom using the valence electron count and the multiple of eight rule.
• 🔺 The bond angles for each structure are highlighted, including 180 degrees for trigonal bipyramidal and 90 degrees for octahedral.

Questions & Answers

Q: How can the molecular geometry of a trigonal bipyramidal structure be described?

The trigonal bipyramidal structure has a central atom with five attached atoms, with the bond angle between the top and bottom atom being 180 degrees. The other three atoms form a trigonal planar shape with bond angles of 120 degrees.

Q: What is an example of a molecule with a trigonal bipyramidal structure?

Phosphorus pentachloride (PCl5) is a good example of a molecule with a trigonal bipyramidal structure. Phosphorus acts as the central atom, with two chlorine atoms in the z direction and three chlorine atoms in the xy plane, each containing three lone pairs.

Q: How does the seesaw molecular geometry differ from the trigonal bipyramidal structure?

In the seesaw structure, the central atom has a lone pair along with four other attached atoms. The arrangement can be depicted as a central atom with two opposite atoms forming a linear shape and the remaining two atoms forming a V shape.

Q: Provide an example of a molecule with seesaw molecular geometry.

Sulfur tetrafluoride (SF4) is an example of a molecule with seesaw molecular geometry. Sulfur acts as the central atom, with one lone pair and four attached fluorine atoms, each containing three lone pairs.

Q: How can the number of lone pairs on the center atom be determined in a molecule?

To determine the number of lone pairs on the center atom, count the valence electrons of the atoms involved. Subtract the total number of electrons used in bonds and then divide by 2 to get the number of lone pairs. The multiple of eight rule can be applied to determine the number of electrons in the molecule.

Q: What are the features of an octahedral molecular structure?

The octahedral structure consists of a central atom with six other atoms arranged in a symmetrical manner. The bond angle between atoms is 90 degrees, and the atoms can be viewed as being in the z direction or the xy plane.

Q: Give an example of a molecule with octahedral molecular geometry.

Sulfur hexafluoride (SF6) is an example of a molecule with octahedral molecular geometry. Sulfur is attached to six fluorine atoms in a symmetrical manner.

Q: How does the square pyramidal molecular structure differ from the octahedral structure?

The square pyramidal structure is similar to the octahedral structure, but one of the atoms is replaced with a lone pair. Therefore, instead of having six atoms attached to the center, there are five atoms attached along with one lone pair.

Summary & Key Takeaways

• The video discusses the molecular geometry of a trigonal bipyramidal structure, highlighting the bond angles between atoms and providing an example using phosphorus pentachloride.

• It introduces the seesaw structure, explaining its central atom with a lone pair and four other attached atoms, with an example using sulfur tetrafluoride.

• The video covers the t-shaped structure, showcasing its atom arrangement and lone pairs, with iodine trifluoride as an example.

• It explains the octahedral structure, emphasizing the bond angles and providing an example using sulfur hexafluoride.

• The square pyramidal and square planar structures are also discussed, including their features and examples with iodine pentafluoride and xenon tetrafluoride, respectively.
