SR Latch Circuit - Basic Introduction

TL;DR

The video explains the truth table of the NOR gate and introduces the SR latch circuit, which is a sequential circuit with memory.

Transcript

today we're going to talk about a circuit known as the sr latch but before we get into that let's review the truth table of the nor gate so if you remember this is the electrical symbol for the nor gate we have inputs a and b with the output which we'll call c now the way i remember this particular truth table as i think about the or gate if you re... Read More

Key Insights

• 🔬 The NOR gate has a truth table opposite to that of the OR gate, producing a 1 output only when both inputs are 0.
• 🔬 The SR latch circuit, consisting of two interconnected NOR gates, is a sequential circuit that has memory.
• 🍝 The output of the SR latch is not solely determined by the present input but also depends on the past history of the circuit.
• 🆘 The set button (S) is used to set the output to 1, while the reset button (R) is used to reset the output to 0.
• 😑 Pressing both the set and reset buttons simultaneously is not allowed in the SR latch circuit.

Questions & Answers

Q: What is the difference between the NOR gate and the OR gate?

The NOR gate is the opposite of the OR gate in terms of its truth table. While the OR gate produces an output of 1 if either input is 1, the NOR gate produces an output of 1 only when both inputs are 0.

Q: How does the SR latch circuit differ from a combinational circuit?

Unlike a combinational circuit, the output of the SR latch depends not only on the present input values but also on the past output and input values. This gives the SR latch memory and makes it a sequential circuit.

Q: Can you explain the purpose of the set and reset buttons in the SR latch circuit?

The set button (S) is used to set the output (Q) to 1, while the reset button (R) is used to reset the output to 0. These buttons control the state of the latch and determine the output based on the input history.

Q: Why should the set and reset buttons be pressed separately and not together?

Pressing both the set and reset buttons simultaneously is not allowed because it violates the intended behavior of the SR latch. In this situation, both outputs (Q and Q bar) would be 0, which contradicts the complementary nature of the outputs.

Summary & Key Takeaways

• The video starts by reviewing the truth table of the NOR gate and its opposite behavior to the OR gate.

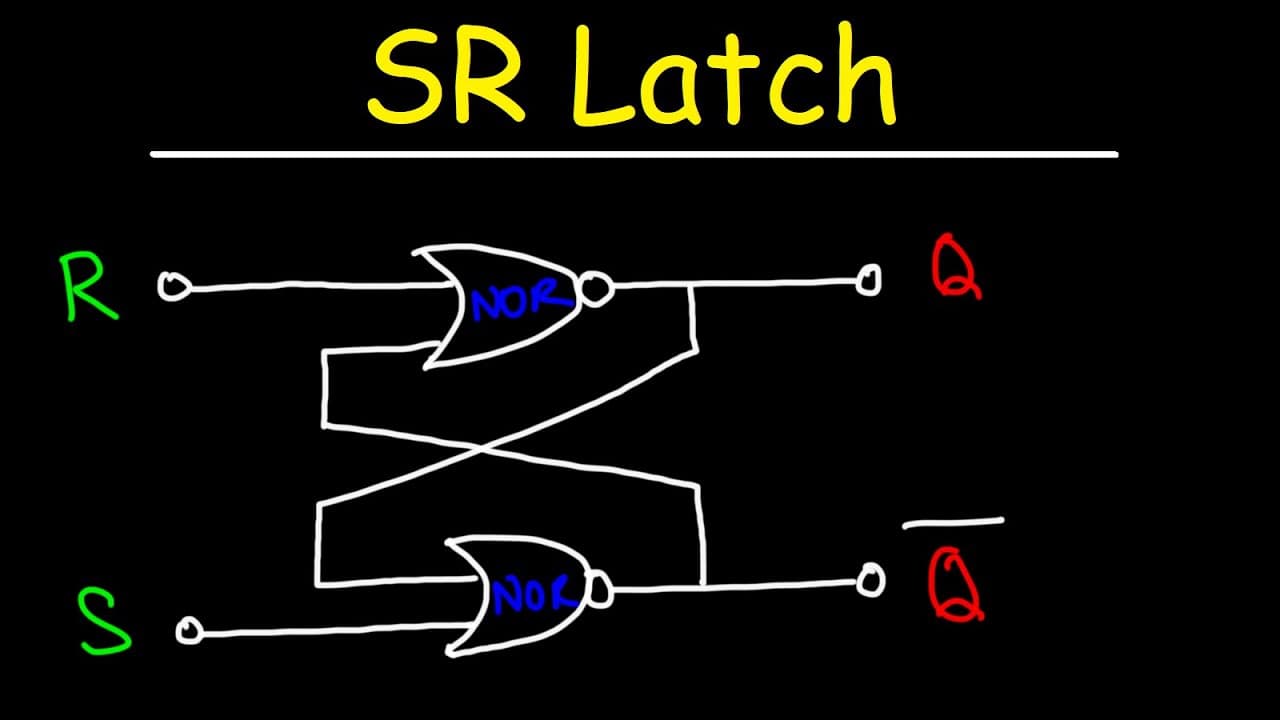

• The SR latch circuit is composed of two NOR gates, with each output connected to the input of the other gate. This creates a sequential circuit with memory.

• Unlike combinational circuits, the output of the SR latch depends not only on the present input but also on the past history of the circuit.
