Filtering for Puck - Teaching a Robotic Arm to Play Air Hockey p.2

TL;DR

Using an overhead camera and image analysis, the goal is to detect the puck in order to play air hockey with a robotic arm.

Transcript

what is going on everybody and welcome to part two of our playing with robotic arm series where we're going to at least be starting with attempting to play air hockey so there's a few questions that come into play right out of the gate which is but you know how are we gonna pass data basically to the arm in order to actually understand like what's ... Read More

Key Insights

• 🎥 An overhead camera is preferred over an onboard camera for detecting the puck in air hockey.
• 🕵️ Color filtering can be an effective method for detecting the puck based on its distinct color.
• 👱 Processing camera data quickly is essential for real-time air hockey gameplay.
• 🦾 The next steps involve cleaning up the edges and finding the center of the puck for accurate data transmission to the robotic arm.

Questions & Answers

Q: What are the challenges in passing data to the robotic arm?

One of the main challenges is understanding the position of the puck. The video suggests using an overhead camera and image analysis to detect the puck's location.

Q: What methods can be used to detect the puck?

Object detection, circle detection, and color filtering are discussed as different methods for detecting the puck. The video focuses on color filtering as the chosen method for this project.

Q: How is color filtering used to detect the puck?

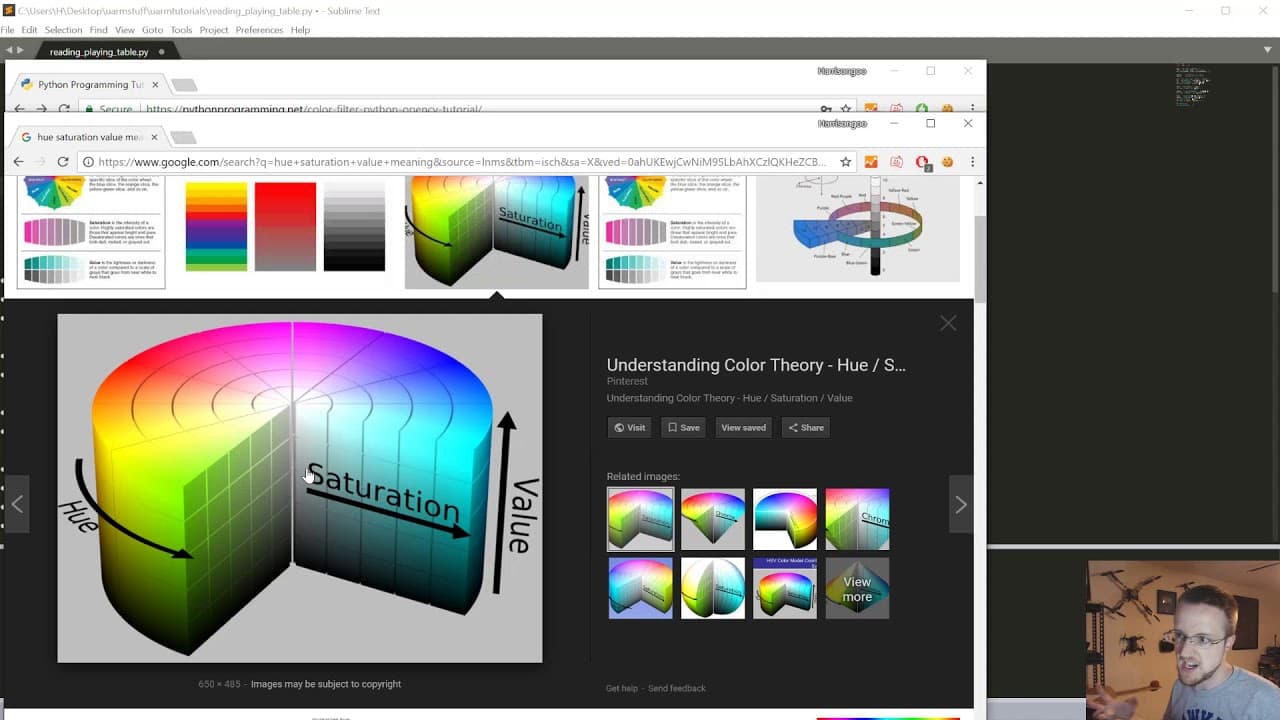

By using a specific color range, such as deep red, the video applies color filtering to identify the puck. This method filters out everything except the color of the puck.

Q: What is the importance of processing the camera data quickly?

Processing the camera data quickly is crucial for playing a live air hockey game. The faster the data is processed, the better the robotic arm can respond and play the game effectively.

Summary & Key Takeaways

• The content is about using an overhead camera to detect the position of the puck in order to play air hockey with a robotic arm.

• Different methods of detecting the puck are discussed, including object detection, circle detection, and color filtering.

• The video demonstrates the use of color filtering and image blurring techniques to filter out the puck from the background.

• The next steps involve cleaning up the edges and finding the center of the puck to provide accurate data for the robotic arm.
