How to Use Open3D for 3D Data Processing?

TL;DR

Open3D is a powerful open-source library used for 3D data processing and visualization. It enables users to perform tasks like scene reconstruction and surface alignment, utilizing point clouds to create 3D models. This tutorial covers key functionalities, including environment setup, point cloud generation, and mesh manipulation.

Transcript

hello everyone this is welcome to my channel so guys in this video i'll show you how we can use open3d library which was introduced by the researchers of interlab so this open3d is an open source library and we can use it for processing 3d uh data sets okay and there are various kind of tasks which we can perform using open3d for example you can pe... Read More

Key Insights

• 📚 Open3D is an open-source library for processing 3D data sets and can be used for tasks like scene reconstruction, surface alignment, and 3D visualization.
• 💻 Open3D ML is an extension of Open3D that allows for 3D machine learning tasks, using machine learning tools for 3D data processing.

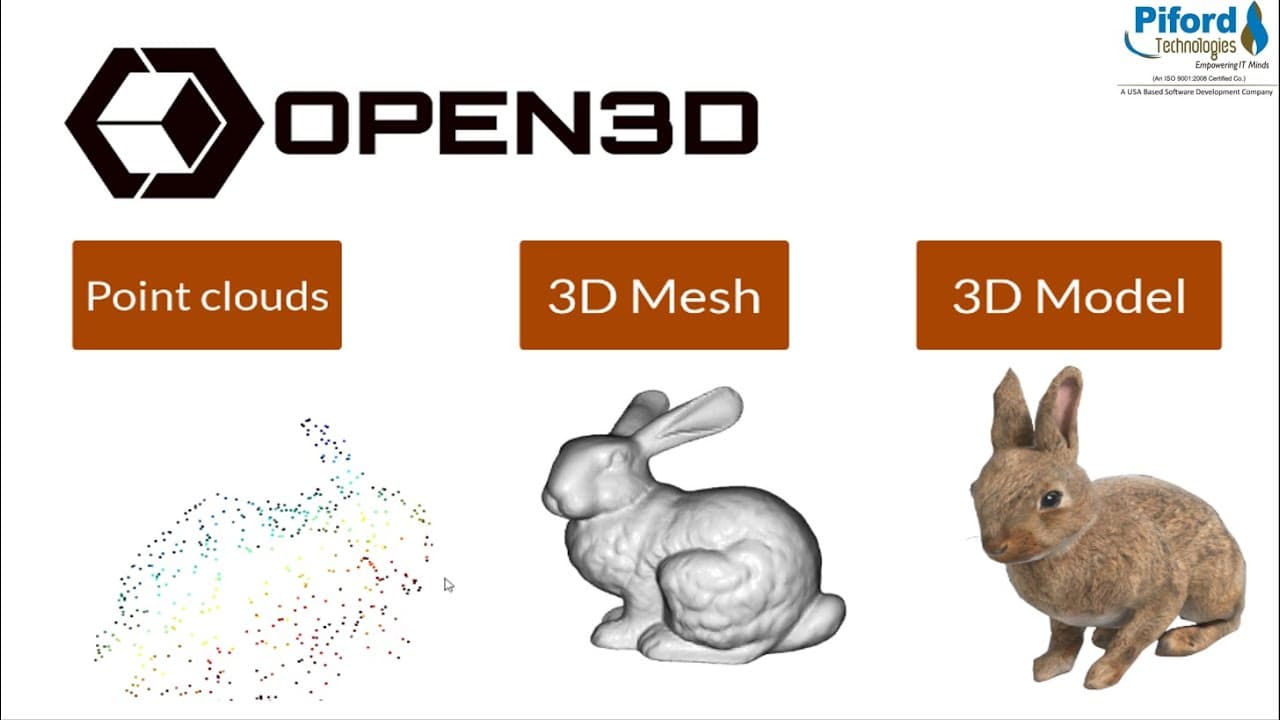

• 🔍 Point clouds are collections of points that represent objects, and they can be used in virtual reality, object rendering, 3D printing, and 3D gaming.
• 📊 3D meshes are structural bases for 3D models, consisting of vertices, edges, and faces that determine the model's height, width, and depth.
• 🎮 3D models are 3D images used in animations, video games, movies, architecture, and commercial advertisements.
• ⚙️ Point clouds can be generated using 3D laser scanners or lidars, which capture 3D coordinates of objects.
• 📂 Different file extensions like PCD, XYZ, and PLY can store point cloud and mesh data, with PLY supporting both.
• 🔬 Voxel down sampling is a pre-processing technique that reduces the complexity and storage size of 3D point clouds by averaging points within each voxel. Note: Some paragraphs did not contain relevant content for generating insights.

Questions & Answers

Q: What can you do with Open3D library?

The Open3D library allows you to perform tasks such as scene reconstruction, surface alignment, and 3D visualization. Additionally, you can use Open3D ML, an extension of Open3D, for 3D machine learning tasks.

Q: How can you generate point clouds?

Point clouds can be generated using 3D laser scanners or lidars, which capture the 3D coordinates of points in an object or environment.

Q: What is the purpose of voxel down sampling?

Voxel down sampling is a preprocessing task that reduces the complexity and size of 3D data by averaging the points within a voxel, resulting in faster processing and reduced storage requirements.

Q: How can you crop and color a specific object in a 3D model using Open3D library?

You can define the points of the desired object in a JSON file, read the file using the Open3D library's read selection polygon volume method, and visualize the cropped object. Additionally, you can change the color of the object and plot bounding boxes around it.

Summary & Key Takeaways

• Open3D is an open-source library for processing 3D data sets, offering functions for tasks like scene reconstruction and surface alignment.

• Point clouds are collections of points that represent objects and can be used to create 3D meshes and models.

• 3D meshes are the structural bases of 3D models, consisting of vertices, edges, and faces, which determine the model's dimensions.
