Alternating Current vs Direct Current - Rms Voltage, Peak Current & Average Power of AC Circuits

TL;DR

This video explains the difference between DC and AC current, provides formulas for power calculations, and demonstrates how to calculate peak voltage and RMS current.

Transcript

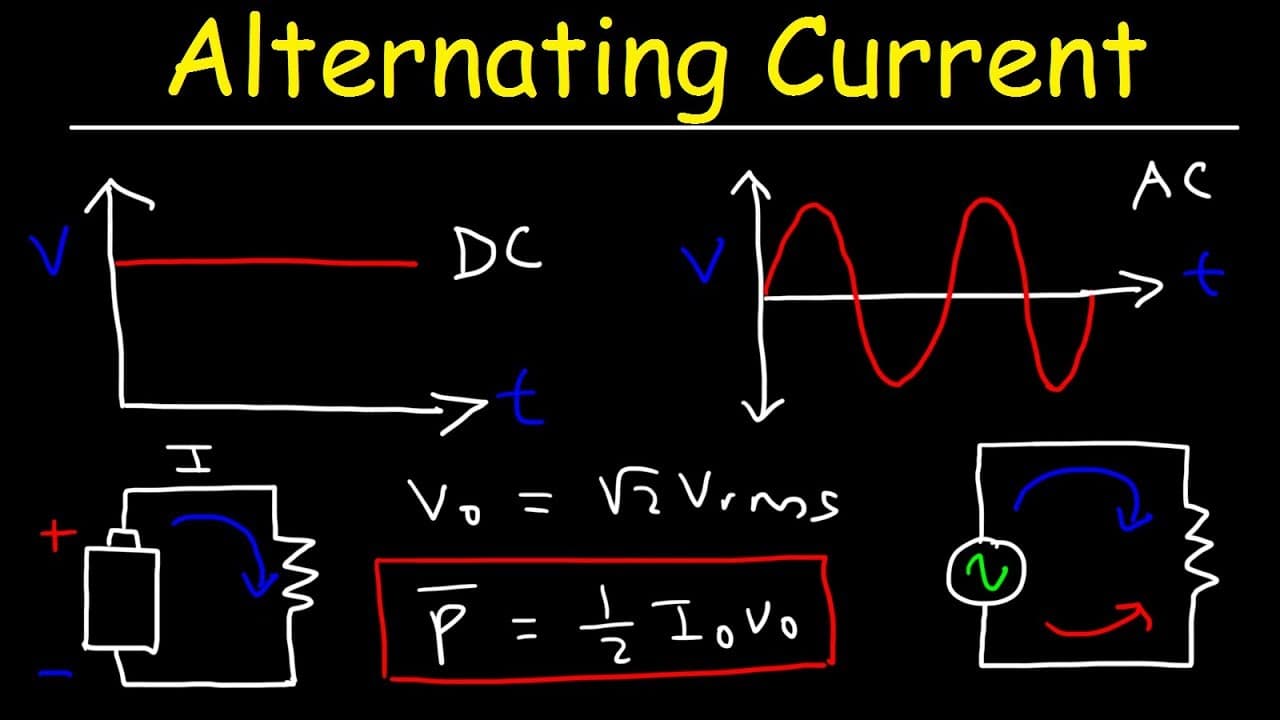

now before we go over this problem let's talk about the difference between dc current and ac current dc represents direct current ac is alternating current so if you graph these two let's say if you plot voltage versus time or even current versus time dc current has a constant voltage and therefore constant current in the ac circuit the voltage wil... Read More

Key Insights

• ⚡ DC current has a constant voltage and current, while AC current varies in a sinusoidal function.
• ⚡ The peak voltage in an AC circuit is equal to the RMS voltage multiplied by the square root of 2.
• 🙊 The RMS current in an AC circuit is equal to the peak current divided by the square root of 2.
• ✊ The average power in an AC circuit is equal to the RMS voltage multiplied by the RMS current.
• ✊ The maximum power in an AC circuit is twice the value of the average power.
• ⚡ The peak voltage can also be calculated as the square root of 2 times the RMS voltage.
• ✊ The average power absorbed by a resistor is equal to the square of the RMS current multiplied by the resistance.

Questions & Answers

Q: What is the difference between DC and AC current?

DC represents direct current, where the voltage and current are constant. AC represents alternating current, where the voltage and current vary in a sinusoidal function.

Q: How can you calculate the peak voltage in an AC circuit?

The peak voltage can be calculated by multiplying the RMS voltage by the square root of 2.

Q: How do you calculate the RMS current from the peak current?

To calculate the RMS current, divide the peak current by the square root of 2.

Q: How can the average power in an AC circuit be calculated?

The average power can be calculated by multiplying the RMS voltage by the RMS current.

Summary & Key Takeaways

• The video discusses the difference between direct current (DC) and alternating current (AC) and how the voltage and current vary in each.

• It explains how to calculate the peak voltage and RMS current for a given circuit.

• The video also demonstrates power calculations using formulas and shows how the average power is half the maximum power in an AC circuit.

• Finally, it provides an example of calculating average power and peak voltage for a 10-ohm resistor.
