Diode Logic Gates - OR, NOR, AND, & NAND

TL;DR

The video explains the functioning of diode logic gates, specifically discussing the OR, NOR, AND, and NAND gates.

Transcript

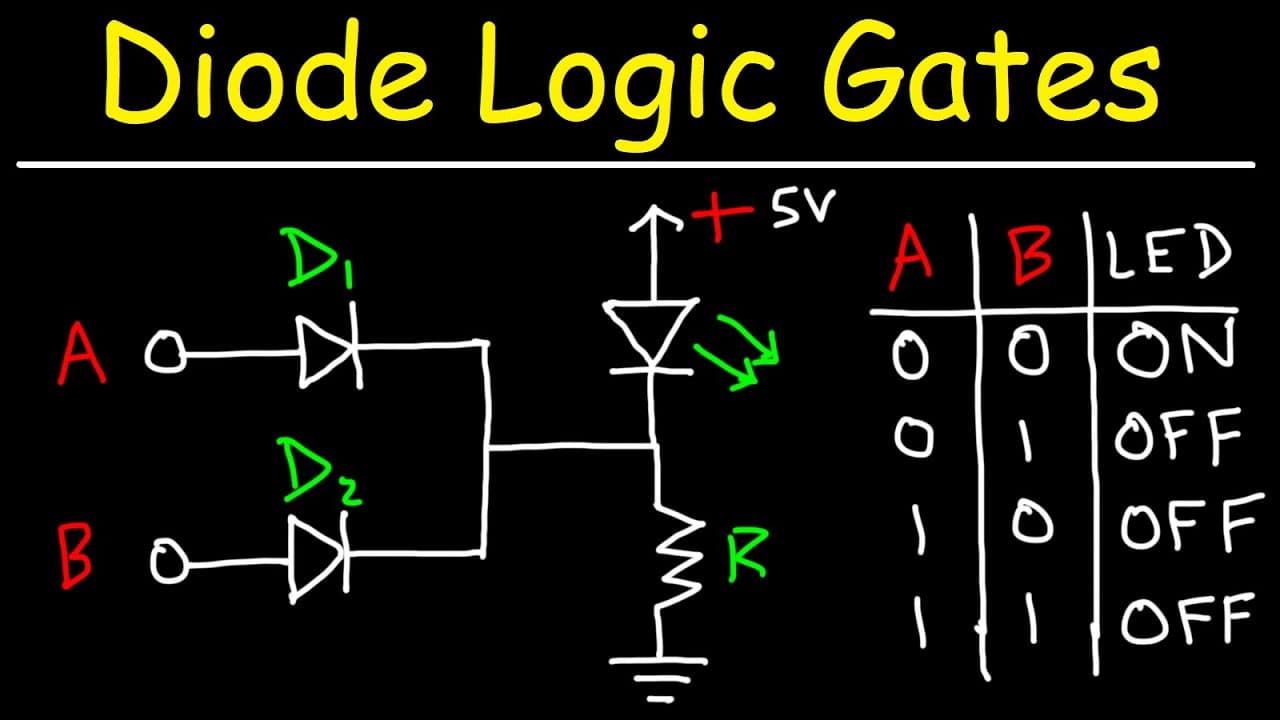

in this video we're going to talk about diode logic gates the first gate that we're going to talk about is the or gate what is the or gate well let me draw the circuit first so we're going to need two diodes at two different inputs so let's call this input a input b and this is going to be diode 1 dio2 next we need a resistor a current limiting res... Read More

Key Insights

• 😒 Diode logic gates use diodes, resistors, and LEDs to perform logical operations in electronic circuits.
• 👫 The OR gate activates the LED if either or both inputs are on, while the NOR gate activates the LED only when both inputs are off.
• 👫 The AND gate activates the LED only when both inputs are on, while the NAND gate activates the LED when either or both inputs are off.

Questions & Answers

Q: What is the purpose of a diode logic gate?

Diode logic gates are used to perform logical operations in electronic circuits, such as combining or negating input signals to produce an output signal.

Q: How does the OR gate work?

The OR gate activates the LED if either or both of its inputs are on (voltage is high). If both inputs are off (voltage is low), the LED remains off.

Q: What is the difference between the NOR gate and the OR gate?

The NOR gate is the opposite of the OR gate. While the OR gate activates the LED when either input is on, the NOR gate only activates the LED when both inputs are off.

Q: How does the AND gate function?

The AND gate activates the LED only when both of its inputs are on. If either or both inputs are off, the LED remains off.

Q: What is the significance of the NAND gate?

The NAND gate is the opposite of the AND gate. It activates the LED when either or both inputs are off, and it deactivates the LED only when both inputs are on.

Q: What happens if the voltage across the LED in the AND gate circuit is below 2 volts?

If the voltage across the LED is below 2 volts, it will not be activated, and the LED will remain off, even if both inputs are on.

Summary & Key Takeaways

• The video introduces diode logic gates, starting with the OR gate and explaining its circuit setup and truth table.

• The NOR gate, which is the opposite of the OR gate, is discussed next, along with its circuit and truth table.

• The video then moves on to the AND gate, explaining its circuit setup and how it only activates the LED when both inputs are on.

• Lastly, the NAND gate is introduced, which is the opposite of the AND gate, and its circuit and operation are explained.
