Physics, Torque (6 of 13) Compound Wheel

TL;DR

This video explains how to calculate torque and determine the direction of rotation for a compound wheel with two forces applied at different angles.

Transcript

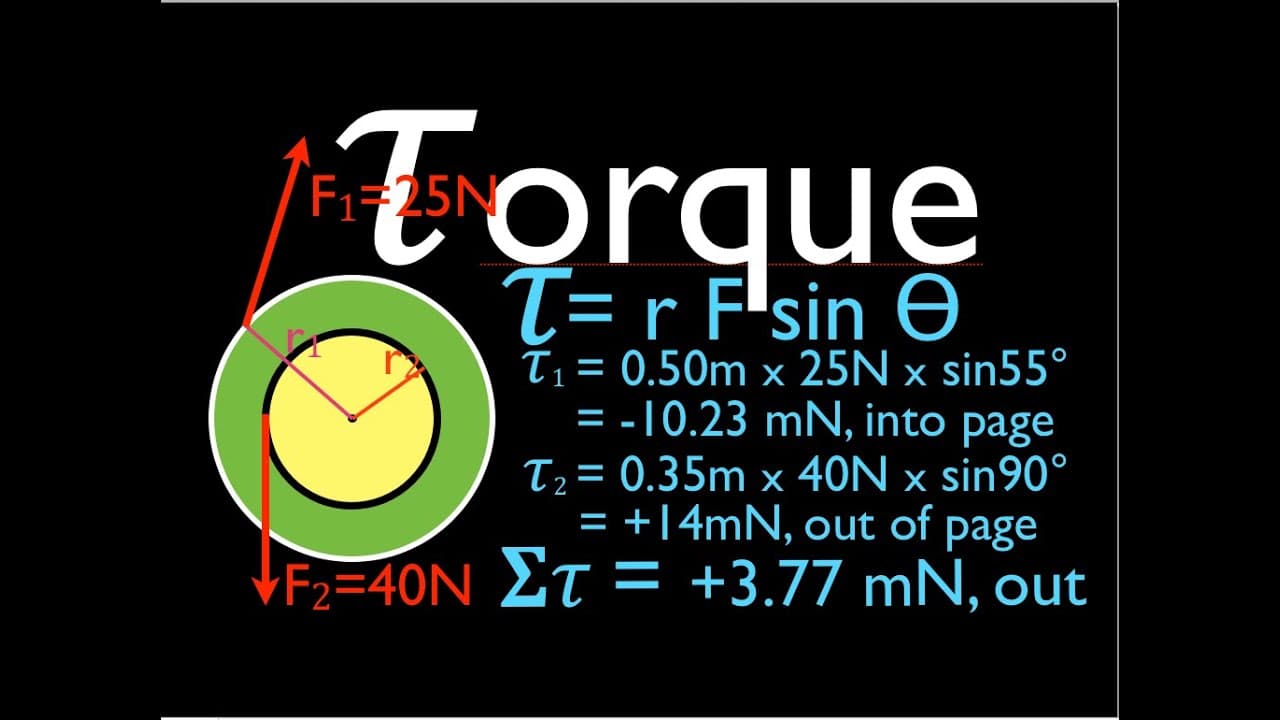

okay in today's video we're going to go over another problem involving torque and this video is called the compound wheel and why is this compound wheel because it's one wheel that is actually made up of two wheels we have one wheel is the green wheel right here this green disc represents one of the two wheels this green disc has an radius of 0.5 M... Read More

Key Insights

• 🧑‍🦼 A compound wheel consists of two wheels attached to each other, rotating about a common axis.
• 🆓 Torque is calculated using the formula Torque = R * F * sin(θ), where R is the distance from the axis of rotation, F is the force magnitude, and θ is the angle between the force and the radial vector.
• 🔄 The direction of rotation is determined by the sign of the torque, with negative torque causing clockwise rotation and positive torque causing counterclockwise rotation.

Questions & Answers

Q: What is a compound wheel and how does it differ from a regular wheel?

A compound wheel is made up of two wheels attached to each other, while a regular wheel consists of a single circular disc.

Q: How is torque calculated in this scenario?

Torque is calculated using the equation Torque = R * F * sin(θ), where R is the distance from the axis of rotation to the force's point of application, F is the force magnitude, and θ is the angle between the radial vector and the force.

Q: How does the angle between the force and the radial vector affect the torque?

The angle determines the direction of rotation. If the angle is less than 90°, the torque is negative and causes clockwise rotation. If the angle is 90° or greater, the torque is positive and causes counterclockwise rotation.

Q: Why do we multiply the force by the sine of the angle in the torque equation?

Multiplying the force by the sine of the angle gives us the component of the force that is perpendicular to the wheel, which is responsible for producing torque.

Summary & Key Takeaways

• The video discusses a compound wheel made up of two wheels with different radii attached to each other, rotating about a common axis.

• Two forces are applied at the edges of the wheels at different angles.

• Torque produced by each force is calculated using the torque equation, and the individual torques are summed to determine the net torque and direction of rotation.
