Types of Follower Motion - Design of Cam and Followers - Machine Design - 2

TL;DR

Discussing different follower motions in cam design categorized into rise-dwell-fall and rise-fall configurations.

Transcript

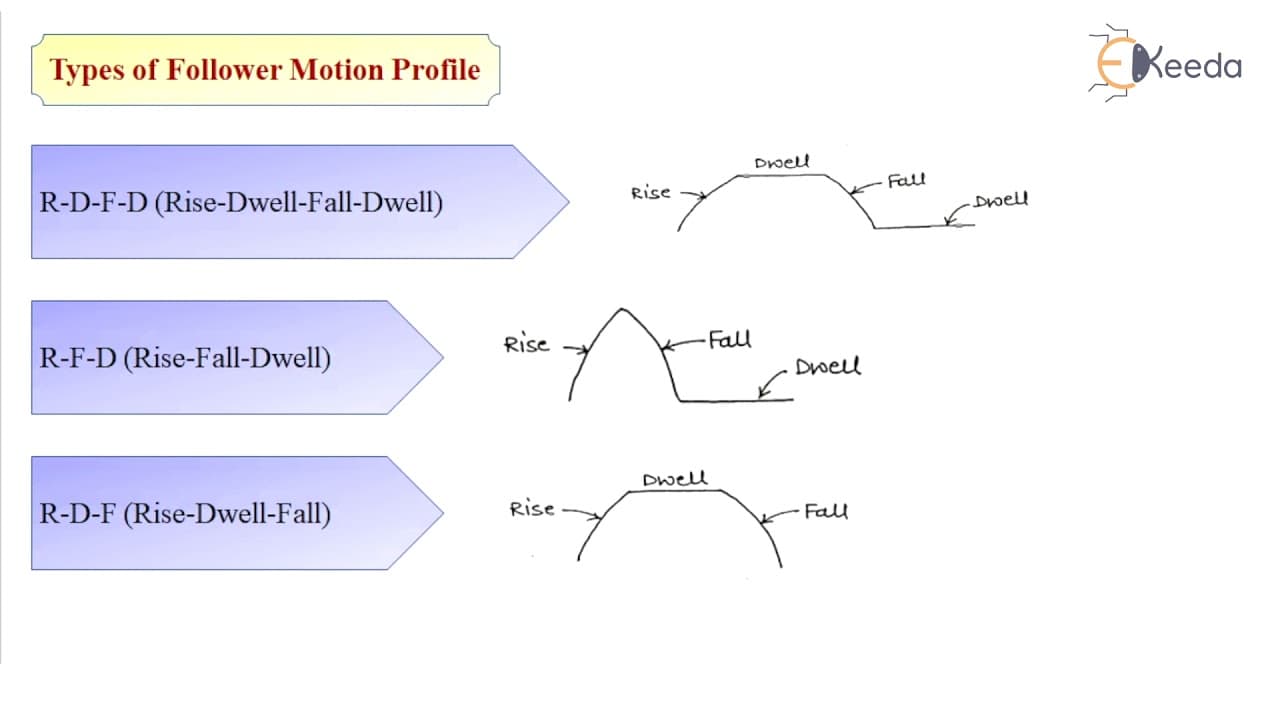

welcome student in this section we will discuss the types of the follower motions when we design the camp that time we need to consider a displacement diagram that is how the follower is moving accordingly the follower motions are classified the first type is our D F D stands for rise dwell fall and dwell now rise is a motion of the follower wherei... Read More

Key Insights

• 🦾 Follower motions in cam design are crucial for determining the motion profile of mechanical systems.
• 😮 DF and FB profiles categorize follower motions into specific sequences based on rise, dwell, and fall phases.
• 🖐️ Displacement diagrams play a vital role in understanding how followers move in relation to cam rotations.
• 🐪 Different types of follower motions, such as simple harmonic and cycloidal motions, offer unique motion characteristics in cam systems.
• 🦾 Understanding follower motion categories helps in optimizing cam designs for various mechanical applications.
• 🦾 Cam design requires precise consideration of follower motions to ensure efficient and accurate mechanical operations.
• 🤩 The cyclic nature of follower motions in cam systems plays a key role in determining overall system performance.

Questions & Answers

Q: What are the two main categories of follower motions in cam design?

The two main categories of follower motions are DF (rise-dwell-fall) and FB (rise-fall) profiles, each depicting different motion patterns in cam design.

Q: How is the DF profile different from the FB profile in terms of motion sequence?

The DF profile consists of rise, dwell, fall, and dwell motions, while the FB profile includes rise and fall motions without a dwell phase, showing distinct follower motion sequences.

Q: What is the significance of considering displacement diagrams in follower motion analysis?

Displacement diagrams help in understanding how the follower moves relative to the cam rotation, aiding in the classification and design of different follower motions in cam mechanisms.

Q: Can you elaborate on the types of follower motions mentioned in the video?

The types of follower motions discussed are simple harmonic, uniform acceleration, parabolic, cycloidal, cubic, and uniform velocity motions, each defining specific follower motion patterns in cam design.

Summary & Key Takeaways

• Follower motions in cam design are categorized into DF (rise-dwell-fall) and FB (rise-fall) profiles.

• The DF profile consists of rise, dwell, fall, and dwell motions.

• The FB profile includes rise and fall motions without a dwell phase.
