How to Use Thevenin's Theorem for Circuit Analysis

TL;DR

To use Thevenin's Theorem for circuit analysis, first calculate the Thevenin resistance by simplifying the circuit to find equivalent resistances. Then, determine the Thevenin voltage by measuring the potential difference across the load resistor. This allows for easy calculation of the current flowing through the load resistor.

Transcript

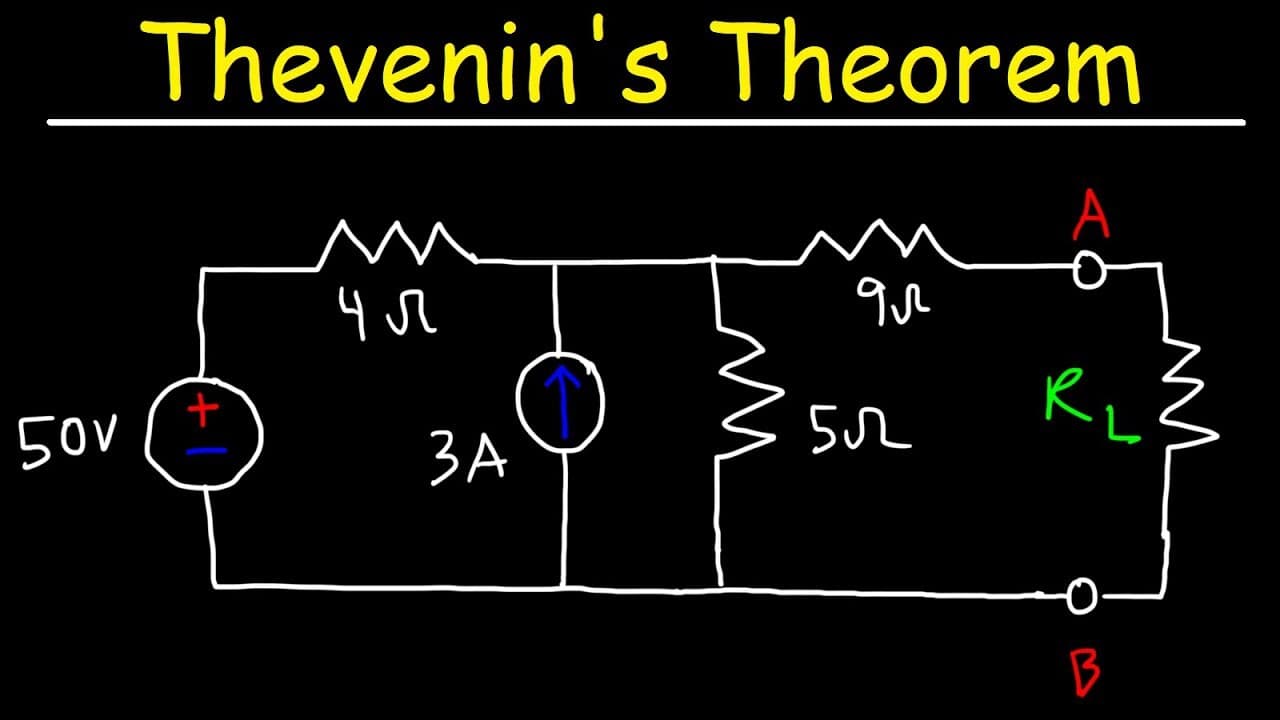

in this video we're going to talk about how to use thevenin's theorem to calculate the current that is flowing through the load resistor rl so what we need to do is we need to determine the thevenin resistance and the thevenin voltage once we do that we could simplify this circuit like this here is the load resistor this is the thevenin resistance ... Read More

Key Insights

• ❓ Thevenin's Theorem simplifies complex circuits for easier analysis.
• ❓ Thevenin resistance can be found by combining parallel and series resistors.
• 😥 Thevenin voltage is determined by measuring the potential difference between two points.
• ❓ Nodal analysis can be used to calculate currents in the circuit.
• 👮 Kirchhoff's current law is applied to solve for unknown currents.
• 💐 Thevenin circuit simplification helps calculate the current flowing through a load resistor.
• 👮 Calculations must adhere to Ohm's law for voltage and current relationships.

Questions & Answers

Q: What is Thevenin's Theorem used for?

Thevenin's Theorem is used to simplify complex circuits and calculate the current flowing through a load resistor.

Q: How is the Thevenin resistance calculated?

The Thevenin resistance is found by combining parallel resistors and adding them to series resistors in the circuit.

Q: What is the significance of the Thevenin voltage?

The Thevenin voltage represents the potential difference between two points in the circuit and helps in determining the current flow through the load resistor.

Q: How can Thevenin's Theorem be used to confirm circuit calculations?

By applying Thevenin's Theorem, the calculated current and potential at various points in the circuit can be verified to ensure consistency and correctness.

Summary & Key Takeaways

• Thevenin's Theorem helps simplify complex circuits to determine current flow through a load resistor.

• To find the Thevenin resistance, parallel resistors are combined and added to series resistors.

• The Thevenin voltage is calculated by measuring the potential difference between two points in the circuit.
