Phase Shift Measurement - Microwave Measurement - Microwave Engineering

TL;DR

Learn about measuring phase shift in microwave signals using precision instruments for accurate results.

Transcript

click the bell icon to get latest videos from akira hello friends I welcome you all to this video we are having the various parameters associated with the microwave signal propagation in the microwave system bench to be measured in this particular chapter hence the name microwave measurements the various measurements as like the VSWR the power the ... Read More

Key Insights

• ✊ Microwave measurements cover parameters like VSWR, power, and frequency value for signal propagation assessment.
• 📡 Phase shift in microwave signals is crucial and determined by the propagation constant's attenuation and phase shift components.
• 🫥 Precision instruments like phase shifters and slotted lines are vital for accurate phase shift measurements.
• ❓ The phase shift measurement technique utilizes calibration and adjustment for precise results.
• ❓ Understanding microwave engineering concepts like impedance measurement is essential for further learning.
• 🏑 Subscribing to educational channels can enhance knowledge in the field of microwave engineering.
• ❓ The phase shift measurement process involves careful adjustments to ensure accurate readings.

Questions & Answers

Q: What are the key parameters measured in microwave signal propagation?

The key parameters include VSWR, power, and frequency value measurements using devices like power meters, frequency meters, and network analyzers.

Q: How is phase shift calculated in microwave signals?

Phase shift in microwave signals is determined by the propagation constant, which comprises the attenuation and phase shift constants summed up together.

Q: What instruments are used in phase shift measurement?

Precision instruments like phase shifters, slotted lines, and crystal detectors are utilized in phase shift measurement to ensure accurate results.

Q: How is the phase shift measurement technique implemented?

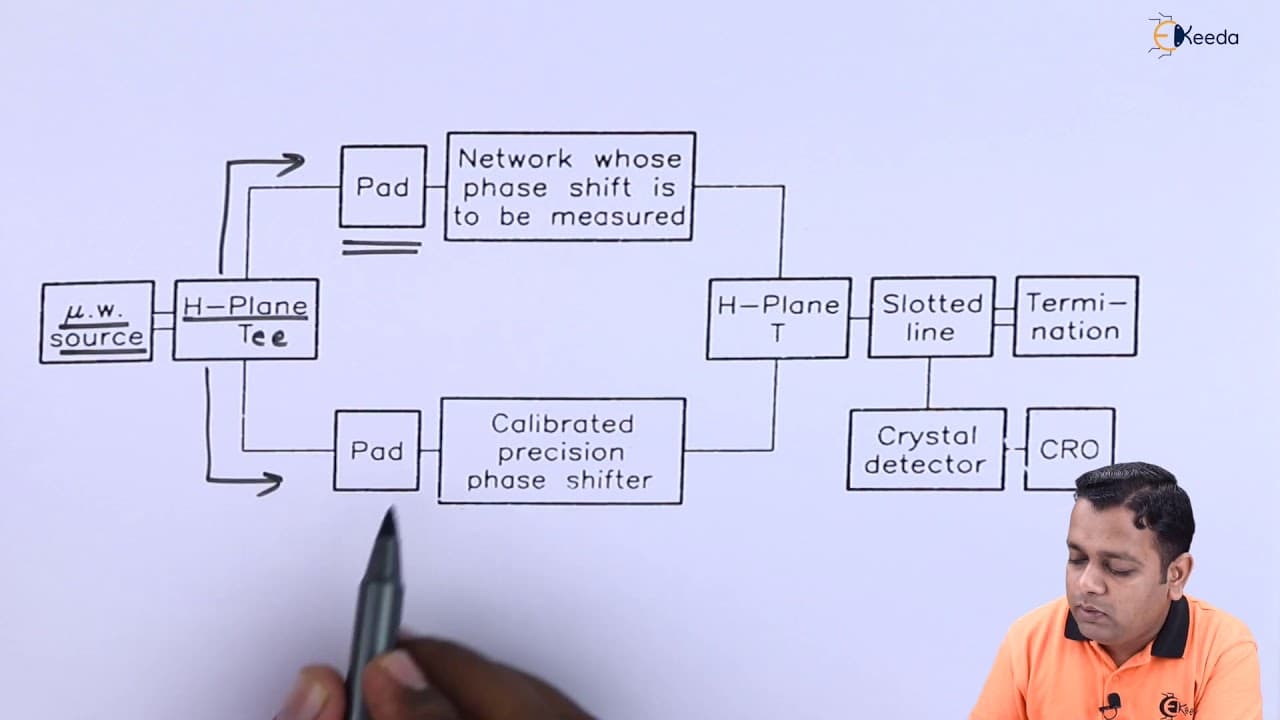

The phase shift measurement technique involves using a block schematic diagram with a microwave source, phase shifter, H-plane tee, and calibrated components to measure and adjust the phase shift accurately.

Summary & Key Takeaways

• Microwave measurements involve VSWR, power, and frequency value measurements using devices like slotted lines, tunable detectors, power meters, etc.

• Phase shift in microwave signals is crucial and is determined by the propagation constant, which is the sum of the attenuation and phase shift constants.

• The phase shift measurement technique involves a block schematic diagram, phase shifters, and precision instruments for accurate results.
