What Are Band Pass and Band Stop Filters?

TL;DR

Band pass filters allow a specific range of mid-level frequencies to pass while blocking low and high frequencies. In contrast, band stop filters permit low and high frequencies to pass but block mid-level frequencies. These filters can be constructed using RLC circuits in either parallel or series configurations, affecting how they interact with different frequency ranges.

Transcript

in this video we're going to talk about band pass filters and band stop filters band pass filters they pass a band of frequencies they block low level frequencies and also high level frequencies but mid-level frequencies defined within a certain range they allow through the circuit all the low level frequencies and high level frequencies get filter... Read More

Key Insights

• 👻 Band pass filters allow a specific range of mid-level frequencies to pass through while blocking low and high-level frequencies.
• 👻 Inductors in band pass filters allow low-level frequencies to pass through, while capacitors block low-level frequencies but allow high-level frequencies.
• 🧭 The resonant frequency in an LC circuit determines the frequencies that pass through in a band pass filter.
• 👻 Band stop filters block mid-level frequencies while allowing low and high-level frequencies to pass through.

Questions & Answers

Q: What is the purpose of a band pass filter?

A band pass filter allows a specific range of frequencies (mid-level frequencies) to pass through while blocking low and high-level frequencies. It is used to separate desired frequencies from unwanted ones.

Q: How does an inductor contribute to a band pass filter?

An inductor allows low-level frequencies to pass through with low impedance but offers high impedance to high-level frequencies. This helps in blocking high-level frequencies in a band pass filter.

Q: What is the resonant frequency for an LC circuit in a band pass filter?

The resonant frequency for an LC circuit in a band pass filter is given by the formula 1/(2π√(LC)), where L is the inductance and C is the capacitance.

Q: How does a band stop filter differ from a band pass filter?

In a band stop filter, the low and high-level frequencies are allowed to pass through, while the mid-level frequencies are blocked. It is the reverse of a band pass filter.

Summary & Key Takeaways

• Band pass filters allow a certain range of mid-level frequencies to pass through while blocking low and high-level frequencies.

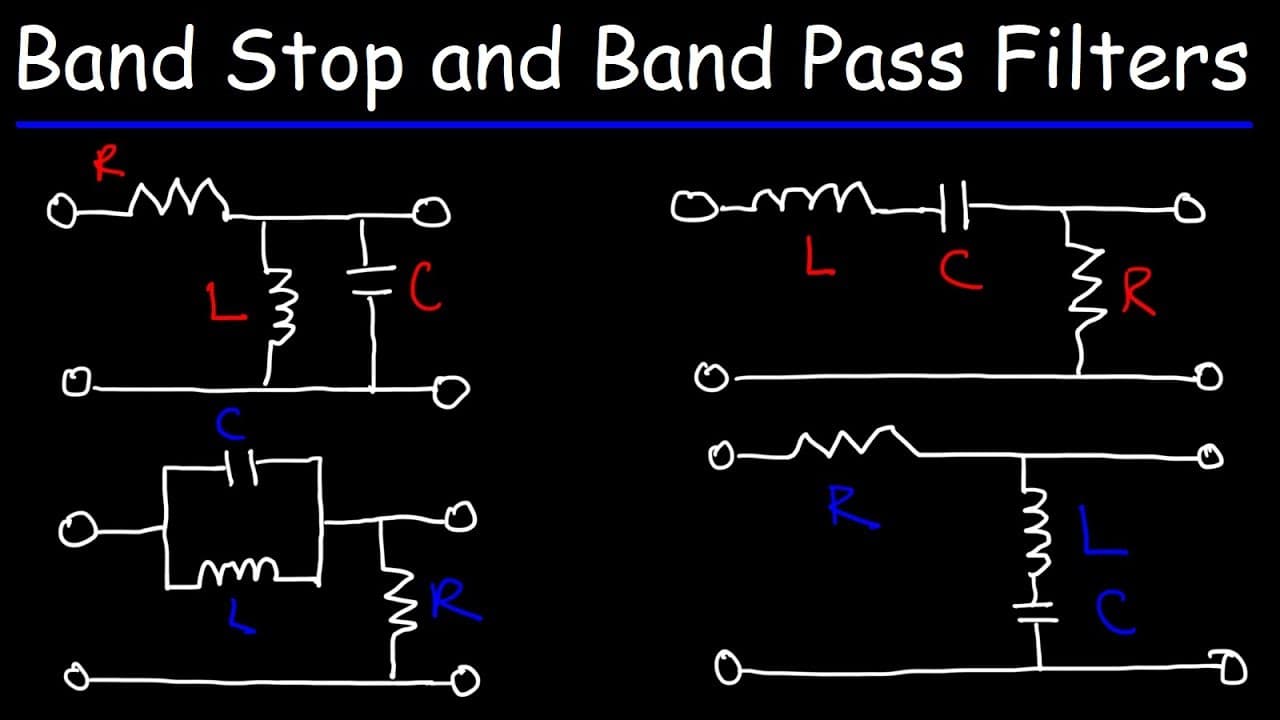

• The parallel RLC circuit can function as a band pass filter, with the inductor and capacitor in parallel.

• The series RLC circuit can also be used as a band pass filter, with the inductor and capacitor in series.
