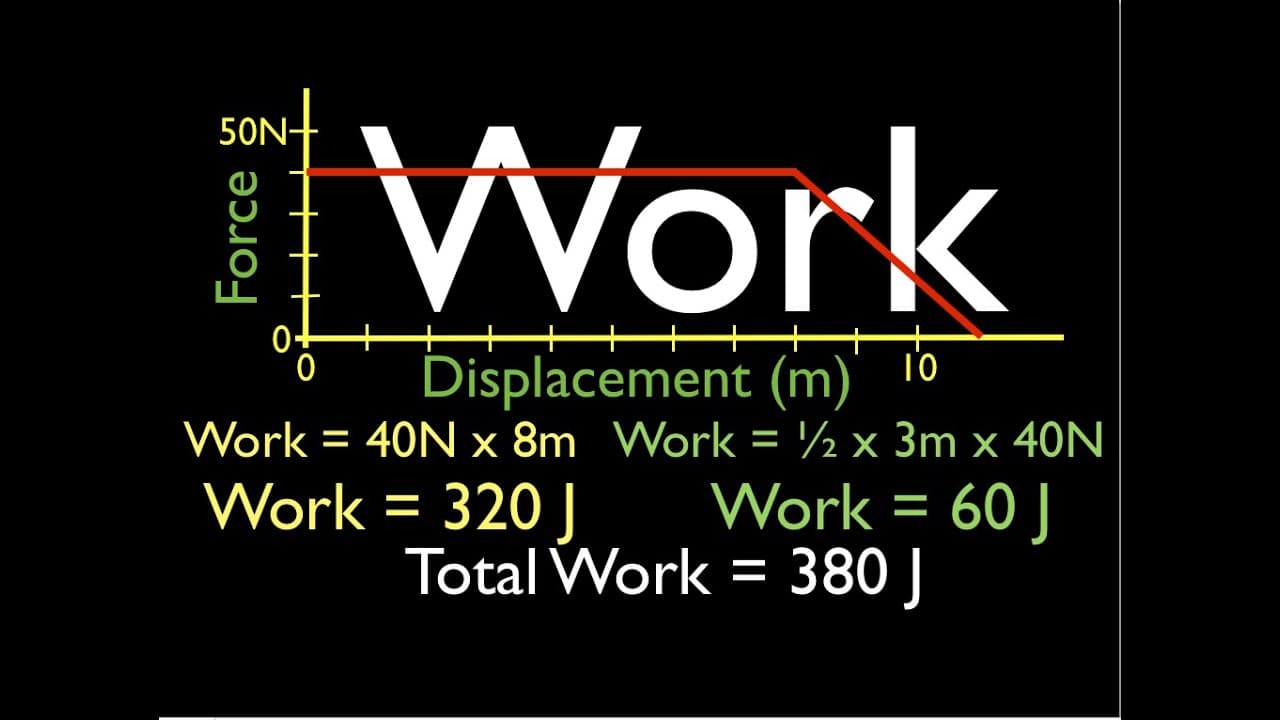

Energy, Work & Power (22 of 31) Work from the Force vs. Displacement Graph, No. 1

TL;DR

Learn how to calculate work from a force vs. displacement graph by finding the area under the curve.

Transcript

okay in this video we are going to go over how to use the force versus displacement graph to determine the amount of work that a force does now this video is example number one the next video will be example number two it'll be a little more complicated example but for now we're going to go over example number one and we're going to determine the a... Read More

Key Insights

• 💦 The area under a force vs. displacement graph determines the work done by a force on an object.
• 💦 Work is calculated by breaking down the curve into shapes like rectangles and triangles and finding their areas.
• 💦 Understanding the relationship between force, displacement, and work is crucial in physics calculations.
• 💦 Joules are the standard unit for work and energy in physics.
• 💦 Calculating the area under different sections of the curve provides insights into the work done at specific displacement intervals.
• 💦 By calculating the area under the curve accurately, one can determine the total work done by a variable force.
• 📈 The concept of area under the curve applies to various physics scenarios beyond force vs. displacement graphs.

Questions & Answers

Q: How do you determine the amount of work done by a force using a force vs. displacement graph?

To calculate work, find the area under the force vs. displacement curve, which corresponds to the work done by the force on the object. Break down the curve into shapes like rectangles and triangles and calculate their areas.

Q: Why is the area under the curve equal to the work done by a force?

The area under the curve represents the displacement multiplied by the force at each point, which ultimately gives the work done. This is based on the concept that work is the product of force and displacement.

Q: How do you calculate the work done for different sections of the curve?

Break down the curve into shapes like rectangles and triangles, find their individual areas, and then add them up. Each shape represents a portion of the work done by the force as it acts on the object.

Q: Can you explain the significance of the units Joules in this context?

Joules represent the standard unit for work and energy. When calculating the area under the curve of a force vs. displacement graph, the resulting value in Joules signifies the amount of work done by the force on the object.

Summary & Key Takeaways

• Explanation of determining work done by a variable force on an object using a force vs. displacement graph.

• Emphasis on understanding the relationship between force, displacement, and work.

• Step-by-step calculation of work done by breaking down the graph into shapes and calculating their areas.
