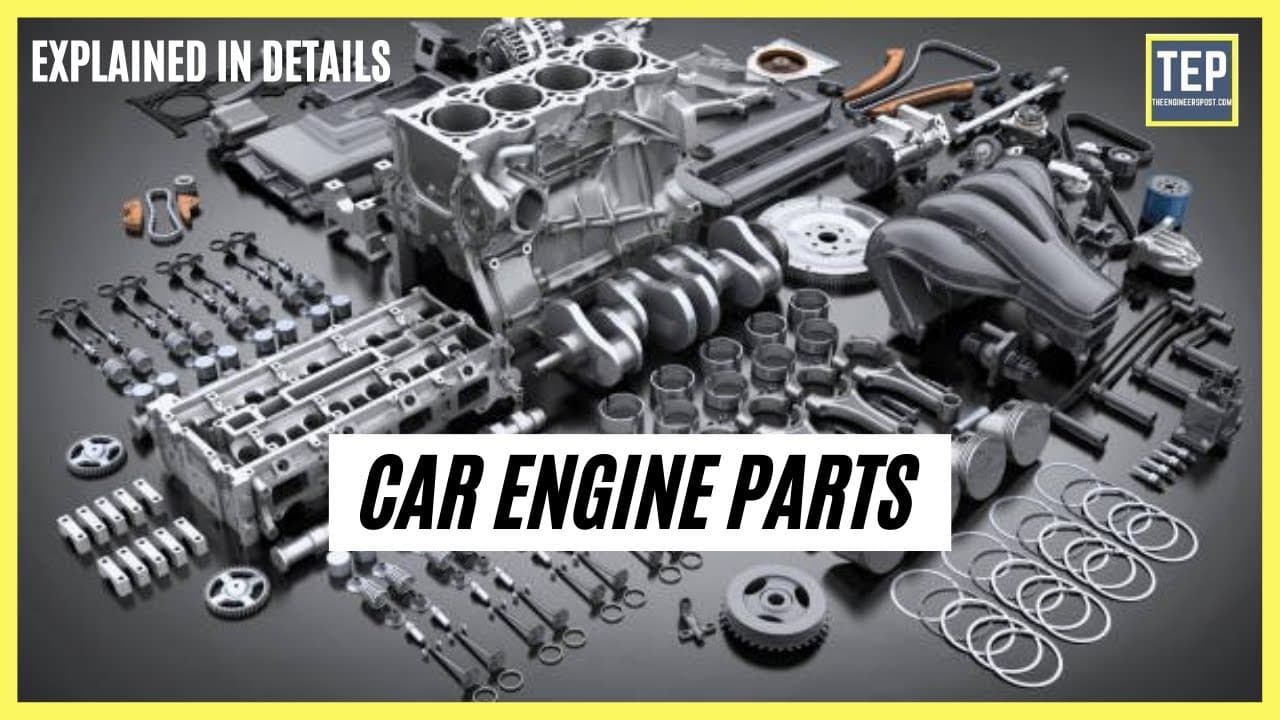

What Are the Main Parts of an Engine?

TL;DR

An internal combustion engine consists of several key components including the cylinder block, cylinder head, piston, and crankshaft, each serving crucial roles in mechanical energy conversion. These parts work together to facilitate the combustion process, maintain fluid dynamics, and enable the engine's overall performance.

Transcript

an engine is a machine designed to convert one form of energy into mechanical energy heat engines burn fuel to create heat which is then used to do work it is a complex machine built to convert heat from burning gas into the force that turns the wheels the chain of reactions that achieve that objective is set in motion by a spark which ignites a mi... Read More

Key Insights

• 🥰 The engine is a crucial component of the automotive industry, serving as the heart of an automobile.
• 🚒 The internal combustion engine is the most common type of engine, burning fuel inside the cylinder for power generation.
• 🚒 The main parts of an internal combustion engine include the cylinder block, cylinder head, piston, crankshaft, and engine valves.
• ✊ Each part has a specific function in the conversion of energy and mechanical power generation.
• 🥳 The materials used for engine parts vary, with options like cast iron and aluminum alloys.
• 👳 Cylinder liners help prevent wear in the cylinder, and piston rings create a seal between the piston and cylinder wall.
• ❓ The connecting rod connects the piston to the crankshaft, converting reciprocating motion to rotary motion.
• 😣 The crankshaft is responsible for transferring power from the piston to the rest of the engine components.
• 👱 Engine valves control the timing of air-fuel mixture entry and exhaust combustion products.

Questions & Answers

Q: What is the difference between an internal combustion engine and an external combustion engine?

An internal combustion engine burns fuel inside the engine cylinder, while an external combustion engine burns fuel outside the cylinder.

Q: What is the function of the cylinder head?

The cylinder head is attached to the cylinder block and contains a combustion chamber, valve guides, valve seats, ports, coolant jackets, and threaded holes for spark plugs.

Q: How are piston rings important in an engine?

Piston rings maintain a good seal between the piston and cylinder wall, preventing high-pressure gases from entering the crankcase. They are made of alloy cast iron and come in compression and oil control types.

Q: What is the purpose of the crankshaft?

The crankshaft converts the reciprocating motion of the piston into the rotating motion, which is the main power transmission source in the engine. It is made of alloy steel and has crank pins, balancing weights, and main journals.

Summary & Key Takeaways

• An engine is a machine that converts energy into mechanical energy, and there are two types: internal combustion engines and external combustion engines.

• The main parts of an internal combustion engine include the cylinder block, cylinder head, oil pan, manifolds, gaskets, pistons, piston rings, connecting rod, crankshaft, camshaft, flywheel, and engine valves.

• Each part serves a specific function, such as providing support, creating a seal, converting motion, controlling timing, and more.
