Problem No 8 Even and Odd Signals | Representation of Signals | Signals and Systems

TL;DR

Learn how to plot x of n in a standard signal format and decompose it into even and odd parts.

Transcript

in this video we are going to see how to plot x of n if it is given in a standard signal format and once x of n is obtained we will see how to get even and odd parts of that x of n so the equation is given like this first job is to plot x often and then we need to obtain even an odd part this is given in standard equations meaning that is u of n is... Read More

Key Insights

• ☺️ Plot x of n according to the given standard signal format.
• ⌛ Obtain u of n - 5 as a time-shifted version of u of n.
• ☺️ Decompose x of n into even and odd parts for symmetry analysis.
• ☺️ Understand signal subtraction for obtaining x of n.
• 😀 Recognize the even part as symmetric around the y-axis.
• 🦕 Identify the odd part as passing through the origin.
• ⌛ Learn the significance of time reversal in signal processing.

Questions & Answers

Q: What is the first step in plotting x of n in a standard signal format?

The initial step involves understanding the given equation and plotting u of n, where the signal exists for n ≥ 0 and is 0 otherwise.

Q: How can we obtain u of n - 5 from the given equation?

To get u of n - 5, we need to time-shift u of n by 5, resulting in a delayed signal starting from n = 5 with a value of 1.

Q: What is the process of obtaining x of n from u of n - u of n - 5?

Subtracting u of n - u of n - 5 yields x of n, a signal with values of 1 for n = 0, 1, 2, 3, and 4, transitioning to 0 from n = 5 onwards.

Q: Explain how to derive the even and odd parts from x of n.

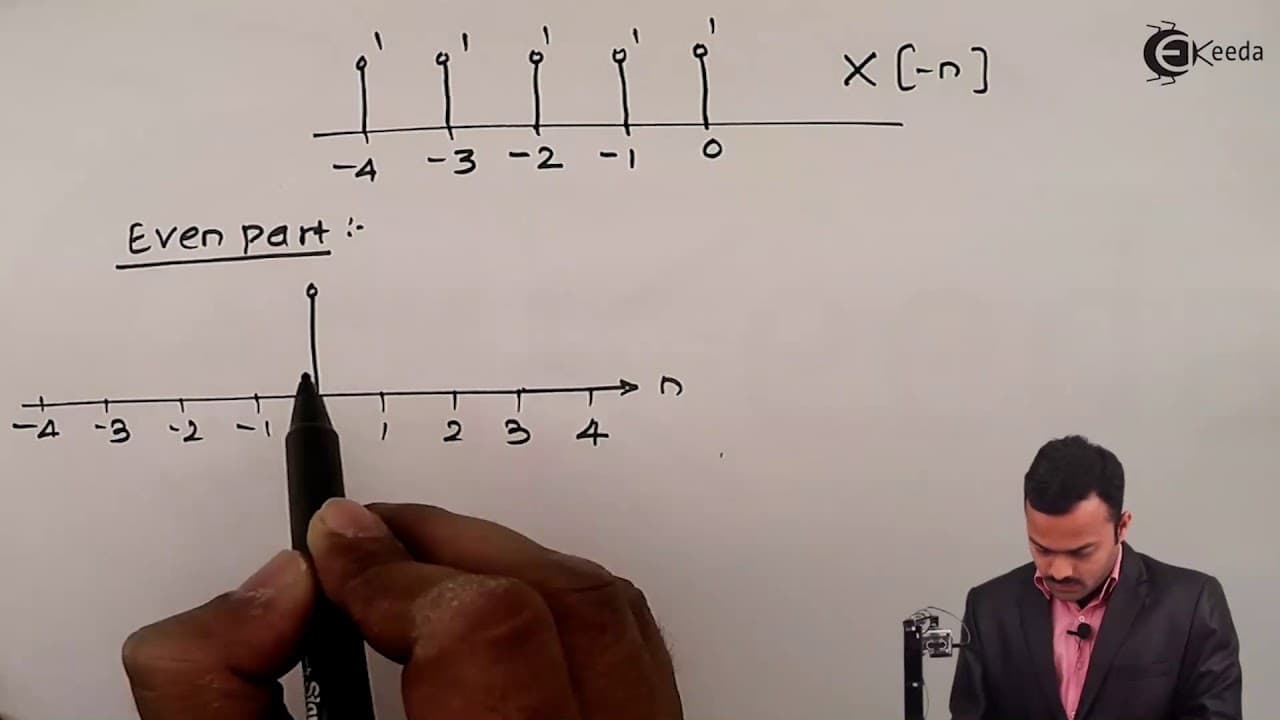

To obtain the even part, add x of n with x of -n; dividing the sum by 2 gives a symmetric signal with a peak at n = 0. For the odd part, subtract the signals and divide by 2 for values of ±0.5.

Summary & Key Takeaways

• Understand how to plot x of n in a standard signal format.

• Learn to obtain the even and odd parts of x of n.

• Master the process of decomposing the signal into its even and odd components.
