Snubber Circuit - Other Power Semiconductor Devices - Power Electronics

TL;DR

Learn how a snubber circuit protects thyristors from unexpected triggering due to DV by DT changes.

Transcript

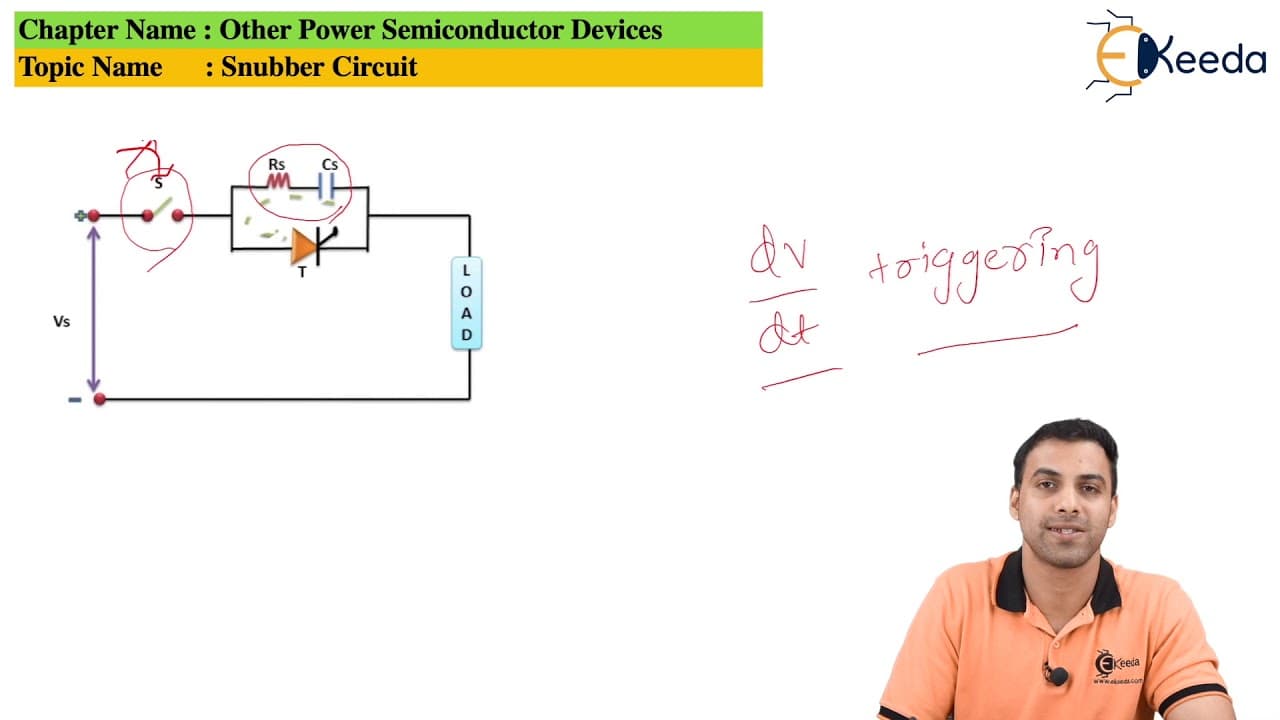

click the Bell icon to get latest videos from akira hello everybody today we are going to discuss about snubber circuit so friends as we all discussed about the DV by DT triggering of our thyristor so we came to know that because of DB by triggering the thyristor undergoes unexpected triggering because of that the circuit conducts so the circuit ne... Read More

Key Insights

• 😒 Snubber circuits use capacitors and resistors to prevent thyristor triggering during voltage changes.
• 🥺 DV by DT triggering can lead to undesired circuit operation.
• ❓ Inductors can also be utilized in snubber circuits for thyristor protection.
• ❓ Protecting thyristors is crucial for maintaining circuit integrity and preventing malfunctions.
• ❓ Thyristors can be safeguarded by implementing snubber circuits effectively.
• ✊ Snubber circuits dissipate power to prevent unwanted thyristor conduction.
• ⚡ Capacitors and resistors in snubber circuits help suppress voltage spikes.

Questions & Answers

Q: What is the purpose of a snubber circuit in electronics?

A snubber circuit is used to protect thyristors from unexpected triggering due to voltage changes, specifically DV by DT triggering, by dissipating power through a capacitor and resistor.

Q: How does a snubber circuit prevent thyristor triggering during DV by DT changes?

When a voltage change triggers a thyristor, the capacitor in the snubber circuit suppresses the voltage spike, preventing the thyristor from conducting and protecting the circuit.

Q: Can an inductor be used instead of a capacitor in a snubber circuit?

Yes, an inductor can also be used in a snubber circuit to suppress electric current and prevent sudden changes, offering an alternative method for protecting thyristors.

Q: Why is it important to protect thyristors from unexpected triggering in circuits?

Protecting thyristors from unexpected triggering ensures the circuit operates as intended, avoiding damage or malfunction due to unwanted conduction.

Summary & Key Takeaways

• DV by DT triggering in thyristors can lead to unexpected circuit conduction.

• Snubber circuit with a capacitor and resistor prevents thyristor triggering during voltage changes.

• Inductor can also be used to suppress electric current for thyristor protection.
