Numerical 2 on Hagen Poiseuille's Formula - Boundary Layer Theory - Fluid Mechanics 2

TL;DR

Solving a numerical with a vertical pipe to determine flow direction and rate based on energy equations.

Transcript

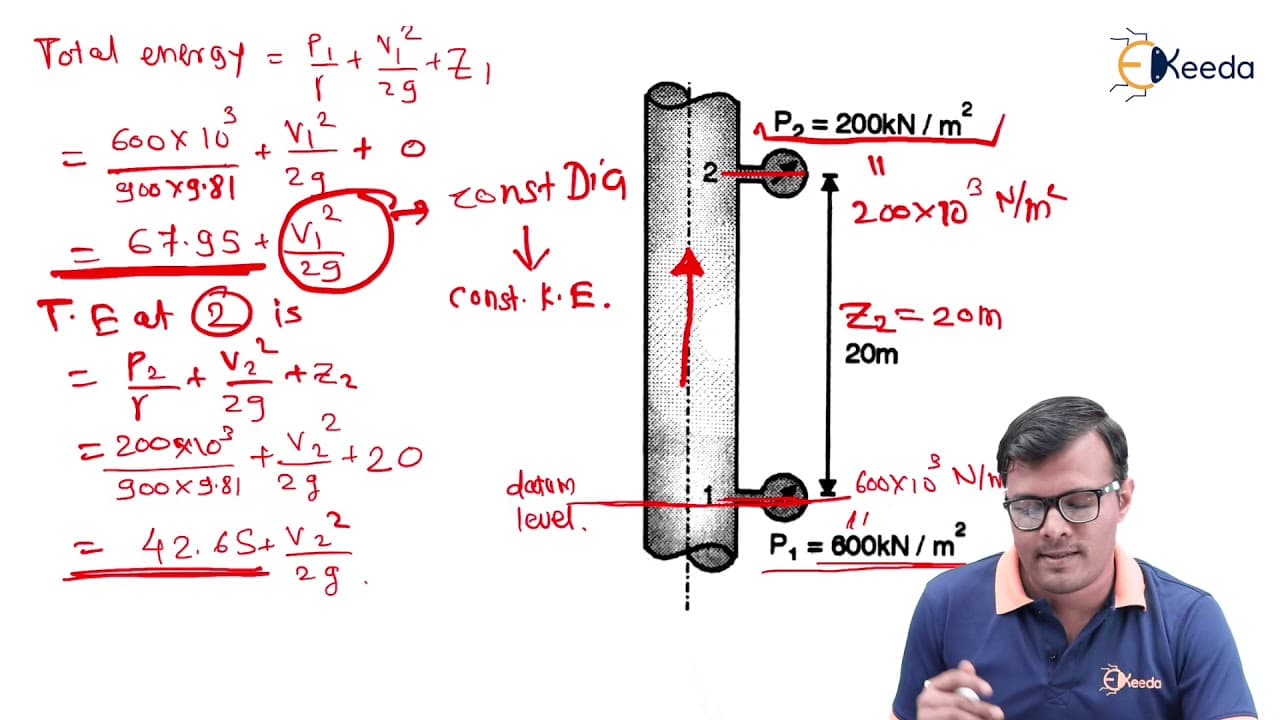

hello friends in this video we are going to solve a numerical which is based on the concept of Hagan partially so let's move over you let's see the numerical crude oil of viscosity 1.5 poise and relative densities 0.9 flows through 20 mm diameter vertical pipe so in this numerical the position of pipe is vertical it means that datum is continuously... Read More

Key Insights

• 💐 Pressure gauges assist in determining flow direction in vertical pipe analysis.
• 🌸 Head loss calculations quantify energy losses in the flow system.
• ☠️ Average velocity and pipe area calculations are essential for estimating flow rate.
• 🚦 Specific gravity and viscosity impact fluid behavior in a vertical pipe.
• 💐 Energy equations are fundamental in analyzing flow dynamics in vertical pipes.
• 🎚️ Datum level changes affect pressure readings and energy calculations.
• 🦻 Understanding flow behavior aids in designing efficient piping systems.

Questions & Answers

Q: How is the flow direction determined in a vertical pipe numerical analysis?

The flow direction is determined by comparing the total energy at two points using pressure readings and the concept of head loss.

Q: What is the significance of calculating head loss in a vertical pipe analysis?

Head loss quantifies the energy lost between two points in the pipe, providing insights into the flow behavior and direction.

Q: How are pressure gauges utilized in the numerical analysis of a vertical pipe flow?

Pressure gauges provide pressure readings at different points in the pipe, aiding in the calculation of total energy and determining the flow direction.

Q: Why is the calculation of flow rate crucial in a vertical pipe analysis?

Calculating the flow rate allows engineers to understand the volume of fluid passing through the pipe per unit time, aiding in system design and optimization.

Summary & Key Takeaways

• Analysis of flow through vertical pipe based on pressure readings and energy equations.

• Determination of flow direction from higher to lower pressure using head loss calculations.

• Calculation of flow rate through the pipe using average velocity and pipe area.
