Problem no.2 Interfacing I/O Devices with 8085

TL;DR

Solving the interfacing issue of an 8-bit dip switch with the 8085 microprocessor using memory mapped input output.

Transcript

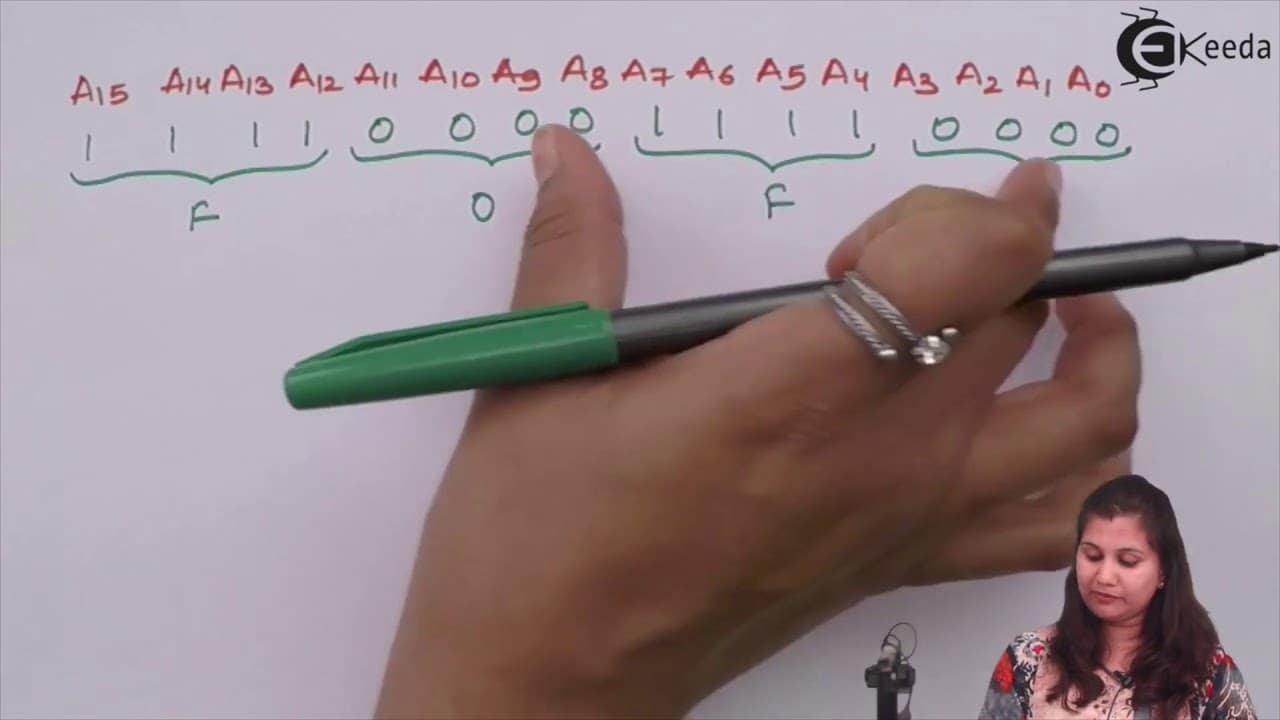

so our problem is we have to interface an 8-bit dip switch with the 8085 using logic gates such that the address assigned to the dip switch is f 0 f 0 h so let's try to solve this problem here in the question we are given that the address assigned to the dip switch it is f 0 f 0 h so this address it is a 16 bit address and dip switch it is an input... Read More

Key Insights

• 🔠 Memory mapped input-output interfacing for addressing input-output devices.
• 🫥 Address lines play a crucial role in generating the required 16-bit address.
• ❓ Buffers like LS244 are essential for data transfer between devices.
• 🔬 Logic gates, such as AND and NAND gates, are used for signal processing.
• 📡 Understanding the role of memory signals like MEMRbar in data retrieval.
• 📡 Inverters are useful for ensuring correct signal polarity.
• 💁 Utilization of data buses for transferring information in interfacing circuits.

Questions & Answers

Q: What type of interfacing is used to address the 8-bit dip switch in this scenario?

The memory-mapped input output interfacing is used, where input output devices are considered as memory chips with 16-bit addresses.

Q: How are the 16 address lines of the 8085 microprocessor utilized in interfacing?

All 16 address lines are used to generate the 16-bit address required to interface with the 8-bit dip switch effectively.

Q: What is the role of the memory read signal (MEMRbar) in this interfacing circuit?

The MEMRbar signal is used to read data from the 8-bit dip switch, acting as an active low signal necessary for data retrieval.

Q: How does the buffer in the interfacing circuit facilitate data transfer from the dip switch to the 8085 microprocessor?

The buffer, such as LS244, reads data from the dip switch and makes it available on the data bus for the microprocessor to process and store.

Summary & Key Takeaways

• Addressing 8-bit dip switch with f0f0h using memory-mapped input output interfacing.

• Logic gates used to interface the dip switch with 8085 microprocessor.

• Detailed explanation of address lines, buffers, and data buses in the interfacing circuit.
