1st Numerical of Pipe Bends - Dynamic of Fluid Flow - Applied Hydraulics

TL;DR

Solving a hydraulic numerical problem to find resultant force with detailed calculations and analysis.

Transcript

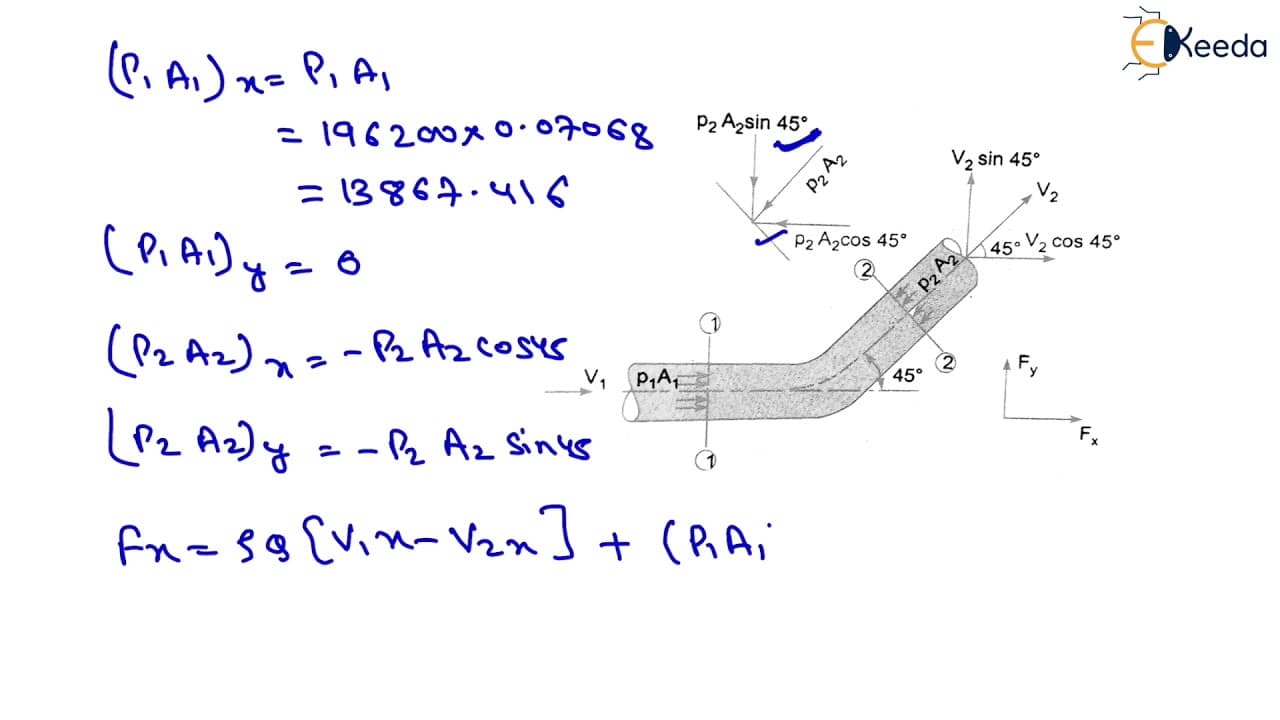

hello student today we are going to solve first numerical of 5 bands question is shown as a 300 mm diameter pipe carries water under a head of 20 meter with a velocity of 3.5 meter per second if the axis of the pipe turns through 45 degree find the magnitude and direction of the resultant force at the bend now we have to solve this numerical as a d... Read More

Key Insights

• 🤩 Understanding hydraulic problems involves key parameters like diameter, velocity, and pressure.
• ☠️ Calculating cross-sectional area and flow rate is crucial in hydraulic numerical problem-solving.
• ❓ Pressure intensity and resultant force direction are essential aspects of solving hydraulic problems accurately.

Questions & Answers

Q: What are the key parameters given in the hydraulic numerical problem?

Key parameters include diameter, head, velocity, angle, pressure head, and fluid properties like density.

Q: How is the cross-sectional area of the pipe calculated?

The cross-sectional area is calculated using the formula pi/4 * diameter^2, where the diameter is given in meters.

Q: What is the formula for calculating flow rate in hydraulic systems?

The flow rate (q) is calculated as the product of cross-sectional area (a) and velocity (v), through the equation q = av.

Q: How do you determine the resultant force in the hydraulic system?

The resultant force is calculated by resolving forces along the x and y directions and then using vector addition to find the magnitude and direction of the resultant force.

Summary & Key Takeaways

• Hydraulic numerical problem solving discussed.

• Given parameters for diameter, head, and velocity.

• Calculations for cross-sectional area, flow rate, pressure, and resultant force direction explained.
