60 Hz Sine Wave Generator Using 555 Timer & LC Tank Oscillator

TL;DR

Learn how to generate a 60Hz sine wave by using a 555 timer to create a square wave and converting it into a sine wave using an LC network.

Transcript

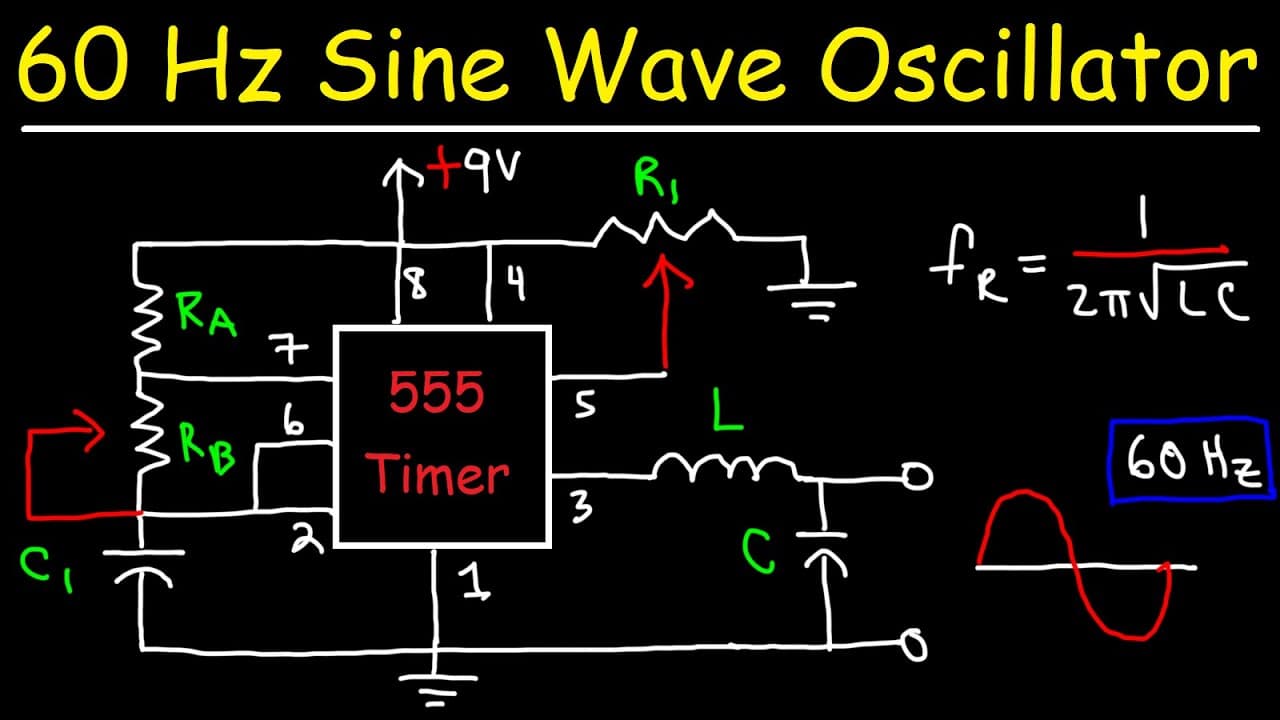

in this video i'm going to talk about how to make a circuit that generates a sine wave at a frequency of 60 hertz so here's an overview of what you need to do step one is to use the 555 timer to generate a square wave at 60 hertz the 555 timer is very useful for generating low frequency signals now the second step is to convert the square wave into... Read More

Key Insights

• 😘 The 555 timer is useful for generating low-frequency signals.
• 👋 The LC network can convert a square wave into a sine wave.
• 🎅 Calculating the values of L and C using the resonant frequency formula helps achieve the desired frequency.

Questions & Answers

Q: How can I generate a 60Hz sine wave using a 555 timer?

To generate a 60Hz sine wave, you can use a 555 timer to create a square wave and then convert it into a sine wave using an LC network.

Q: What are the components needed for this circuit?

The main components needed are a 555 timer, an inductor (L), and a capacitor (C) arranged in an LC network configuration.

Q: How do I calculate the values of L and C for the LC network?

You can use the formula: Resonant frequency = 1 / (2 * π * √(L * C)). Adjust the values of L and C until the resonant frequency matches the frequency of the 555 timer.

Q: Can I modify the circuit to generate a sine wave at a different frequency?

Yes, you can adjust the values of L, C, and the potentiometers to change the frequency of the sine wave. Higher capacitance or lower resistance values will result in higher frequencies.

Summary & Key Takeaways

• Step 1: Use a 555 timer to generate a square wave at 60Hz.

• Step 2: Convert the square wave into a sine wave using an LC network.

• Calculate the values of inductance and capacitance needed to achieve the desired frequency.
