Transistor Base Bias Circuits - Finding The DC Load Line & The Q Point Values

TL;DR

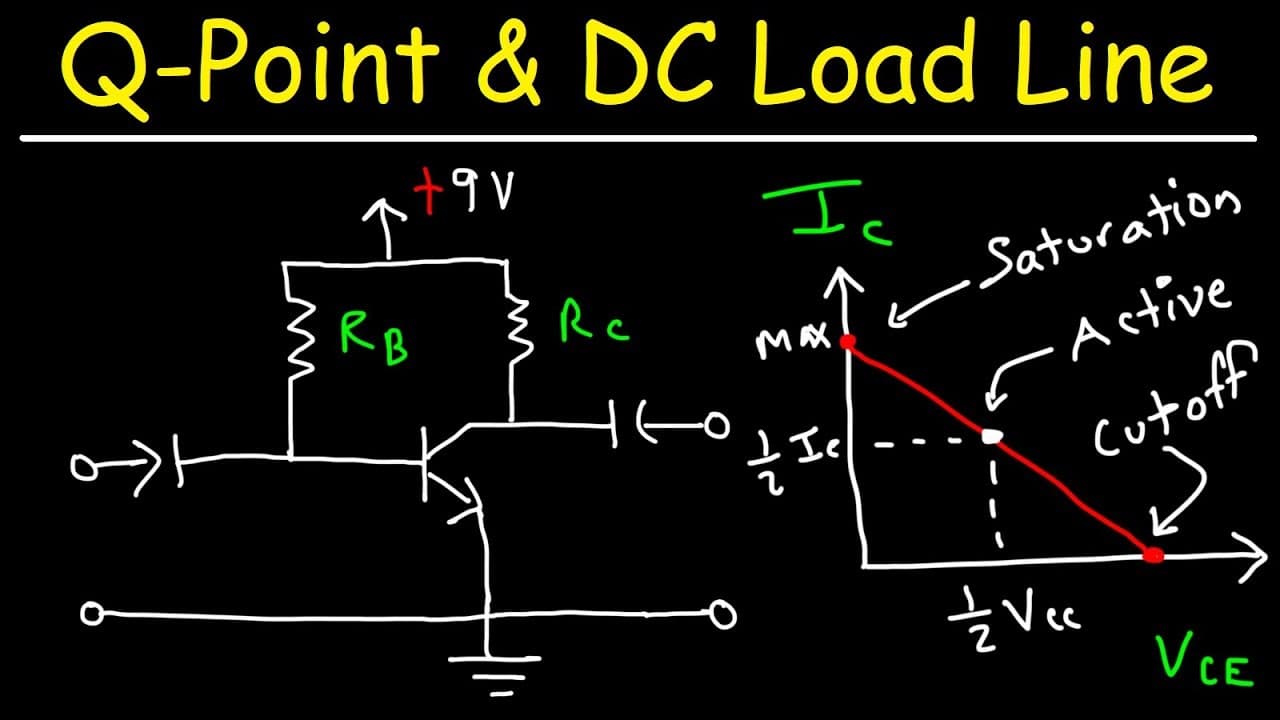

Learn how to plot the DC load line, determine cue point values, and design a transistor base bias circuit with centered cue point values for IC and VCE.

Transcript

in this video we're going to talk about how to plot the dc load line for a circuit in base bias configuration and also how to determine the cue point values of ic and vce so rc is 3k the base resistance is 500 kilo ohms this is the base of the npn transistor that's the collector and this is the emitter so the first thing we need to do is calculate ... Read More

Key Insights

• 🫥 The DC load line shows the relationship between IC and VCE in a transistor base bias circuit.
• ⚡ The maximum saturation current is found by dividing the collector supply voltage by RC.
• 😥 The cue point with centered values for VCE and IC provides ideal amplifier performance.
• ☢️ The different regions of the transistor's operation are saturation, cutoff, and active regions.

Questions & Answers

Q: What is the purpose of plotting the DC load line in a transistor base bias circuit?

The DC load line helps us visualize the relationship between IC and VCE. It assists in determining the cue point and understanding the operating regions of the transistor.

Q: How do you calculate the maximum saturation current for the circuit?

The maximum saturation current is calculated by dividing the collector supply voltage by RC.

Q: Why is it important to have a centered cue point value in a transistor amplifier circuit?

The centered cue point achieves optimal amplifier performance. By setting VCE to half of VCC and IC to half of the maximum saturation current, the amplifier operates at its best efficiency.

Q: How can you design a transistor base bias circuit with centered cue point values?

To design such a circuit, you need to set VCE to half of the collector supply voltage and choose a desired IC value. Then, calculate RC based on these values and determine the base current and RB accordingly.

Summary & Key Takeaways

• The video explains how to plot the DC load line for a transistor base bias circuit and determine cue point values for IC and VCE.

• The maximum saturation current for the circuit is calculated by dividing the collector supply voltage by RC.

• The video also covers the different regions of transistor operation, such as saturation, cutoff, and active regions.
