Depletion Layer Thickness

TL;DR

Explanation of depletion layer thickness in MOSFET due to charged carriers accumulation.

Transcript

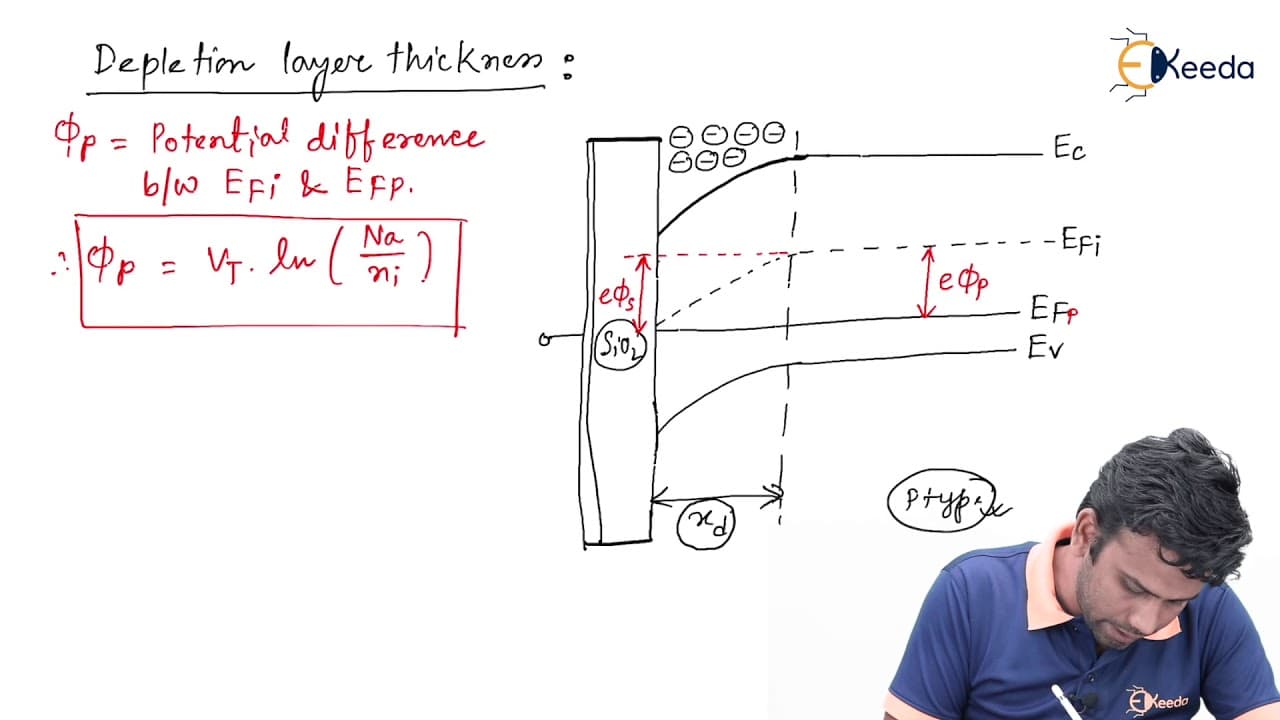

hello friends in this video we are going to discuss about the width of the depletion layer or the thickness of the depletion layer in the metal-oxide-semiconductor fit as we know from the MAS capacitor that a depletion layer will be created just under the sio2 layer that is at the interface layer of the most capacitor and this MOS capacitor is the ... Read More

Key Insights

• 💁 Depletion layer forms under SiO2 layer in MOS capacitor.
• ❓ XD represents depletion layer thickness in MOSFET.
• ❓ Equation for XD involves surface potential, acceptor concentration, and intrinsic carrier concentration.
• ❓ Depletion layer impacts device performance in MOSFET.
• 🔬 Derivation of XD equation not required in gate examinations.
• ❓ Understanding implications of XD equation suffices in examinations.
• ❓ Depletion layer thickness crucial for MOSFET operation.

Questions & Answers

Q: What creates the depletion layer in a MOSFET?

The depletion layer in a MOSFET is created due to the accumulation of depleted charge carriers, particularly negative acceptor ions, just under the SiO2 layer at the MOS capacitor interface.

Q: How is the depletion layer thickness calculated in a MOSFET?

The depletion layer thickness, denoted by XD, can be calculated using the equation involving surface potential, acceptor concentration, intrinsic carrier concentration, and electronic charge.

Q: What role does the depletion layer thickness play in MOSFET operation?

The depletion layer thickness in a MOSFET impacts device performance, especially in the depletion mode, as it affects the flow of current and the overall behavior of the device.

Q: Why is the derivation of the depletion layer thickness equation not necessary in gate examinations?

In gate examinations, the focus is on understanding concepts rather than mathematical derivations, so knowing the conclusion and implications of the depletion layer thickness equation suffices.

Summary & Key Takeaways

• Depletion layer forms under SiO2 layer in MOS capacitor.

• XD represents depletion layer thickness in MOSFET.

• Equation for XD involves surface potential, acceptor concentration, and intrinsic carrier concentration.
