What Are Inverting and Non-Inverting Operational Amplifiers?

TL;DR

Inverting operational amplifiers invert the input signal, resulting in a 180-degree phase shift, while non-inverting amplifiers maintain the same phase as the input. Both types use feedback resistors to control voltage gain, and operational amplifiers are characterized by high input impedance and low output impedance.

Transcript

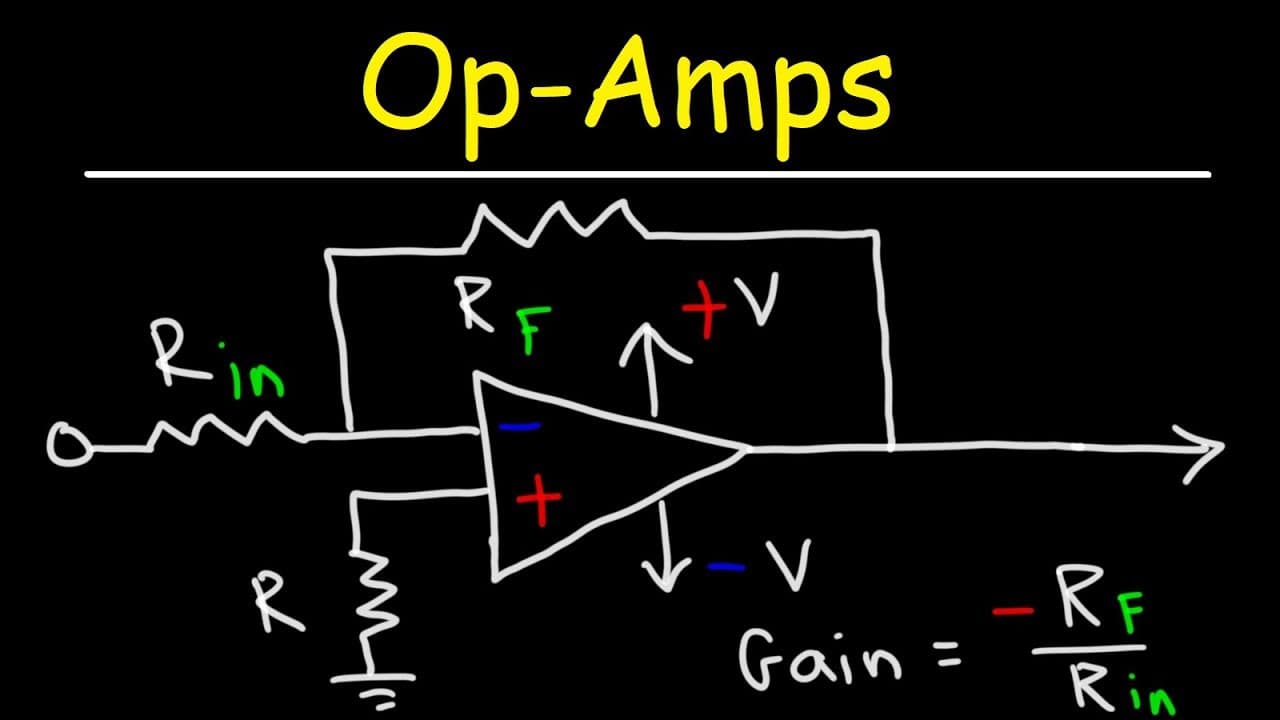

in this video we're going to talk about op amps an op amp is short for an operational amplifier op amps are basically high gain differential amplifiers these devices they amplify the difference between the input voltages v1 and v2 now the op amp has a very high input impedance but a very low output impedance the negative terminal here is known as t... Read More

Key Insights

• ✋ Operational amplifiers (op amps) are high-gain differential amplifiers that amplify the difference between input voltages.
• 🔡 Op amps have a high input impedance and low output impedance, with the negative terminal as the inverted input and the positive terminal as the non-inverting input.
• 😒 Inverting amplifier circuits use a feedback resistor to reduce voltage gain, while non-inverting amplifier circuits maintain the same phase as the input signal.
• 🍾 Supply voltage connections for op amps are typically connected to pins 4 and 7, with a series of batteries or power supply.
• 🍾 The slew rate of an op amp determines its maximum operating frequency and can affect its ability to switch between positive and negative cycles of a signal.

Summary & Key Takeaways

• An op amp is a high-gain differential amplifier that amplifies the difference between input voltages.

• The op amp has a high input impedance and low output impedance, with the negative terminal being the inverted input and the positive terminal being the non-inverting input.

• Inverting amplifier circuits use a feedback resistor to reduce voltage gain, while non-inverting amplifiers maintain the same phase as the input signal.
