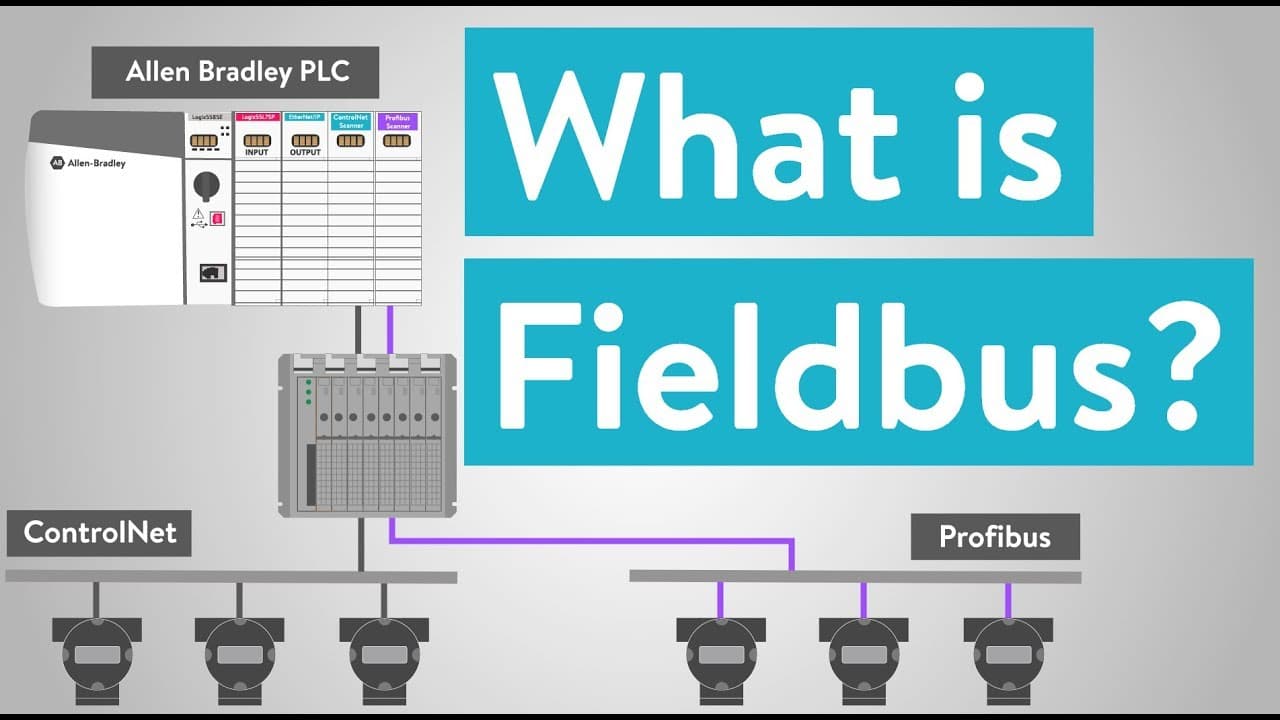

What Is Fieldbus and How Does It Work?

TL;DR

Fieldbus refers to a set of standardized protocols that facilitate communication between multiple field devices and a single controller in industrial automation. Unlike RS232, which connects only two devices, Fieldbus allows for various topologies and simplifies wiring, enhancing connectivity and efficiency across different device types.

Transcript

Fieldbus isn’t really one thing but more of a collection of things. Fieldbus is a group of protocols that are used in the industrial arena. The Fieldbus protocols have been standardized as IEC61158. before we get started on today's video if you love our videos, be sure to click the like button below. then, make sure to click subscribe and the littl... Read More

Key Insights

• 👥 Fieldbus protocols are a group of standardized communication protocols used in industrial automation.
• ❓ Different Fieldbus protocols, such as ControlNet, Modbus, and Profibus, offer compatibility with various manufacturers' devices.
• 🏑 Fieldbus enables simplified wiring and remote device connectivity, making it beneficial for field connected devices.

Questions & Answers

Q: What is Fieldbus and how is it different from RS232 serial communication?

Fieldbus is a collection of standardized protocols used in industrial automation, allowing multiple field devices to communicate with a single controller. In contrast, RS232 serial communication only permits communication between two devices.

Q: What are some common Fieldbus protocols?

Common Fieldbus protocols include ControlNet, Modbus, Profibus, EtherCAT, HART, and more. These protocols offer flexibility and compatibility with various manufacturers' devices.

Q: What are the benefits of using Fieldbus for field connected devices?

Fieldbus offers benefits such as simplified wiring, as field devices can be connected in a single cable connection scheme. It also allows for remote device connectivity, eliminating the need for long wiring runs back to the controller.

Q: What should be considered when designing a plant control system with Fieldbus devices?

Designing a plant control system with Fieldbus devices requires careful consideration of the communication network and device layer. Compatibility between protocols and manufacturers should be ensured to ensure seamless communication between devices.

Key Insights:

• Fieldbus protocols are a group of standardized communication protocols used in industrial automation.
• Different Fieldbus protocols, such as ControlNet, Modbus, and Profibus, offer compatibility with various manufacturers' devices.
• Fieldbus enables simplified wiring and remote device connectivity, making it beneficial for field connected devices.
• Careful consideration must be given to the design of a plant control system with Fieldbus devices, ensuring compatibility and effective communication between devices.

Summary & Key Takeaways

• Fieldbus protocols, standardized as IEC61158, are used in the industrial arena for communication between field devices and controllers.

• Unlike RS232 serial communication, Fieldbus allows multiple devices to connect to a single connection point in various topologies.

• Fieldbus protocols include ControlNet, Modbus, Profibus, EtherCAT, HART, and more, offering benefits such as simplified wiring and remote device connectivity.
