Part 3 Problem no. 1 on SFD and BMD - Shear Force and Bending Moment Diagram - Strength of Materials

TL;DR

Finding bending moment zero points x1 and x2 in a beam's diagram.

Transcript

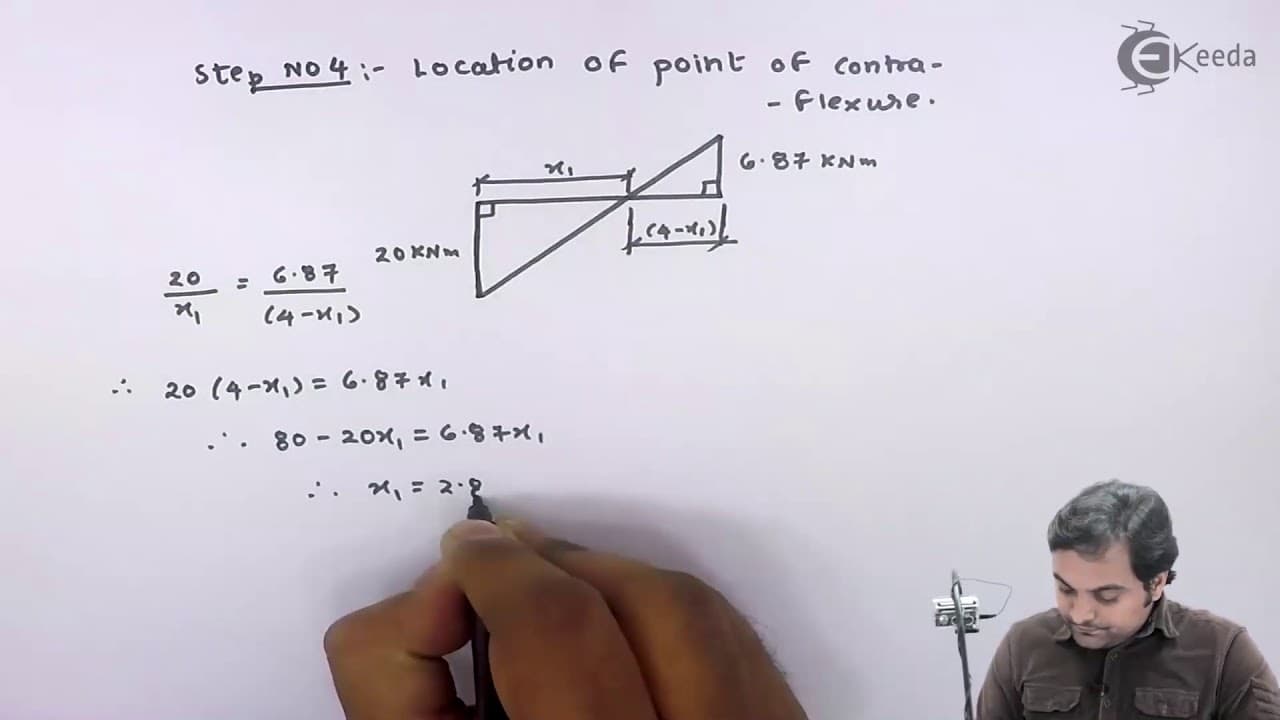

here we have completed the bending moment diagram this is the bmd now as we see in the bending moment diagram there are two points where bending moment is changing its sign or you can say bending moment is zero at these two points and these points they are called as point of contraflexure so here i have two points as the point of contraflexure as w... Read More

Key Insights

• 😁 Points of contraflexure are crucial in analyzing beam behavior.
• 🔺 Utilizing similarity of triangles can accurately locate x1 and x2 distances.
• 😁 Understanding bending moment changes aids in designing structurally sound beams.
• 😥 Knowledge of contraflexure points is essential for structural engineers.
• ❓ Bending moment diagrams provide valuable insights for structural analysis.
• 😥 Precise calculations ensure accurate location of x1 and x2 points.
• 😥 Point-loads and distributed loads impact the bending moment curve.

Questions & Answers

Q: How is a point of contraflexure identified in a bending moment diagram?

A point of contraflexure is where the bending moment changes sign, resulting in zero bending moment, often located using the similarity of triangles method.

Q: What is the significance of locating points of contraflexure?

Locating points of contraflexure helps engineers understand beam behavior more accurately and can aid in designing structures to withstand various loads and stresses.

Q: Why are x1 and x2 distances crucial in structural analysis?

x1 and x2 distances determine the exact locations where bending moment changes sign, influencing the structural integrity and stability of a beam under different loading scenarios.

Q: How does similarity of triangles assist in determining x1 and x2 values?

By establishing proportional relationships between corresponding sides of similar triangles, engineers can calculate x1 and x2 precisely on a bending moment diagram.

Summary & Key Takeaways

• Bending moment diagram shows two points of contraflexure where bending moment changes sign.

• First point x1 located using similarity of triangles as 2.8 meters from point A.

• Second point x2 found to be 0.4 meters from point B using the same method.
