Gears Numerical Problem 1

TL;DR

Solving gear problem with given speeds and diameters to find circular and diametral pitch, pitch circle diameters, center distance, and velocity ratio.

Transcript

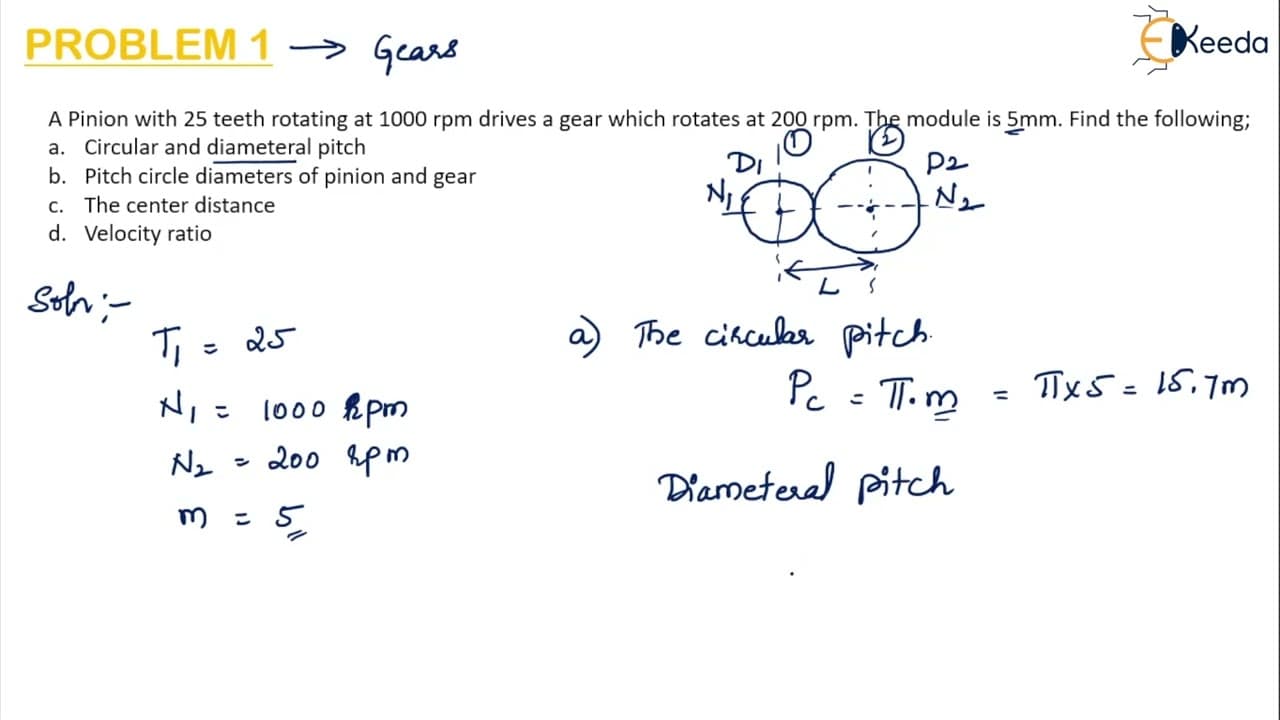

hello students today we will solve a problem on gears okay so in the question they have given opinion with 25 teeth rotating at 1000 rpm drives a gear which rotates at 200 rpm so here they have given a gear and a pinion okay so let me draw a figure so that it will be very clear to understand okay so the pinion is smaller than the gear okay and it h... Read More

Key Insights

• 🤨 Circular pitch calculated using pi times module.
• 🤨 Diametral pitch found by dividing pi by circular pitch value.
• 🦷 Pitch circle diameters determined through module and number of teeth.
• ⚙️ Center distance between gears calculated by averaging pitch circle diameters.
• 🐎 Velocity ratio calculated as speed of pinion divided by speed of gear.
• ⚙️ Understanding gear calculations involves parameters like pitch circle diameters and velocities.
• 🐎 Gear problems require careful consideration of speed relationships and dimensional aspects.

Questions & Answers

Q: How is the circular pitch calculated in this gear problem?

The circular pitch is calculated by multiplying the value of pi with the given module, resulting in a measurement of 15.7 meters as the circular pitch.

Q: What is the formula for finding the diametral pitch in gear systems?

The diametral pitch in gear systems is determined by dividing pi by the circular pitch, providing a value in teeth per millimeter, which in this case is 0.2 teeth per mm.

Q: How are the pitch circle diameters of the pinion and gear computed in this scenario?

The pitch circle diameter of the pinion is obtained by multiplying the module with the number of teeth, while the pitch circle diameter of the gear is calculated using the ratios of speeds and pitch circle diameters of pinion.

Q: How is the center distance between the pinion and gear determined in this gear problem?

The center distance is calculated by averaging the sum of pitch circle diameters of the pinion and gear, providing a value of 375 mm as the center distance.

Summary & Key Takeaways

• Given a gear with 25 teeth rotating at 1000 rpm driving a gear at 200 rpm, calculations for circular pitch, diametral pitch, pitch circle diameters, center distance, and velocity ratio were made.

• Circular pitch calculated using pi times module, and diametral pitch derived as pi divided by the circular pitch.

• Pitch circle diameters of both pinion and gear found through module and number of teeth, center distance calculated, and velocity ratio determined.
