Calibration of end bars ensures the accuracy of measuring instruments through a defined procedure.

Transcript

hello students today we are going to discuss the topic calibration of end bars so first of all let us know what is meant by calibration so calibration is a process of determining checking or rectifying the settings or graduations on a measuring instrument why calibration is required if calibration is not regularly done on the measuring instrument t... Read More

Key Insights

• ❓ Calibration ensures accuracy by rectifying settings on measuring instruments.
• 🤢 A defined procedure involving fixed length bars and comparisons is utilized for end bars calibration.
• ❓ Regular calibration prevents defective readings and maintains instrument accuracy.
• 🤢 The equation method helps calculate length differences and calibrate end bars efficiently.
• 🤢 The process of calibrating end bars improves the precision of measuring instruments.
• 🤢 Calibrated end bars can serve as standards for various other measuring tools.
• 🤢 Comparing bar lengths and differences is essential for accurate calibration.

Questions & Answers

Q: What is the purpose of calibrating end bars?

End bars calibration ensures accurate readings by rectifying instrument settings and graduations, avoiding defective measurements due to inaccuracies.

Q: How is the calibration procedure for end bars carried out?

The calibration process involves comparing 500mm end bars with a fixed 1-meter bar on a surface plate, calculating length differences to ensure accuracy.

Q: Why is it essential to regularly calibrate measuring instruments?

Regular calibration prevents inaccurate readings and maintains the precision of measuring instruments, ensuring reliable data and results in various applications.

Q: Can the calibration method for end bars be applied to other measuring instruments?

The calibrated end bars method can be adapted to calibrate other length standards of the same basic size, ensuring accuracy across various measuring tools.

Summary & Key Takeaways

• Calibration ensures measuring instrument accuracy by rectifying settings or graduations.

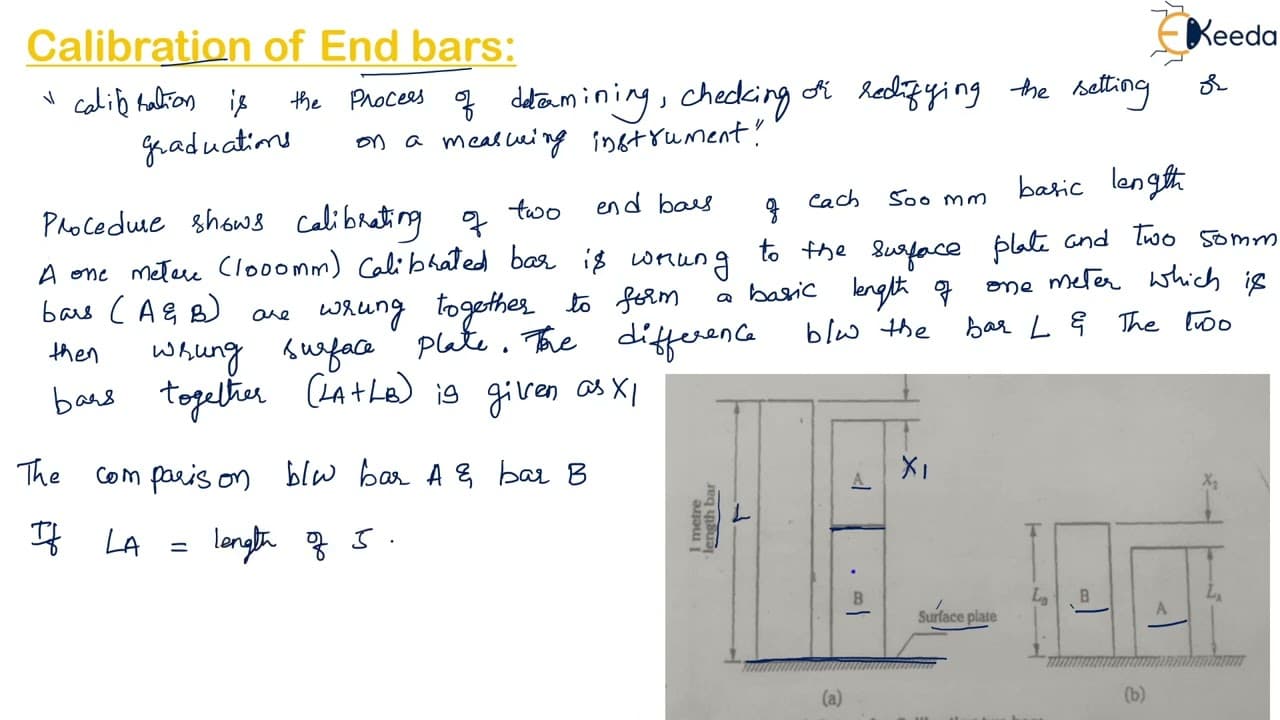

• Two 500mm end bars are calibrated against a fixed 1-meter bar on a surface plate.

• Comparison of bar lengths and differences is used to calibrate end bars accurately.
