Derivation For Diameter of Nozzle For Maximum Transfer of Power - Flow Through Nozzle

TL;DR

Derivation of the equation for calculating nozzle diameter at maximum power transfer in a nozzle.

Transcript

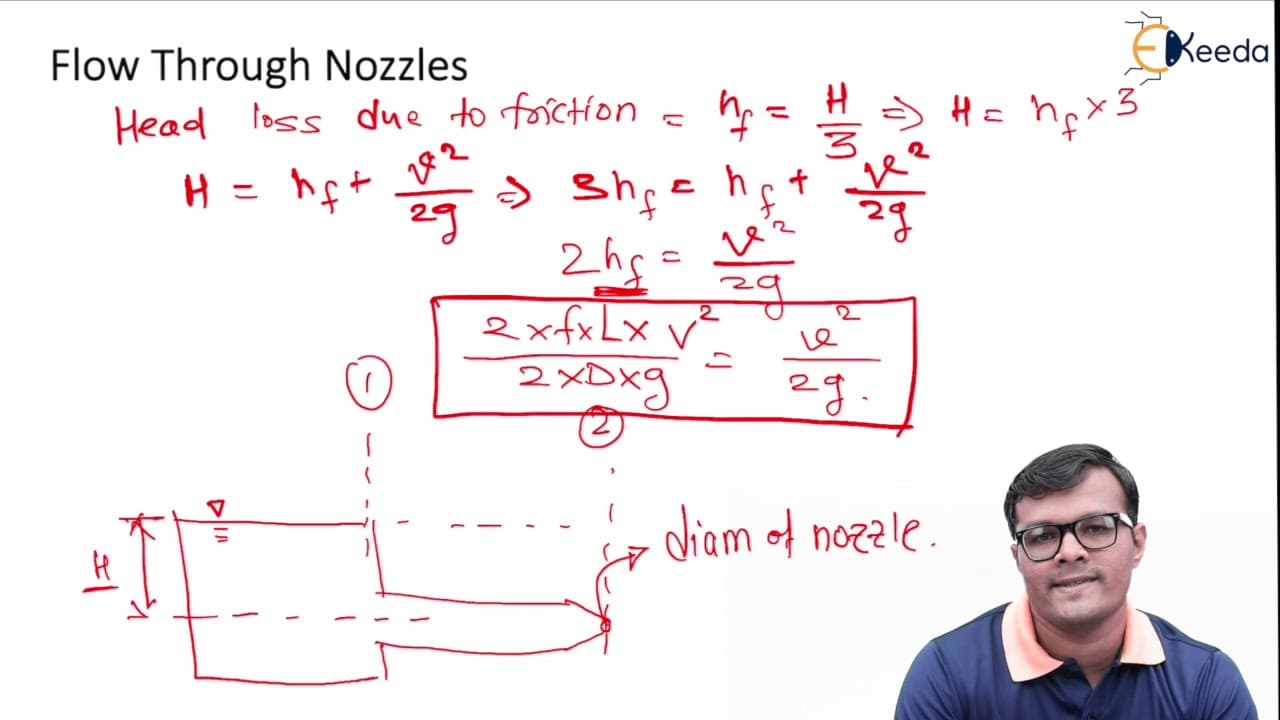

hello friends in this video we are going to see a diameter how to calculate a diameter when maximum power transfer is occurring through a nozzle and we will see our equation related with area ratio also so let's go to the video let's start with the derivation as this is tank having a mouthpiece and a nozzle as shown in figure this is energy associa... Read More

Key Insights

• ✊ Calculating the nozzle diameter at maximum power transfer optimizes system efficiency.
• 🤕 Energy balance equations and head loss considerations are crucial in nozzle diameter calculations.
• ❓ The continuity equation simplifies nozzle diameter calculations by relating velocities.
• 🥳 Area ratios and formulas play a vital role in determining the diameter of a nozzle.
• ❓ Efficiency and performance are enhanced by precise calculations of nozzle diameters.
• 🌸 Frictional losses and flow characteristics impact the sizing of a nozzle's diameter.
• ❓ Utilizing equations and formulas, the nozzle diameter can be accurately calculated for optimum performance.

Questions & Answers

Q: What is the significance of calculating the diameter of a nozzle at maximum power transfer?

Calculating the diameter of a nozzle at maximum power transfer ensures efficient energy utilization and performance of the system by optimizing the flow characteristics.

Q: How is the total energy associated with different sections of a nozzle related to the head loss due to friction?

The total energy balance equation equates the energy at different sections, factoring in head losses due to friction, which is crucial for determining the nozzle diameter and performance.

Q: How does the continuity equation aid in simplifying the formula for nozzle diameter calculation?

The continuity equation helps relate velocities at different sections, simplifying the equation by converting two unknowns into one and enabling a more straightforward calculation process.

Q: What role does the formula for area ratios play in determining the diameter of a nozzle?

The formula for area ratios allows for the calculation of the necessary area changes in the nozzle, ultimately influencing the diameter calculation based on flow characteristics and efficiency.

Summary & Key Takeaways

• Derivation of the equation for finding the diameter of a nozzle under the condition of maximum power transfer.

• Explanation of the energy associated with a tank's mouthpiece and nozzle using equations.

• Utilization of formulas and equations to calculate the area ratios for different sections.
